Hign-concerned Chemical : None
Origin : Mainland China

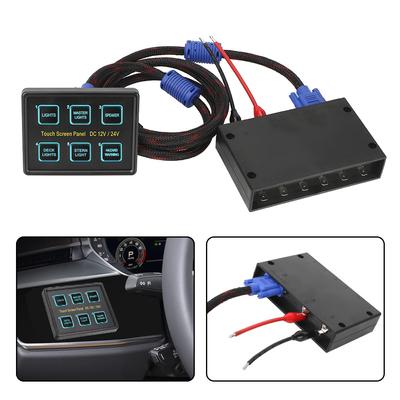

Description:Multi-position installation and wide application. with different brackets, it can be installed in any position you like.Universal 6 switch panel relay system. power up to 6 lights & accessories from one convenient place.Customize your own panel, with 50 universal switch stickers, you can customize your unique personal switch panel according to certain needs.All in one design for your ultimate convenience. This kit has everything you need for installation and use. No need to buy extra parts.Attomatic Dimmable Back light for Driving Safer.On the road or other bright places, the switch panel will be brighter, so you can see it clearly.In the tunnel or other dark places, the switch panel will be dim, reduce the impact on the driver's vision
Features:Input voltage: 9-30V DC
Maximum output power: 720W
Maximum input current: 60A
Control box size: 91 * 66 * 15.5mm
Control box material: aluminum alloy
Relay box size: 160 * 89 * 83mm
Relay box material: ABS
Backlight with automatic adjustment function
Operating temperature: -40~105 ℃
Equipped with overvoltage and overcurrent protection, anti reverse connection protection
Operation setting instructions
1. The button control board is connected to the receiving board on the relay box using a cable. The receiving board is powered on by a DC power supply with a power range of 9-30V. After the power is turned on, the back light of the button control box lights up, and the default background light at the factory is blue;
2. Background light color: blue/green/red/yellow/magenta/cyan/white. Click the OFF/ON button to freely switch the background light color;
3. Select the buttons from 1 # -6 # to turn on or off the corresponding relay. The red light indicates the on state, while the opposite indicates the off state. The button positions 1 # -6 # correspond to the output positions 1 # -6 #;
4. Button mode settings
(1) Press the middle setting button (OFF/ON button) for about 3 seconds in standby mode, and the background light will flash once to indicate that the button setting mode has been entered. The default mode is button mode 1 (self reset mode) setting. Select any one of the buttons 1 # -6 #, and the corresponding red LED indicator will light up. Then press and hold the OFF/ON button, and the background light will flash to confirm the exit. The setting is successful;
(2) Press the middle setting button (OFF/ON button) for about 3 seconds in standby mode, and the background light will flash once to indicate that the button setting mode has been entered. The default mode is button mode 1 (self reset mode) setting. Press the OFF/ON button again, and the background light will flash continuously twice to indicate that the mode 2 (double flash mode) setting has been entered. Select any one of the buttons 1 # -6 #, and the corresponding red LED indicator light will light up. Then press and hold the OFF/ON button, and the background light will flash to confirm the exit. The setting is successful;
(3) Machine default mode 3 (switch mode), switch mode is the default mode and does not need to be set separately;
5. Restore factory settings: Press and hold the OFF/ON button for about 15 seconds, and the background light will turn blue to restore the factory settings;
Package included : 1*Car LED Switch Panel
1 * Fixed bracket
1 * Double sided EVA tape
1 Set fuse
1 Set fixing screw
1 Set installation wrench
1 * Light window small label
1 Set zip ties
1 * Electrical appliances
1 * Extension cable
