GT-24 - The Most Stable & Long-Range (Up to 1100m) 2.4G Wireless Module!
Product Highlights:
Dual interface options: SMD mounting

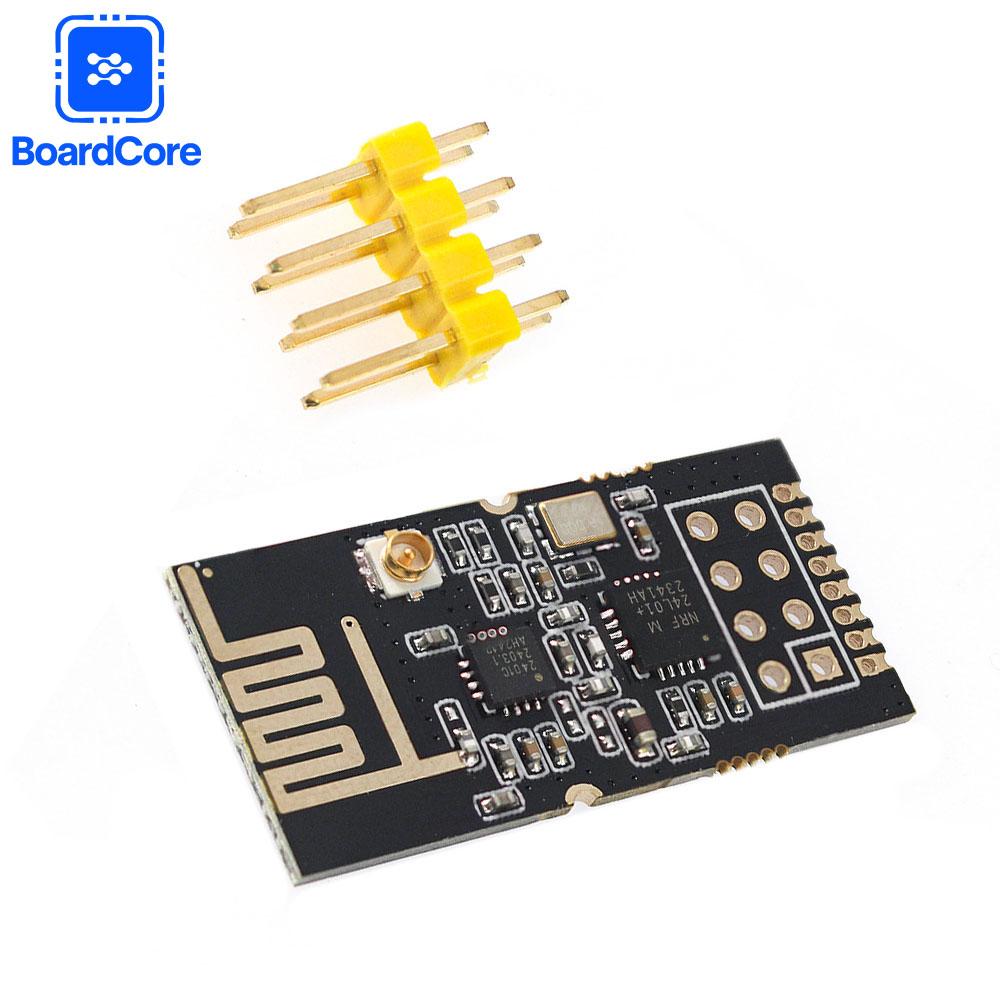

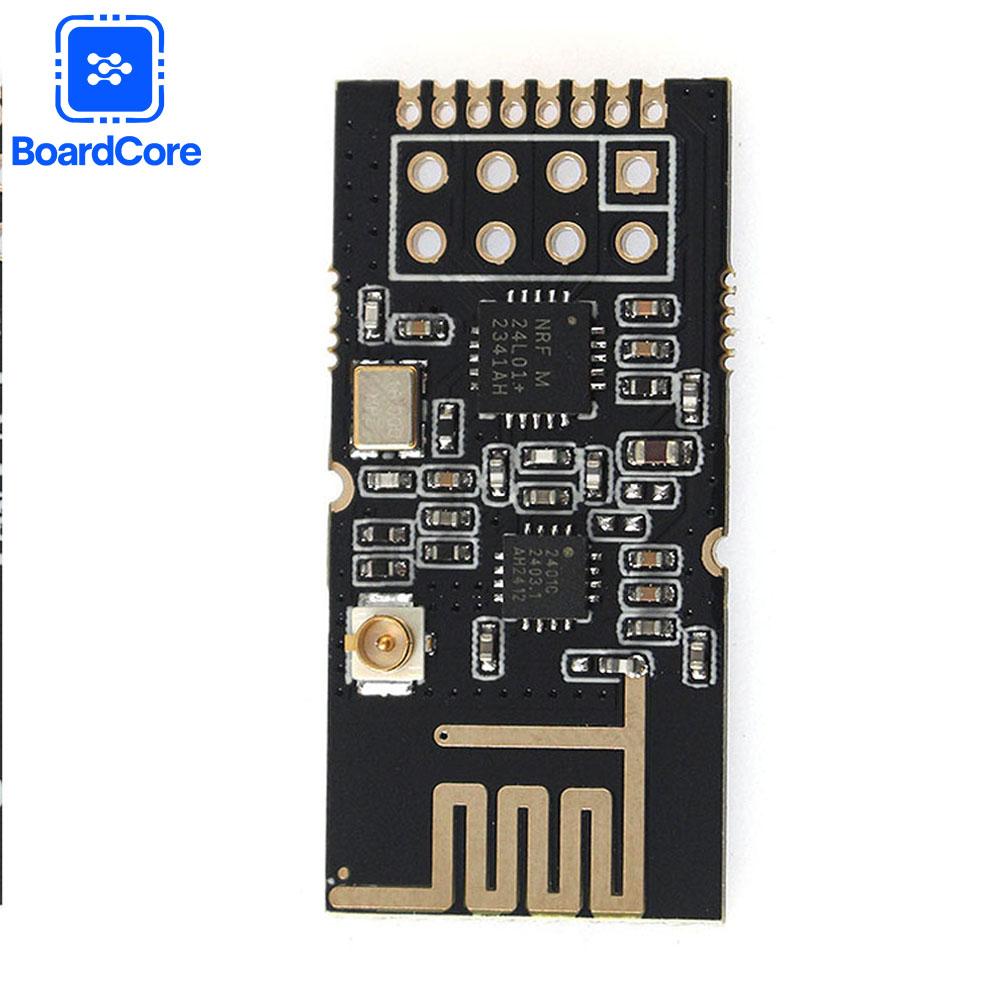

On-board PCB antenna + IPX connector for external antenna
Industry-leading stability and ultra-long transmission range
Module Features:
The GT-24 is a 2.4GHz industrial-grade wireless transceiver module featuring:
100mW high power output
Ultra-fast air data rate up to 2Mbps
Exceptional stability
Utilizes nRF24L01P RF IC (superior to nRF24L01 with higher reliability, more power levels, longer range and lower power consumption)
Integrated RFX2401 PA chip with built-in LNA
10dBm improved receiver sensitivity
Operates in 2.4GHz-2.5GHz ISM band
Excellent spectral characteristics with minimal harmonics and channel interference
Ultra-compact size with Murata original components

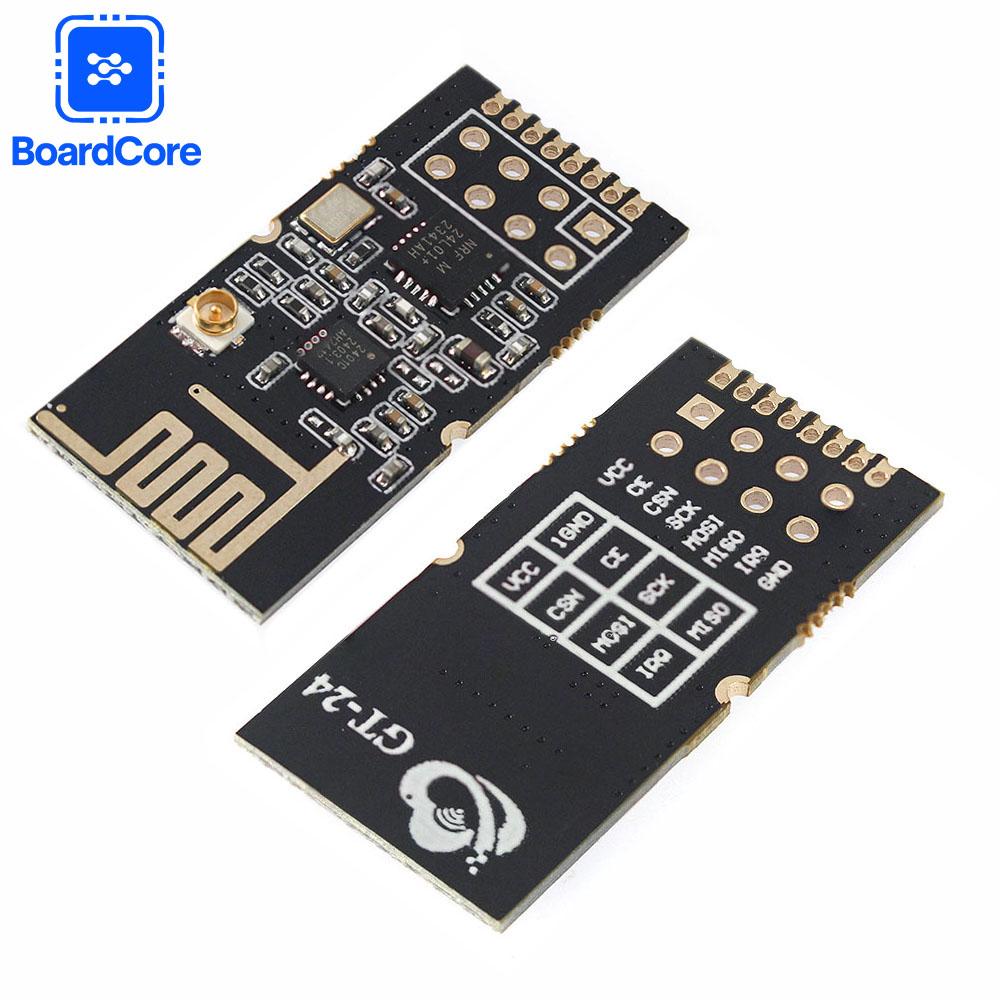

Dual interface design: 2.54mm pin headers + 1.27mm SMD pads
Flexible antenna options: built-in PCB antenna + IPX connector for external antenna
Technical Specifications:
Operating Voltage: 2.0-3.6V
Transmission Power: 100mW
Maximum Air Data Rate: 2Mbps
Operating Frequency: 2.4GHz-2.5GHz
Transmission Distance: Up to 1100m (line-of-sight)

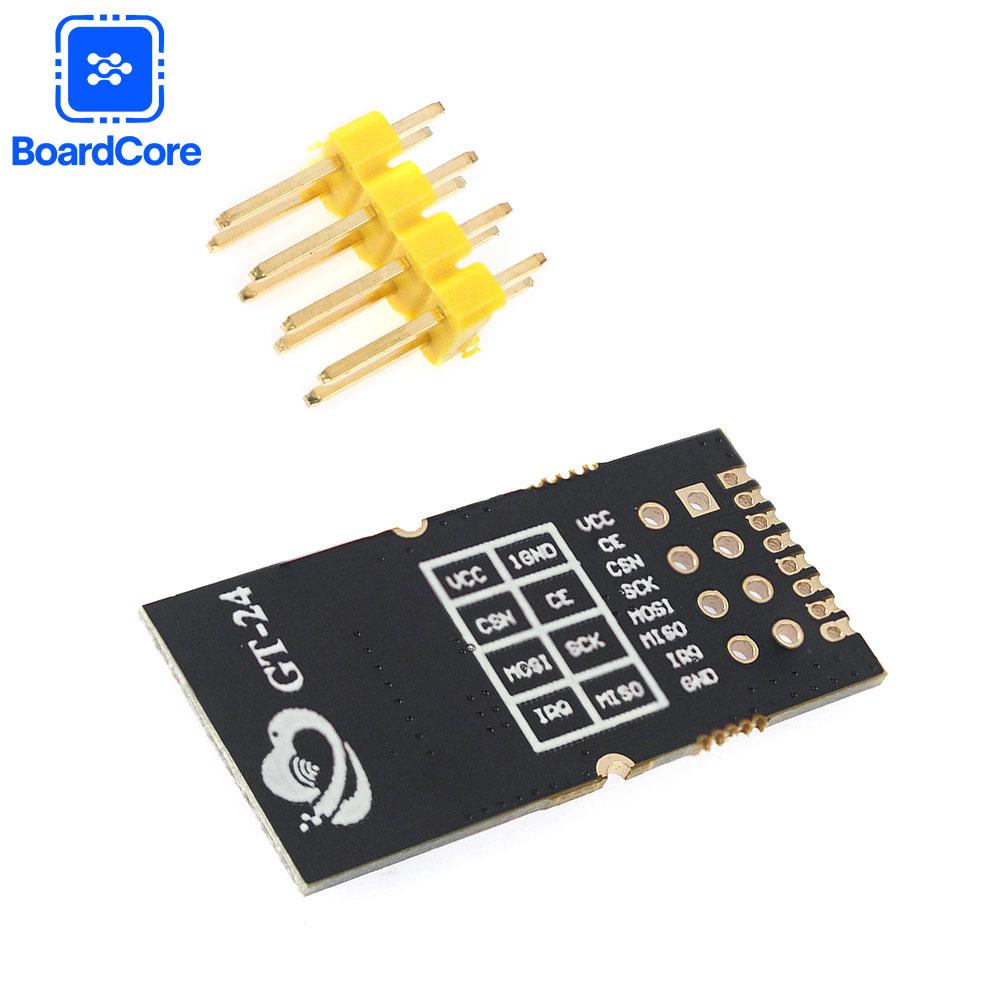

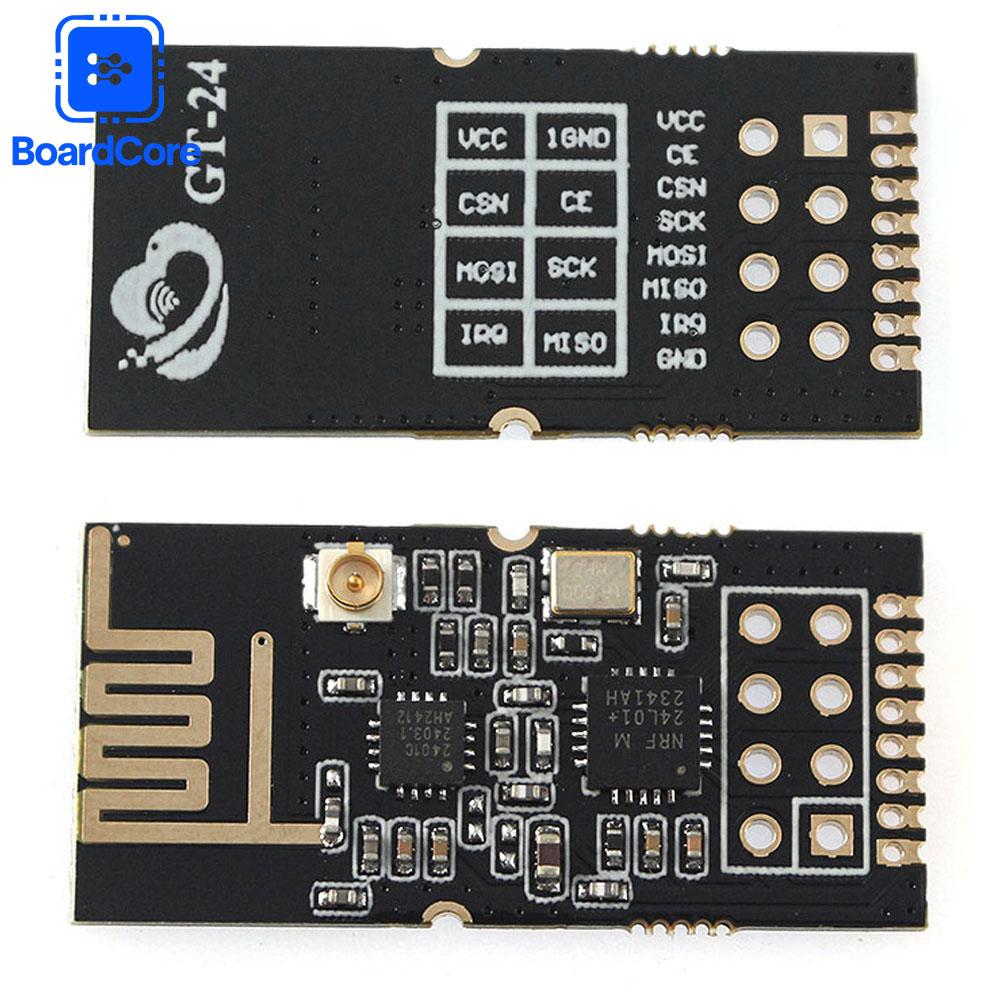

Pin Definition:
VCC - Power supply (2.0-3.6V)
CE - Module control pin (Input)
CSN - SPI chip select (Input)
SCK - SPI clock (Input)
MOSI - SPI data input (Input)
MISO - SPI data output (Output)
IRQ - Interrupt signal output (Active low)
GND - Ground (for power reference)
GND - Ground (for SMD mounting)
GND - Ground (for SMD mounting)
Applications:
Industrial wireless control
Long-range data transmission
IoT devices
Smart home systems
Wireless sensor networks
