Module Features: Convenient for displaying small watches and /hygrometer Small but bright so you look good OLED library for easy display. 0.96" OLED Module IIC/I2C interface, the interface sequence of this product is VCC, GND, SCL, SDA.

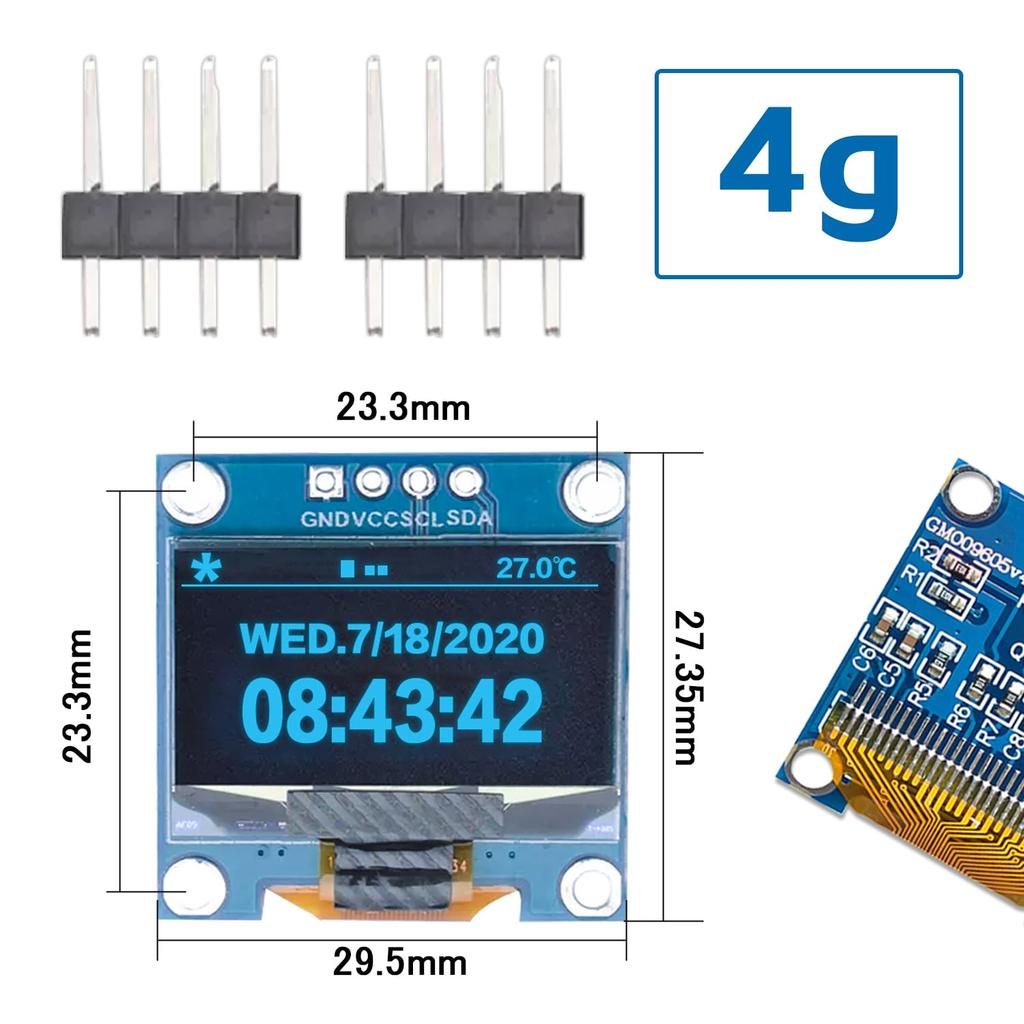

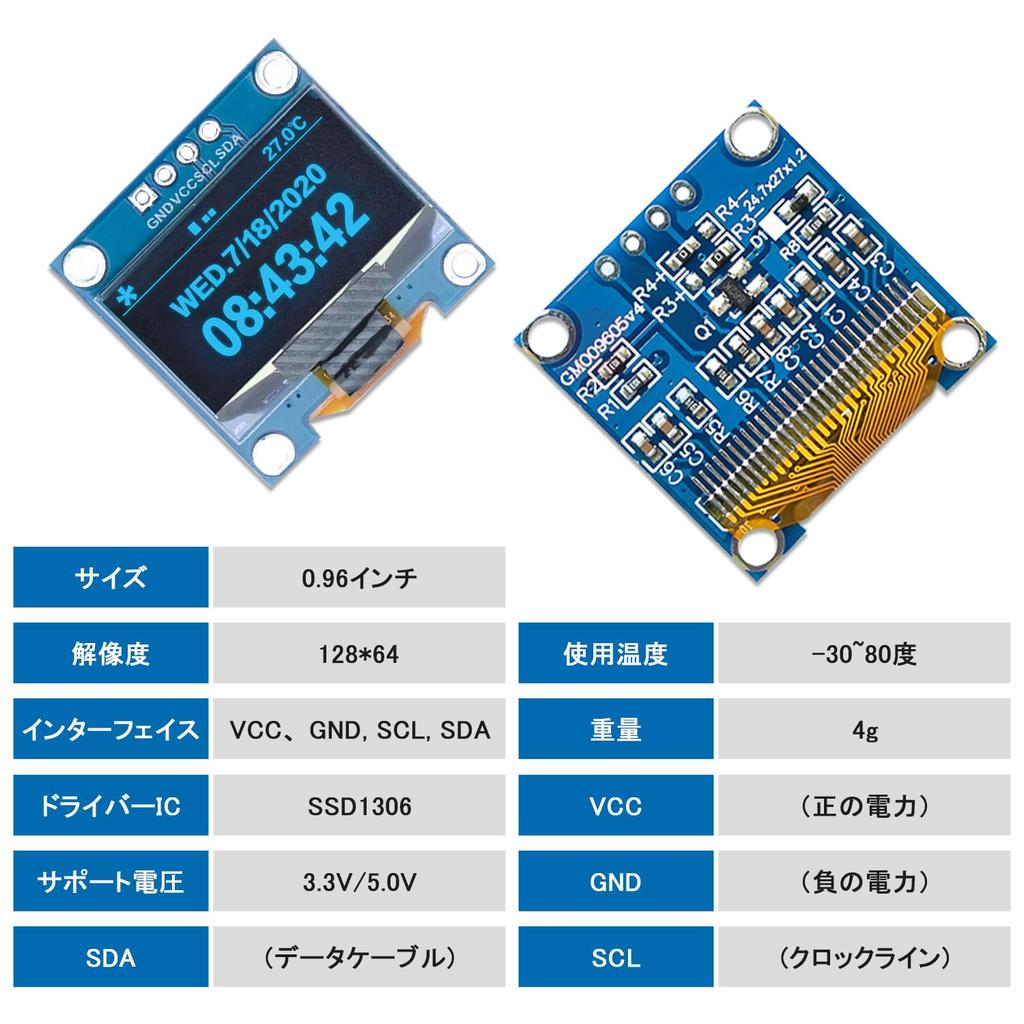

Specifications: Size: 0.96 inches, Resolution: 128 x 64 inches, Power Voltage: 3.3 V - 5 V, Driver IC: SSD1306, Working Temperature: -40 to 85 degrees
Support Platform: Arduino support, 51 series, MSP430 series, STIM32/2, CSR chip
Wiring: VCC: 3.3V-3.5V GND: Power Ground; SCL: CLK Serial SDA: Serial Data 5V (Arduino MEGA2560 compatible), 3.3V (DOIT ESP32 DEVKIT V1 compatible model). Library uses SSD1306Ascii to output text font. It also be used as a backup display for the ATU-100 kit for amateur radios. RaspBerry Pi Pico base be used as a monitor to attach to your own joystick. i2c connection, less wiring
【Useful in Various Occasions】0.96 inch OLED module is widely used in industrial control terminals such as electrical, medical, finance, security, instruments, numerical control equipment, etc
