Mitutoyo Caliper N15r 530 102 N15r 530 102

Explanation by manufacturer

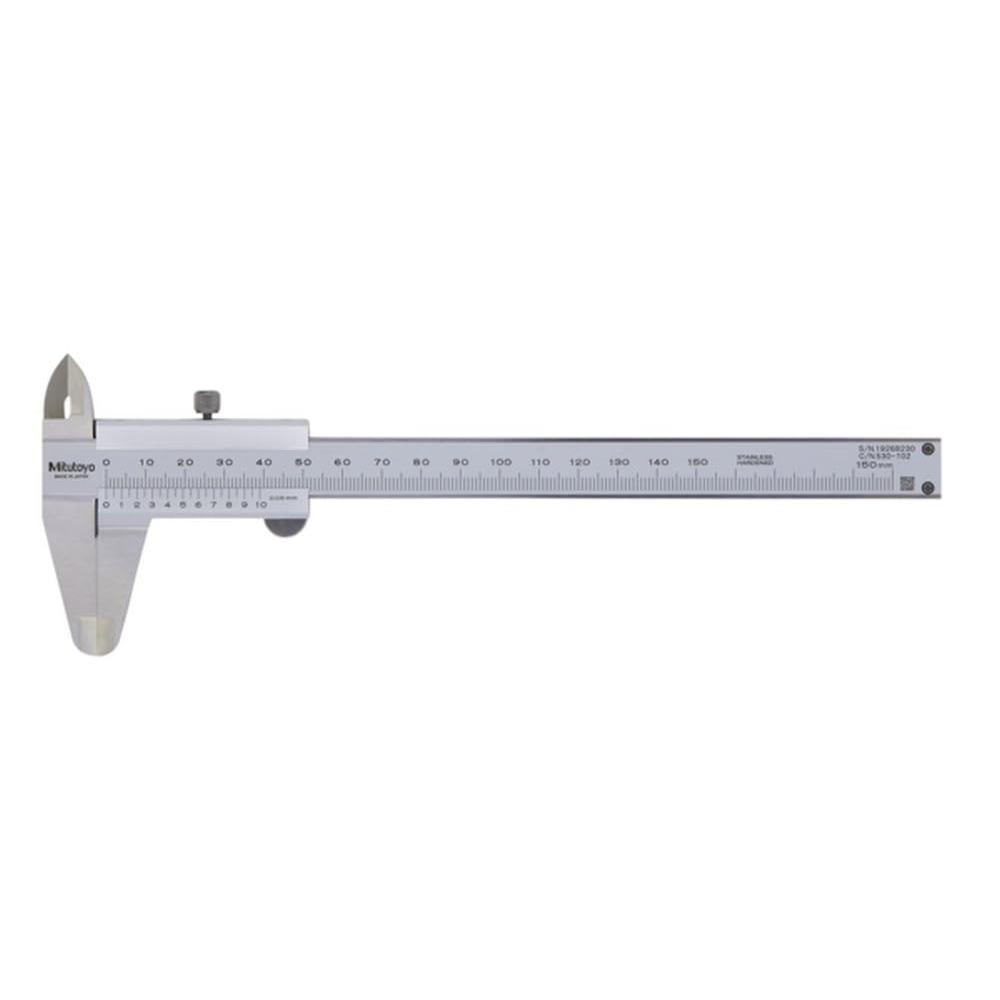

Mitutoyo (Mitutoyo) caliper N15R 530-102

An analog caliper that can measure outside measurement, inside measurement, depth measurement, and step measurement. The vernier scale surface has an inclination (14 degrees), making it easy to read numbers.

ISO113383-1 compliant.

[Measurement Range] 0 to 150 mm.

[Minimum reading value] 0.05 mm.

[Maximum Allowable Error (EMPE)] +-0.05mm.

[Maximum Allowable Error (SMPE)] +-0.07mm.

There is a [depth bar].

[Other] Inside Measurement: +-0.05mm/Step Measurement: +-0.07mm/Depth Measurement: +-0.07mm.

title

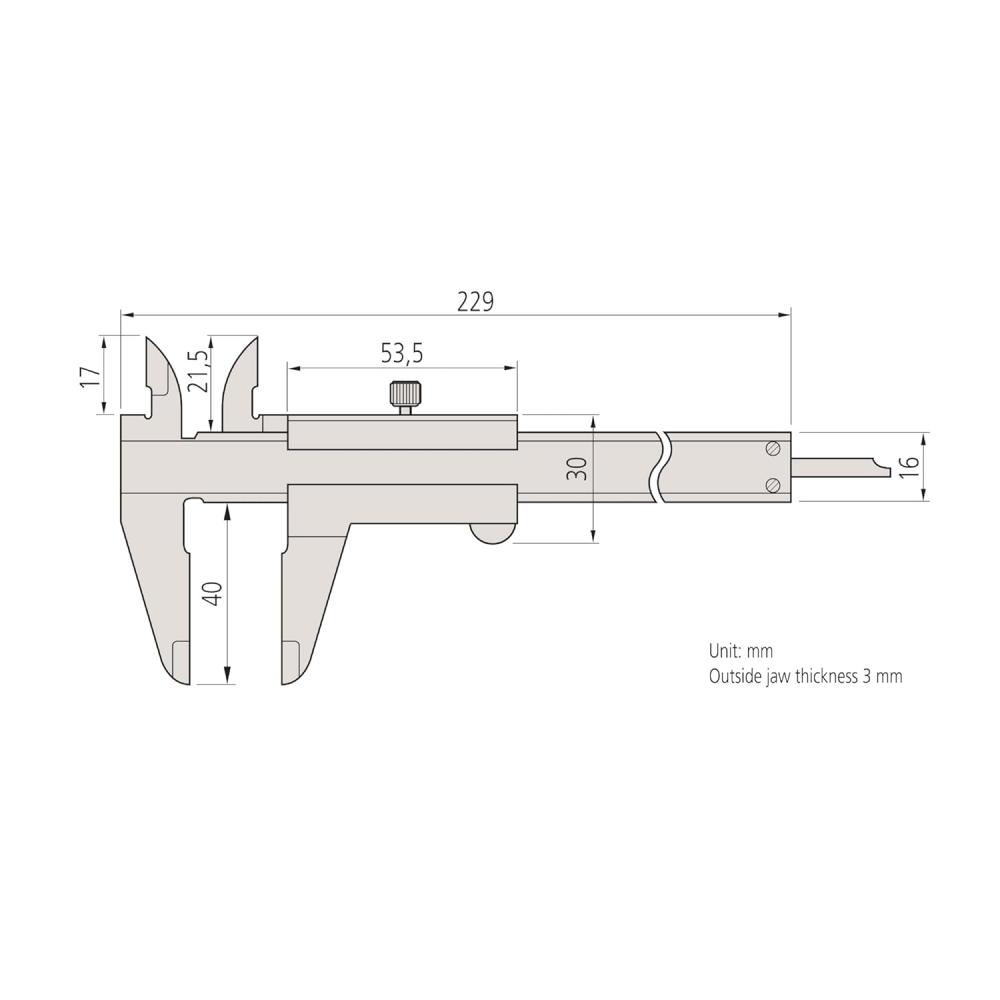

Total length: 229 mm (without depth bar)

Handle width: 16mm

Outer Jaw Thickness: 3 mm

※The image is an image.

{'isProductSummaryAvailable': false, 'device': 'desktop'}

Measurement range: 0 to 150 mm
