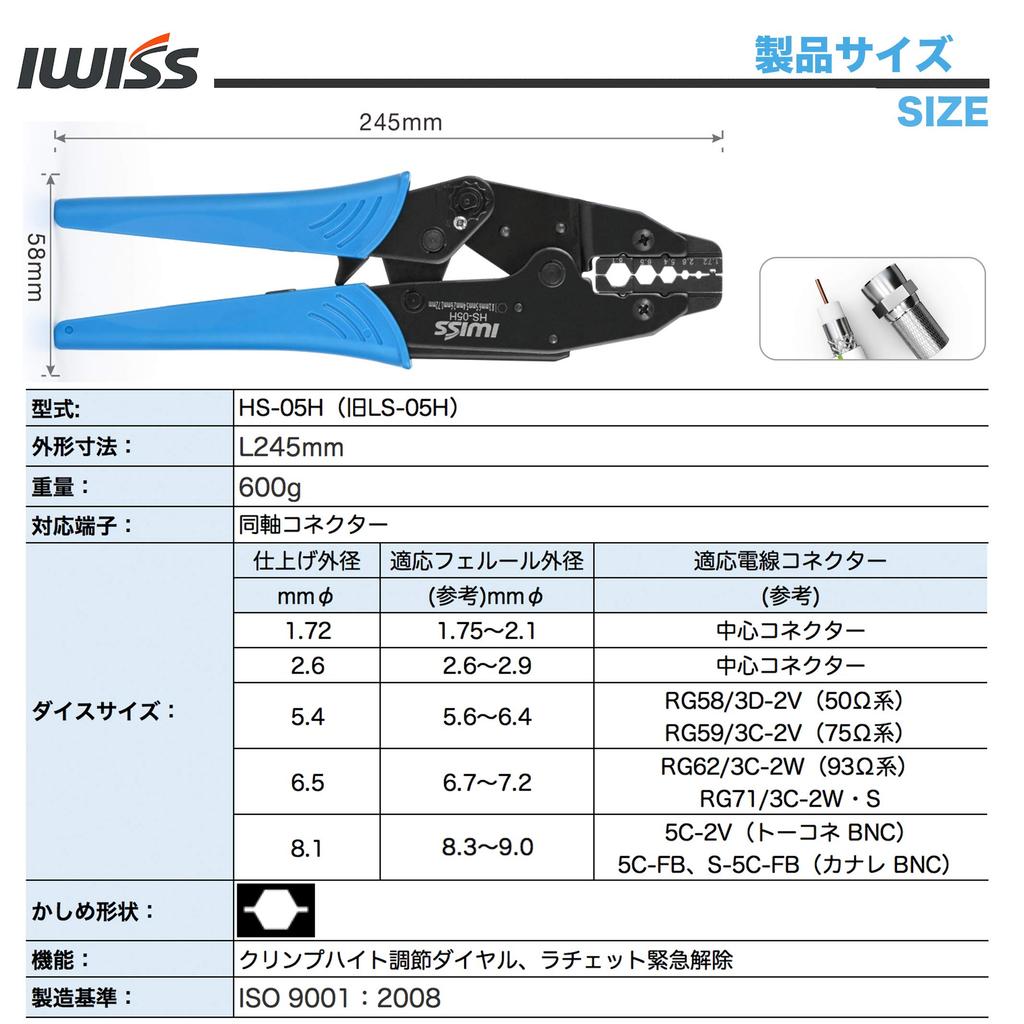

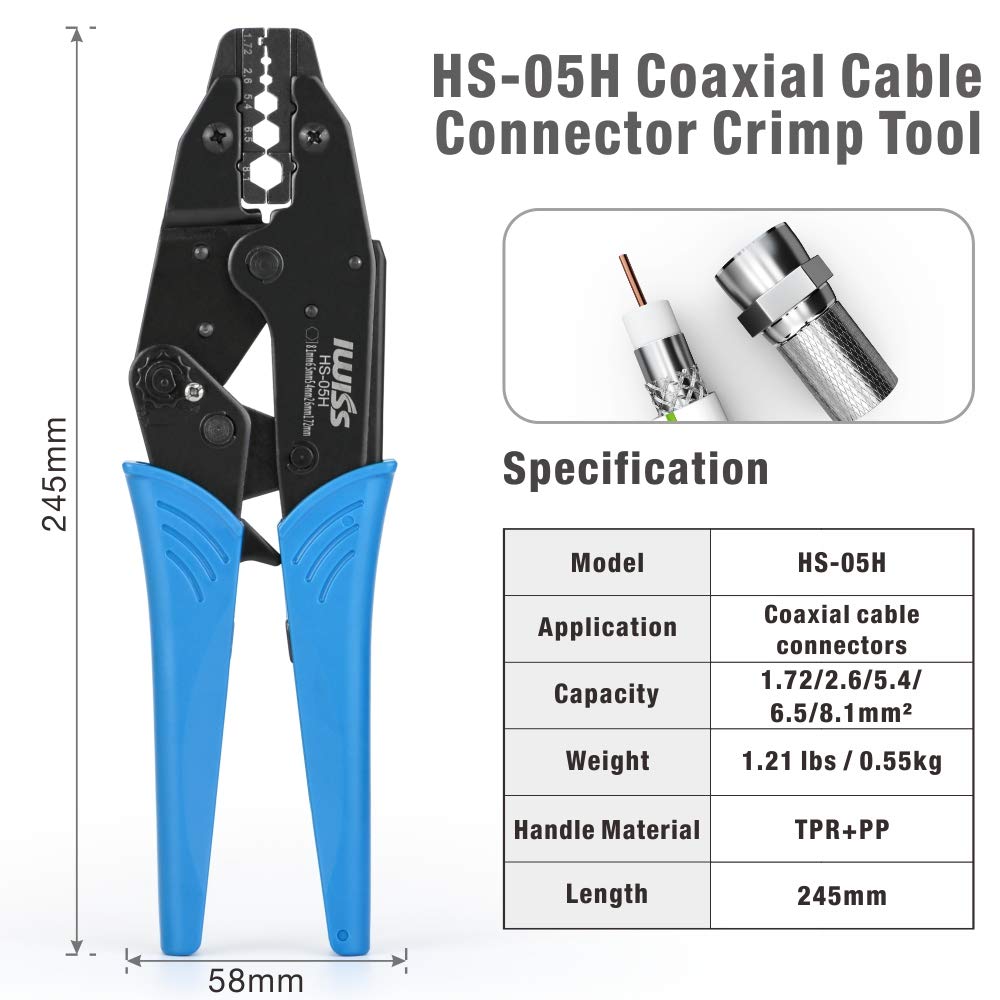

Total length: 240mm; Weight: 600g
Uses: Crimps coaxial connectors RG58/59, RG62/71, 5C-FB/S-5C-FB
Compatible terminals: ① Coaxial connectors (5C-2V (Tocone BNC), 5C-FB, S-5C-FB (Canare BNC), RG62/RG71 (93Ω series), RG58/3D-2V (50Ω series), RG59/3C-2V (75Ω series), RG62/3C-2W (93Ω series), RG71/3C-2W・S) ② Center contact (HEX1.72, HEX2.6)

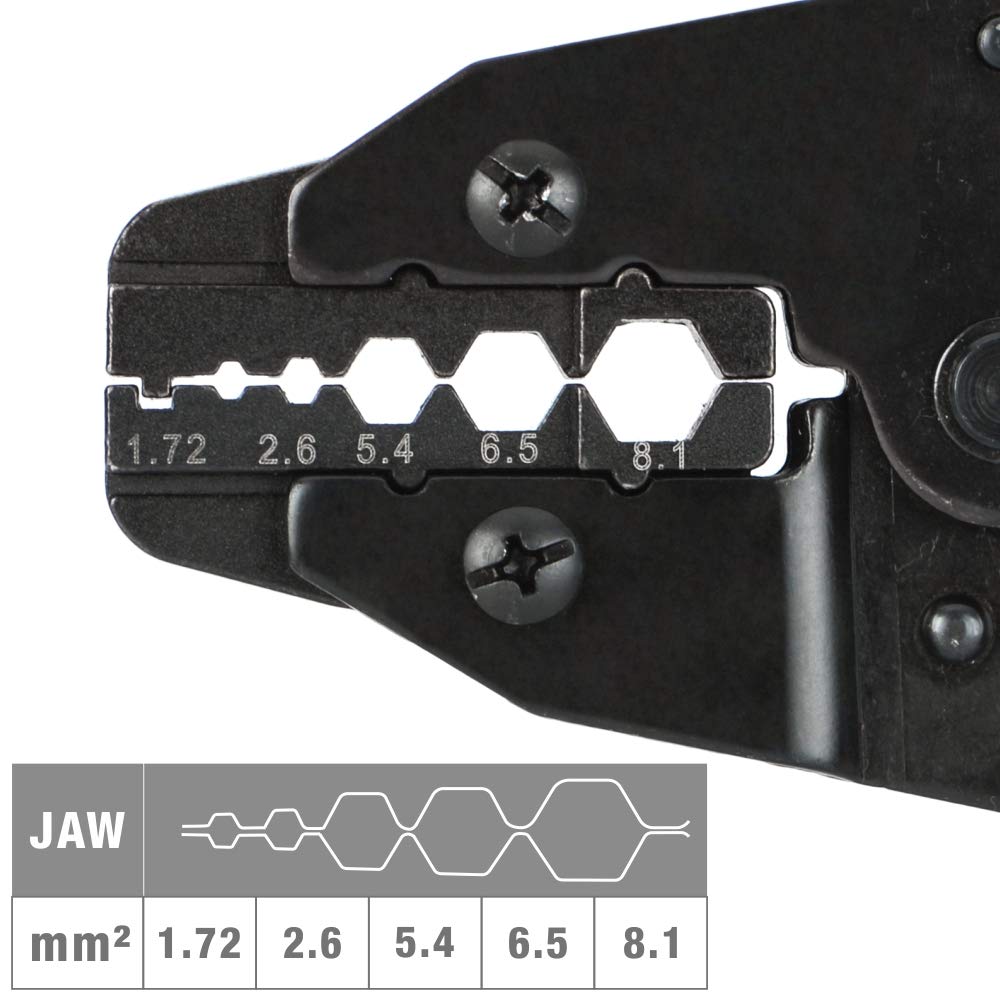

Chair size (HEX size): 1.72 / 2.6 / 5.4 / 6.5 / 8.1 mm
For Canare terminals, it is better to use the Canare dedicated tool. The wall thickness is different from general-purpose terminals, so the crimping shape is not suitable for this model.

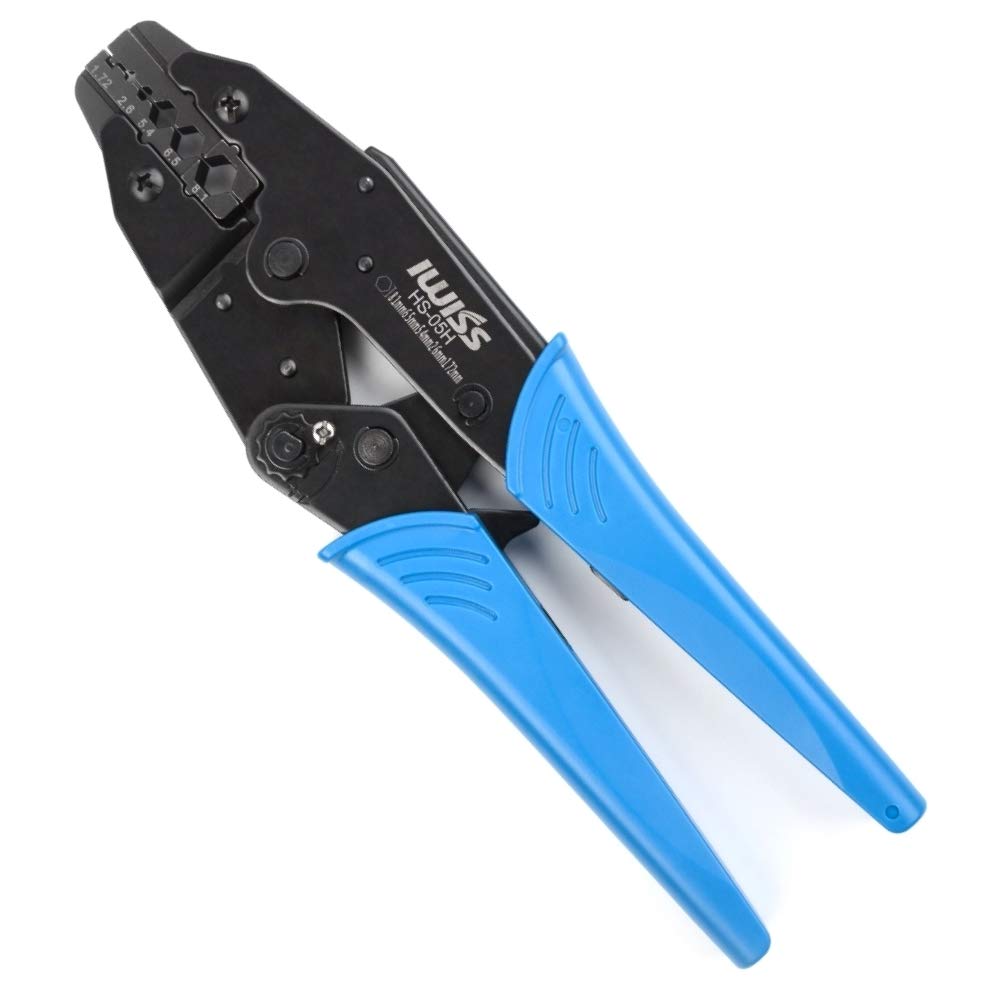

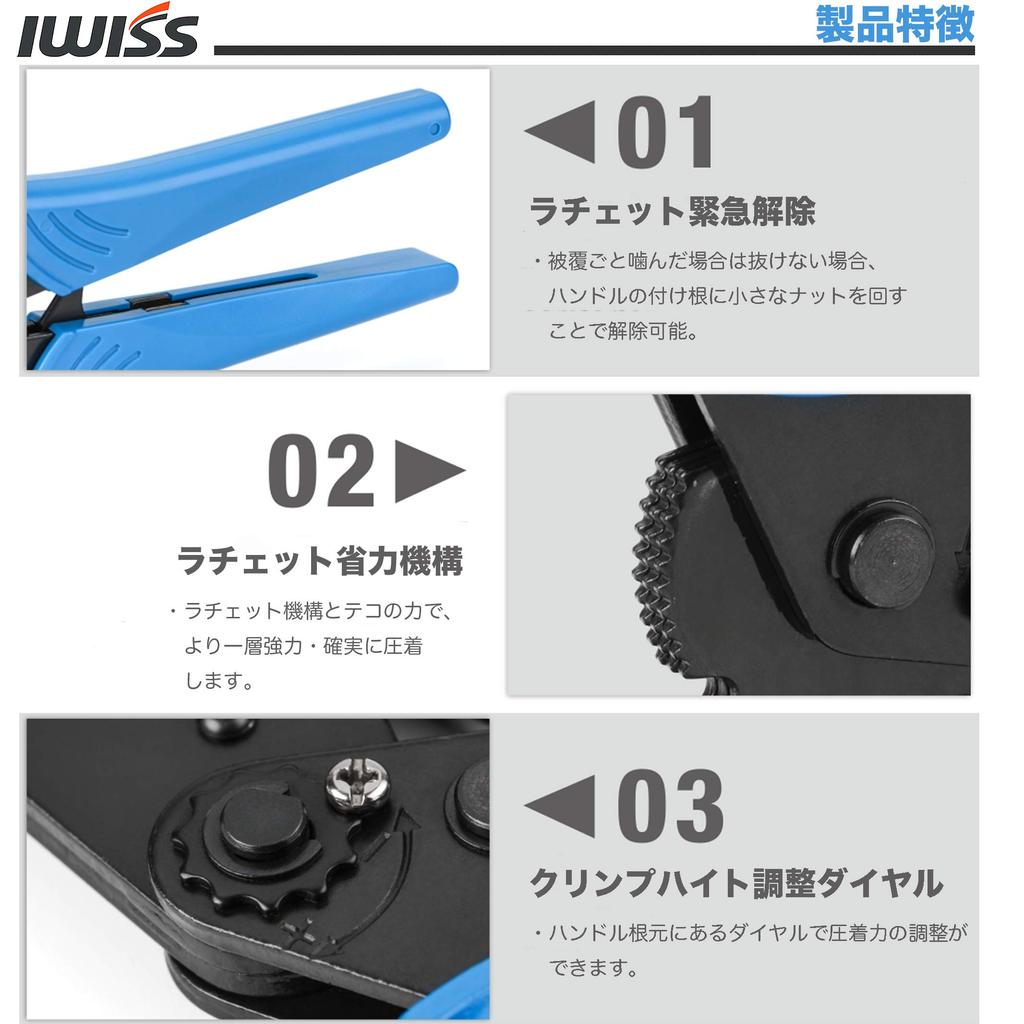

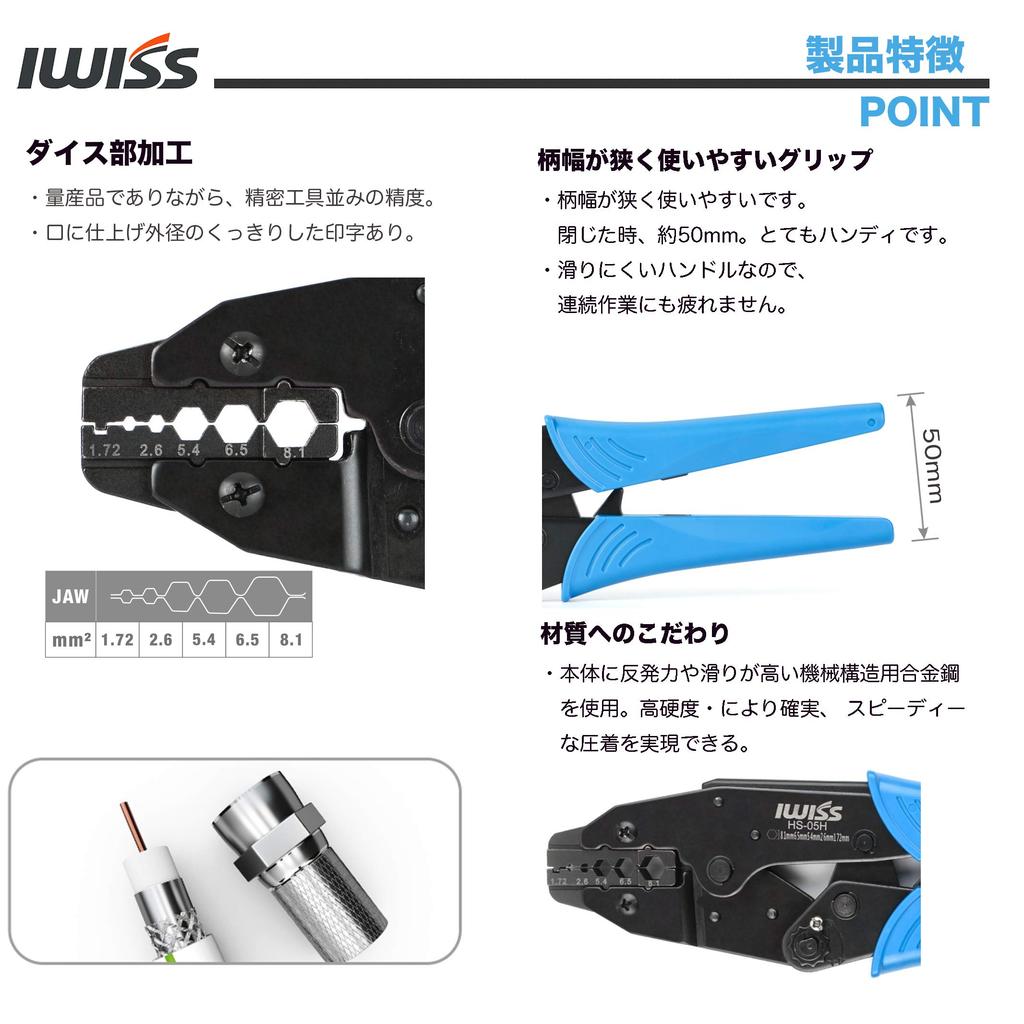

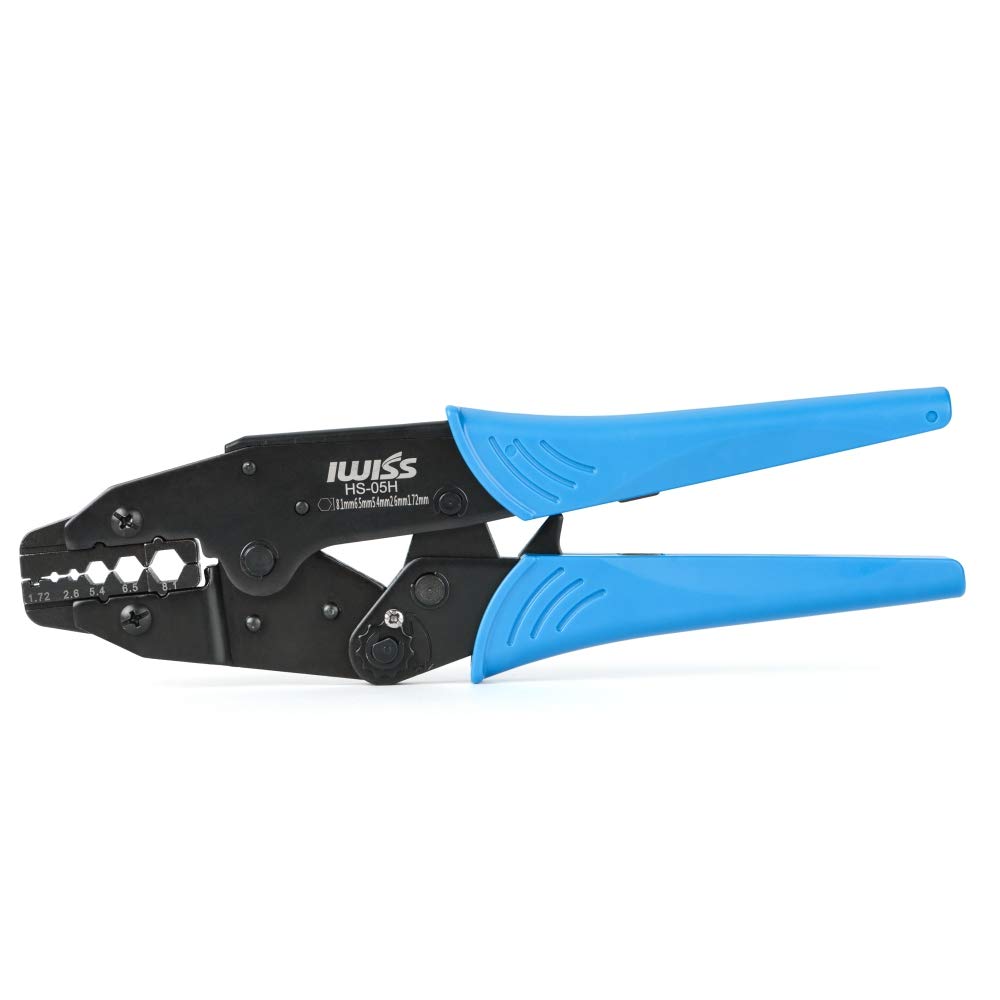

This is a dedicated crimping tool for crimping coaxial cables and BNC/TNC/BNCC connectors used in a variety of fields, including surveillance systems, security cameras, televisions, measuring instruments, LANs, and broadcasting equipment. Light force is used to crimp the center contact and ferrule to the cable and terminal. The ratchet mechanism prevents release until the crimp is fully tightened, eliminating failures such as insufficient crimping. It also features a crimping torque adjustment function.
List of available connectors
Canare Electric
Coaxial connector / Model number compatible cable used die manufacturer
Genuine tools
BNC type BCP-A25L-2.5C2V, 2.5C-2V3CTCD-35CA
BCP-A25FL-2.5CFB3C
BCP-A3L-3C2V, L-3C2VS, 3C-2V,V3-3C, V4-3C, V5-3C3C
BCP-A3FL-3CFB, LS-3CFB, V3-3CFB, V4-3CFB, V5-3CFB3C
BCP-A33L-3C2T, 3C-2T3C
BCP-A5L-5C2V, L-5C2VS, 5C-2V, V3-5C, V4-5C, V5-5C5C
BCP-A5FL-5CFB, LS-5CFB, 5C-FB, S-5C-FB, V3-5CFB, V4-5CFB, V5-5CFB5C
BCP-B25HDL-2.5CHD3C
BCP-B3FL-3CFB, LS-3CFB, V3-3CFB, V4-3CFB, V5-3CFB3C
BCP-B45HWL-4.5CHWS5C
BCP-B53L-4.5CHD5C
BCP-C25L-2.5C2V, 2.5C-2V3C
BCP-C25FL-2.5CFB3C
BCP-C25HDAL-2.5CHD3C
BCP-C33AL-3C2T, 3C-2T3C
BCP-C3BL-3C2V, L-3C2VS, 3C-2V, V3-3C, V4-3C, V5-3C3C
BCP-C3FL-3CFB, LS-3CFB, V3-3CFB, V4-3CFB, V5-3CFB3C
BCP-C53AL-4.5CHD5C
BCP-C5BL-5C2V, L-5C2VS, 5C-2V, V3-5C, V4-5C, V5-5C5C
BCP-LC3L-3C2V, L-3C2VS, 3C-2V, V3-3C, V4-3C, V5-3C3C
BCP-LC3FL-3CFB, LS-3CFB, V3-3CFB, V4-3CFB, V5-3CFB3C
BCP-LC5L-5C2V, L-5C2VS, 5C-2V, V3-5C, V4-5C, V5-5C5C
BCP-PC3L-3C2V, L-3C2VS, 3C-2V, V3-3C, V4-3C, V5-3C3C
BCP-PC3FL-3CFB, V3-3CFB, V4-3CFB, V5-3CFB3C
BCP-PC5L-5C2V, L-5C2VS, 5C-2V, V3-5C, V4-5C, V5-5C5C
BCP-PC5FL-5CFB, L-5CFBA, LS-5CFB, 5C-FB, S-5C-FB, V3-5CFB, V4-5CFB, V5-5CFB5C
BCP-VA3V3-3C, V4-3C, V5-3C3C
BCP-VA5V3-5C, V4-5C, V5-5C5C
BCP-VC3V3-3C, V4-3C, V5-3C3C
BCP-VC5V3-5C, V4-5C, V5-5C5C
MBCP-C25FL-2.5CFB3C
MBCP-C3FL-3CFB3C
F type FP-C25HDL-2.5CHD3C
FP-C3L-3C2V, L-3C2VS, 3C-2V, V3-3C, V4-3C, V5-3C3C
FP-C3FL-3CFB, LS-3CFB, V3-3CFB, V4-3CFB, V5-3CFB3C
FP-C5L-5C2V, L-5C2VS, 5C-2V, V3-5C, V4-5C, V5-5C5C
RCA pin RCAP-C25HDL-2.5CHD3C
RCAP-C3AL-3C2V, L-3C2VS, 3C-2V, V3-3C, V4-3C, V5-3C3C
RCAP-C3FL-3CFB, LS-3CFB, V3-3CFB, V4-3CFB, V5-3CFB3C
RCAP-C5AL-5C2V, L-5C2VS, 5C-2V, V3-5C, V4-5C, V5-5C5C
SP type SPP-C33-CLL-3C2T, 3C-2T3C
