HoldPeak HP-580P Three-Phase Clamp Meter 9999 Display Power Tester Meter In-Rush Current,True RMS,ACV,ACA,KW,KVA,for HVAC

Product Description The HOLDPEAK HP-580P Clamp Meter is a professional-grade tool designed for HVAC technicians, electricians, and engineers, offering True RMS measurements and advanced diagnostics for 1-phase/3-phase systems. With a 9999-count dual-display LCD, it delivers precise readings for AC/DC voltage (up to 600V), current (0.01A–999.9A), power (KW/KVA/KVAR), temperature (-50°C to 900°C), capacitance (1nF–7000µF), and resistance (0.1Ω–99.99MΩ). Ideal for motor in-rush current capture, load balancing, HVAC audits, and electrical safety checks, this meter combines versatility with rugged reliability.

Key Features:

3-Phase Power Analysis: Measure KW, KVA, KVAR, HP, and phase sequence (3P3W/3P4W).

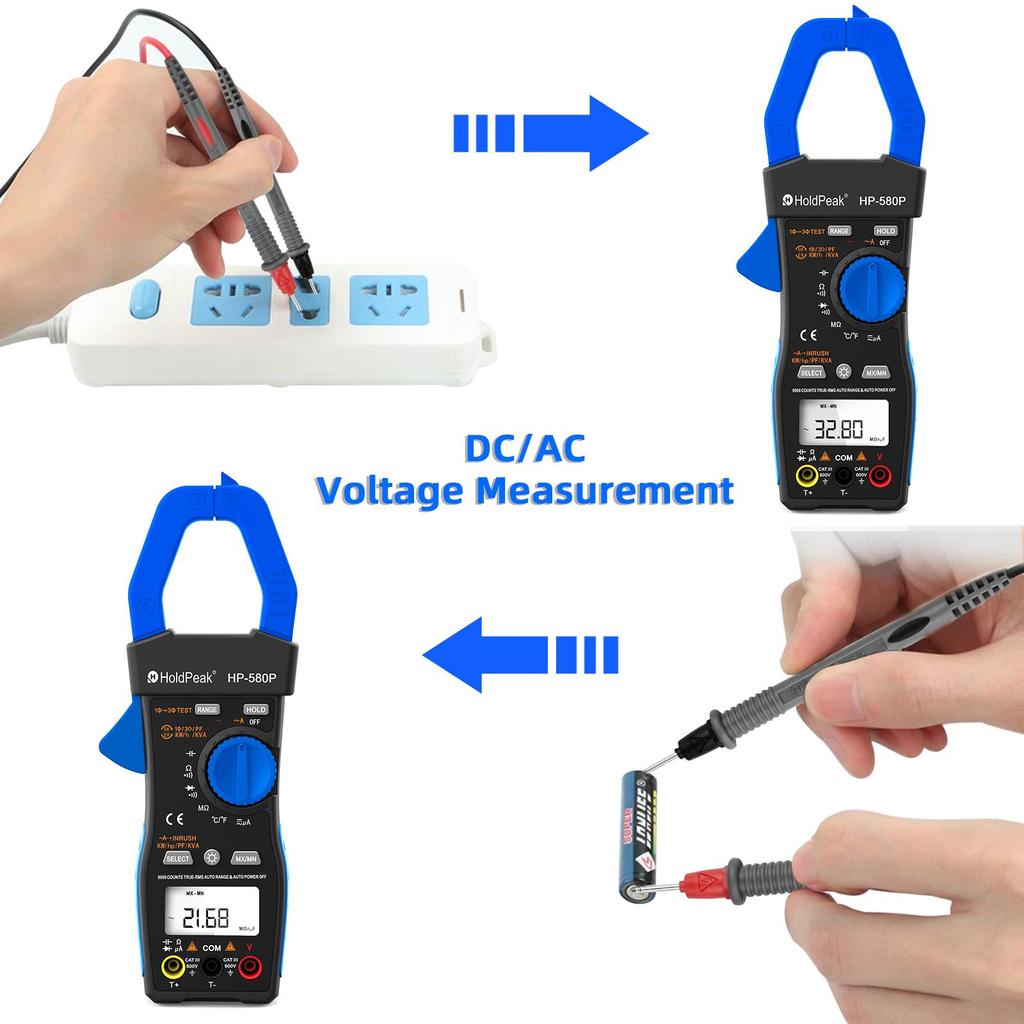

True RMS Accuracy: Auto/Manual ranges for ACV (2mV–600V), ACA (0.01A–999.9A), and DCV.

HVAC-Specific Tools: Test capacitors, monitor temperature with K-type thermocouple, and assess motor efficiency.

Advanced Diagnostics: Capture in-rush current, check energized circuits, and analyze power demand peaks.

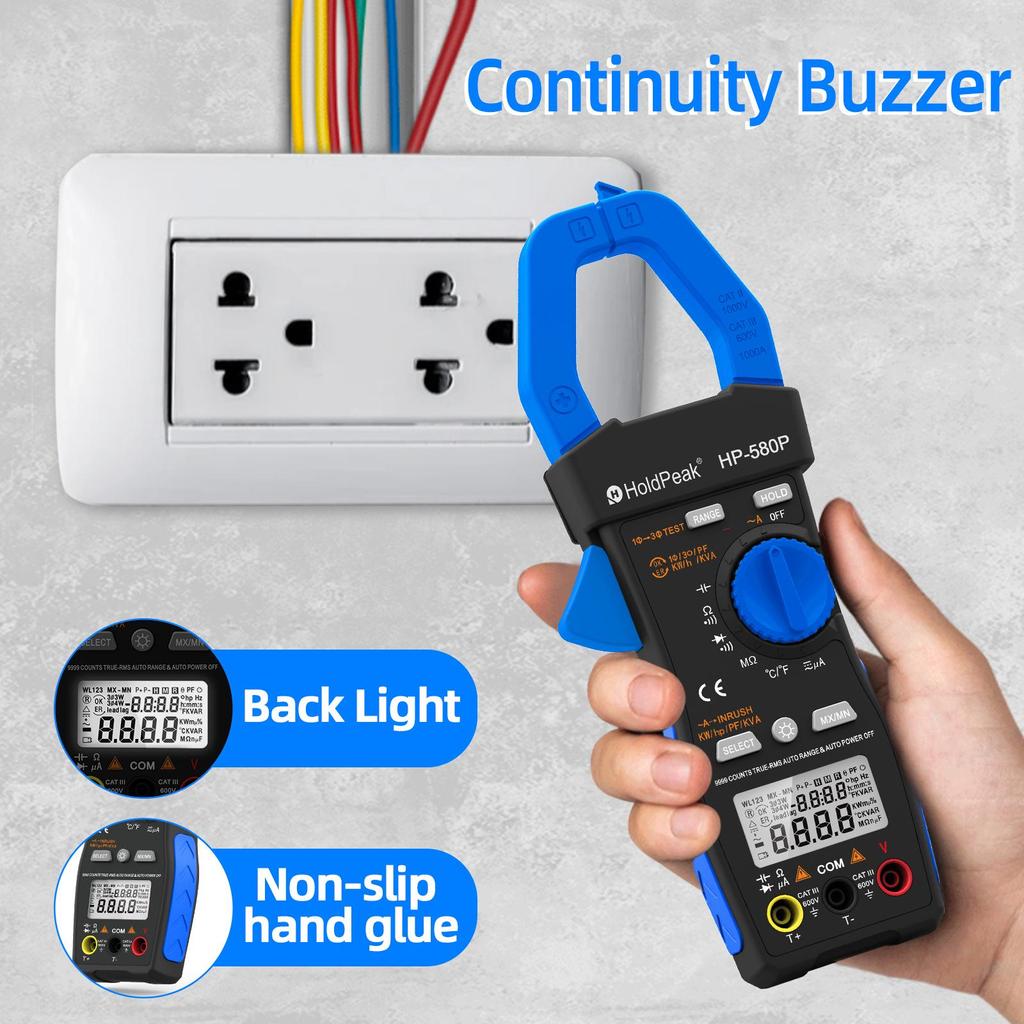

User-Friendly Design: Backlit dual display, data hold, auto power-off, and rugged carrying case.Category Specifications

Display：9999-count dual LCD with unit indicators Voltage (AC/DC)：2.0mV–600.0V (Auto/Manual) Current (True RMS)：0.01A–999.9A (Auto/Manual) Power Measurement：KW (10W–600KW), KVA (10VA–600KVA), KVAR (10VAR–600KVAR), HP (0.01–800HP) Temperature：-50.0°C to 900.0°C / -58.0°F to 999.9°F (K-type thermocouple included) Capacitance：1nF–7000µF Resistance：0.1Ω–99.99MΩ (Auto/Manual) Frequency：40.0Hz–999.9Hz Phase Analysis：3-phase sequence, phase angle (0°–360°), dual KW+HP/PF/KVAR display Safety & Compliance：CAT III 600V, CE certified Power Supply：1.5V AA Batteries (not included) Dimensions：Compact, portable design with carrying case

Included Accessories： Carrying Case × 1 Test Leads × 1 Alligator Clips × 2 Instruction Manual × 1 Rod-Type K Thermocouple × 1

Key Applications HVAC Systems: Diagnose motor/compressor loads, test capacitors, optimize energy efficiency. Electrical Audits: Measure KW/KVA demand, balance 3-phase loads, verify voltage stability. Industrial Maintenance: Capture in-rush current, check contact resistance, troubleshoot circuits.

Why Choose HOLDPEAK HP-580P? ✅ Precision: True RMS ensures accurate readings in noisy environments. ✅ Versatility: From HVAC diagnostics to 3-phase power analysis, all-in-one functionality. ✅ Durability: Rugged design with CAT III 600V safety rating. ✅ Ease of Use: Backlit display, auto-ranging, and intuitive button layout.

Operating Temperature: 0°C-50°C Accuracy Class: 9999 Measuring Voltage Range: 2.0mV-600V Measuring Current Range: 0.01A-999.9A DIY Supplies: ELECTRICAL 1p&3p AC KVA: 10VA to 600.0KVA Frequency Range: 40.0Hz to 999.9Hz Capacitance Range: 1 nF to 7000μF Temperatute Range: -50.0°C to 900.0°C Resistance Range: 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ Diode: 1 mV to 2.00V (continuity <40mV) Features 1: ACA Inrush Current Features 2: 3 Phase sequence Features 3: Dual display A+ Hz, V + Hz Features 4: Data hold mode Features 5: Auto Power Off
