The handheld infrared thermal imager is used for predictive maintenance, equipment troubleshooting and to confirm that equipment is working properly. The LCD screen can display infrared and visible images, and the images can be saved on the SD card. By connecting the SD card to the computer through the card reader, you can copy the images from the SD to the computer, or transfer the images to a smart device installed with the "ThermoviewPro" application. In addition to the above functions, you can also record and play.
Features:
Automatic Calibration: Infrared thermal imaging temperature measurement, quickly capture the highest or lowest temperature and center temperature in the automatic tracking area.
Image Fusion Alignment: The image alignment function can adjust the position of the field of view. Align the field of view and infrared ray to ensure clearer and more accurate image fusion.
Global Scanning Large Screen Temperature Measurement: 2.8 inch LCD color screen with 120*90 infrared resolution. Full range scanning, high and low temperature automatic tracking.
8 Color Palettes Switch with "Scene": Rich software functions, equipped with 8 kinds of pseudo color palettes. Easily switch according to different application scenarios or preferences.
Flashlight Function: High intensity LED flashlight lighting provides illumination for measurement operation in dark environment and night detection is more convenient.
Application Scenario: Infrared thermal imager can be widely used for predictive maintenance, equipment troubleshooting and confirmation of normal operation of equipment.
Specifications:

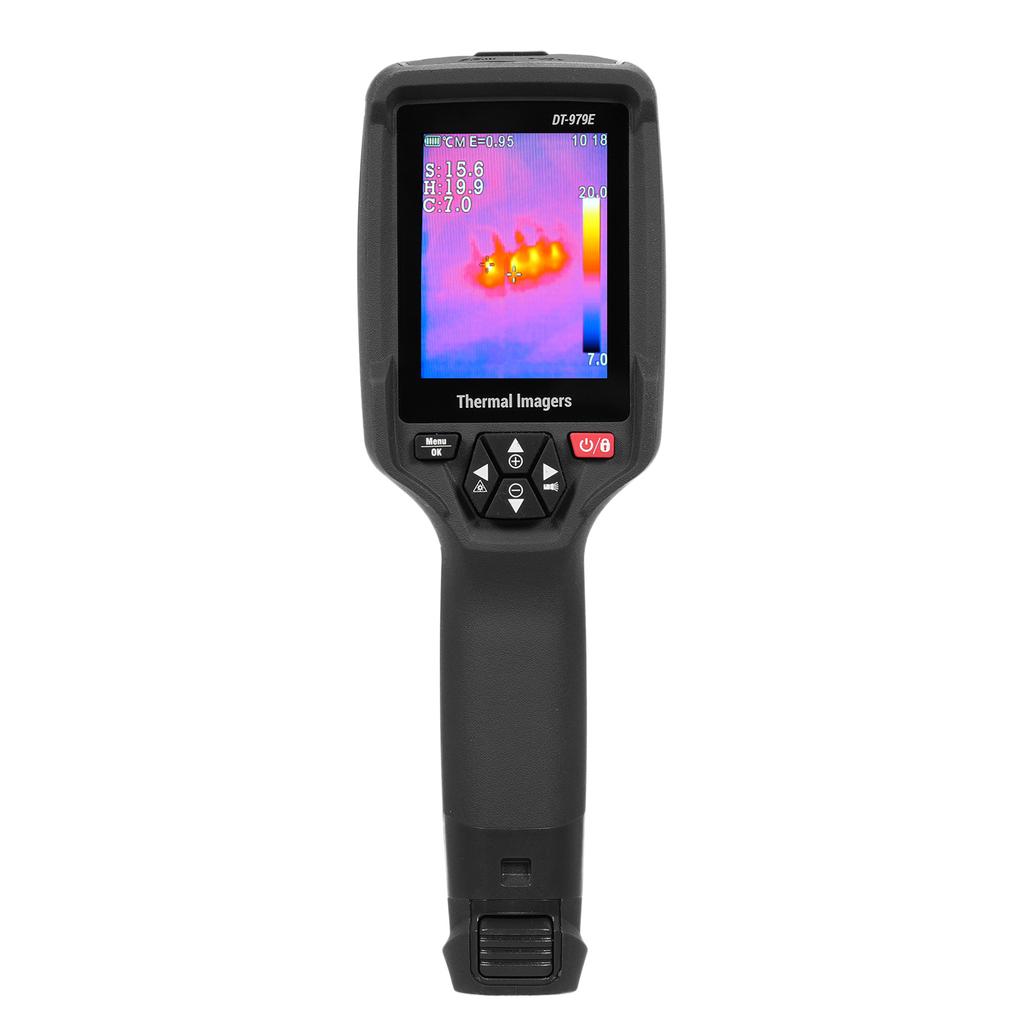

Model: DT-979E
Material: ABS
Optical Parameters
Field AngleMinimum Focus Distance: 50 degrees x37 degrees 0.5m
Thermal Sensitivity (NETD): less than 0.05 celsius @+30 celsius (+86 Fahrenheit )50mK
Image Frame Rate: 50Hz
Focus Mode: Manual
Detector Type Operating Wavelength: Uncooled microbolometer 8-14μm
Infrared Resolution: 120x90 pixels
Image Parameters
LCD Display: 2.8 inch color LCD, 240x320 pixel
Image Mode: Infrared light, visible light, fusion
Palette: Iron red, rainbow, white heat, black heat, brown heat, blue red, hot cold, feather
Measure
Temperature Measurement Range: Range 1: -20 celsius ~150 celsius (-4 Fahrenheit ~302 Fahrenheit )
Range 2: 0 celsius ~550 celsius (32 Fahrenheit ~1022 Fahrenheit )
Accuracy: +-2 celsius (+-3.6 Fahrenheit ) or 2percent of reading (ambient temperature 10 celsius ~35 celsius , object temperature more than 0 celsius )
Measurement Analysis
Point Analysis: Center point
High and Low Temperature Detection: Automatically capture the highest and lowest temperature in the area
Measurement Calibration: Emissivity, reflection temperature
Video Storage
Storage Medium: 8G bytes Micro SD card, 3.4GB internal EMMC
Video Storage Format: Standard MPEG-4 encoding, 240x320@30fps more than 60minutes
Video Storage Mode: Infrared light, visible light or fusion
Image Storage
Image File Format: Standard JPEG or HIR files, including measurement data more than 6000 pictures
Image File Mode: Infrared and visible light
Image Analysis: Bulit-in image analysis tool
Set Up
Set Command: Unit, language, date, time, information
Language: Multinational
Digital Camera
Built-in Digital Camera: 2 megapixel
Built in Digital Lens Data: Field angle 65 degrees
Data Communication Interface
Interface: USB Type-C
USB: Transfer data between the thermal image and the PC
Transfer real-time video between the thermal image and the PC
WiFi: 802.11, transferring image and real time video streams
Power Supply System
Battery: Rechargeable lithium battery, working time up to 4 hours
Input Voltage: DC 5V
Charging System: AC Adapter
Power Management: Automatic shutdown
Environment Parameters
Operating Ambient Temperature: -15 celsius ~50 celsius (5 Fahrenheit ~122 Fahrenheit )
Storage Ambient Temperature: -40 celsius ~70 celsius (-40 Fahrenheit ~158 Fahrenheit )
Ambient Humidity (Working and Storage): 10percent ~90percent
Fall Protection Grade: 2m
Impact Resistance: 25g (IEC60068-2-29)
Seismic Behaviro: 2g (IEC60068-2-6)
Item Size: 230 * 70* 100mm 9.05 * 2.75 * 3.94in
Item Weight: 421g 0.93lb
Package Weight: 788g 1.74lb
Package Size: 32.5 * 17.5 * 12cm 12.79 * 6.88 * 4.72in
Package List:
1 * Thermal Imager
1 * Type-C USB Cable
2 * SD Card
1 * CD
1 * User Manual (English)
