Features:
Brand new and high quality
Power supply for your electronic equipment, you can set the output value according to your system voltage.
Support 2V low voltage input, no fear of low voltage, especially suitable for 18650 high power booster.
Large power, input current limit up to 15A, output current 4A; 3.7V input, the output power can reach 45W, 12V input, the output power can reach 80W.
Protection mechanism, input is connected with anti-burning, input overcurrent protection, input undervoltage protection, output anti-backflow, constant voltage and constant current, can be directly connected to the battery charging.
High efficiency, two-stage filtering low ripple, reliable and stable performance.
Specifications:
Material: Electronic Component
Size:Approx.31.5x80mm/1.24x3.15inch
Input voltage: 2~.
Output voltage: 3~30V
Port input current: 15A max.
Output current: the maximum is 4A (the CC position indicator is a current limiting potentiometer. When the current is limited, the CC indicator lights up and enters the constant current mode; BOOST boost structure, adjusting the limiting current can not directly short-circuit the output terminal, but can be adjusted to the minimum counterclockwise first, and then rotated clockwise to increase the current after connecting the battery).
Output power: under the input of 3.7V, the maximum is 45W;; Under 12V input, the maximum power is 80W;; Output ripple: two-stage filtering, low ripple output!
Conversion efficiency: 82~95%.
Input overcurrent protection: 15A fuse.
Note:
1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Thanks for your understandings.
Package includes:

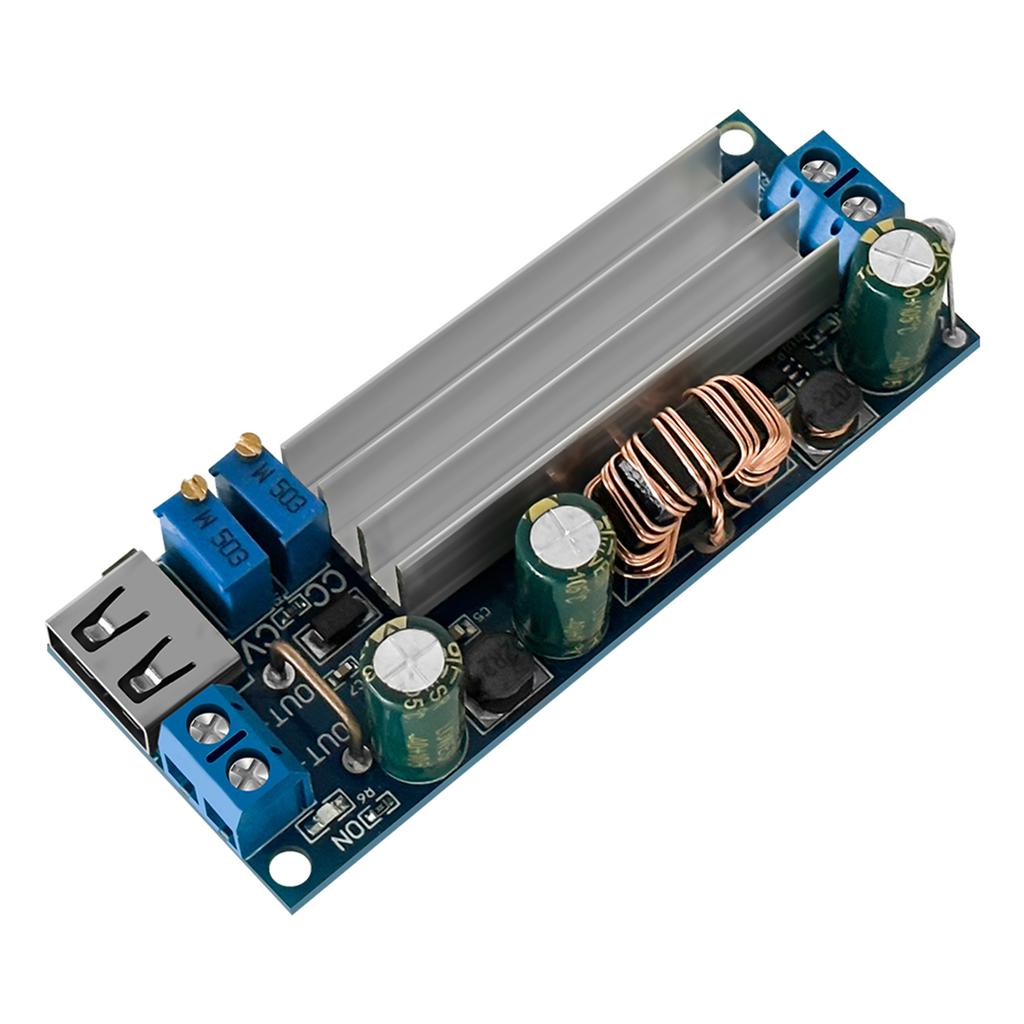

1x Boost Module
