Description:
brand new and high quality
Feature:
Remote distance receiving, has stable , good signal and sensitive response.
It can be controlled remotely, making life er and more convenient.
It is a new type of for , can control one or more light lamps indoors, has stable .
It is applicable to ( door, glass door, etc), home light lamps, curtains and so on.
Specifications:
Item Type: Wireless Controller Kits
Material: ABS

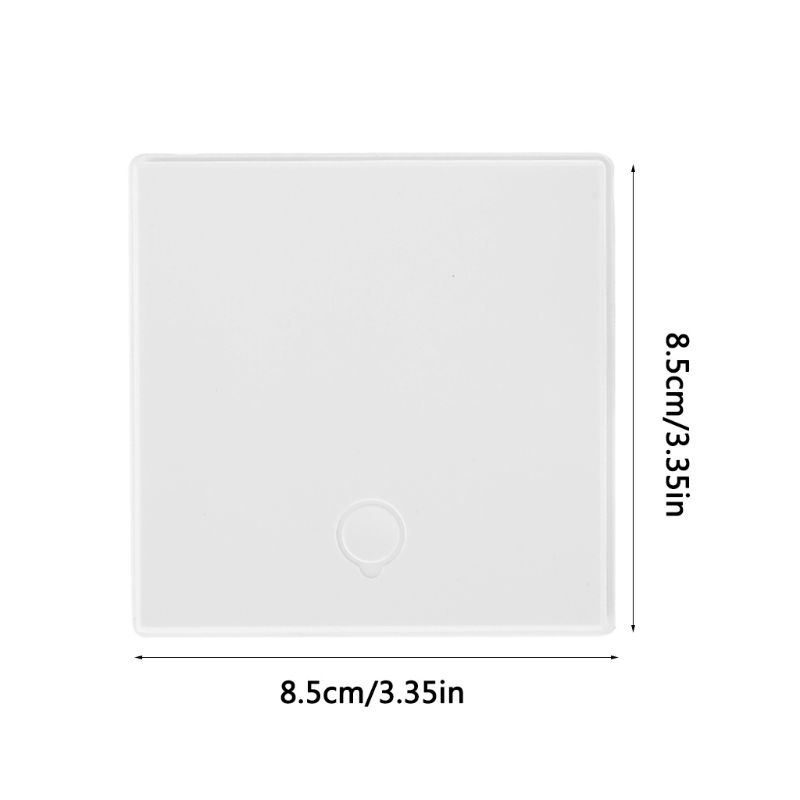

Size: 85x8.5cm/33.4x3.3in
Color: White
Voltage: DC12V
Working frequency: 433mhz
Control : self-lock, jog
load: 500W(Incandescent lamp), 350W(Fluorescent lamp)
Static power consumption: less than 1W
Quantity: 1 PC
Working :
Jog: Press the coding for key of the controller board once, LED indicator light will h once. After the light is on, press the needed coding for key of the remote control, the LED indicator light of the controller board will h three times continuously, then the coding is successful.
Self-lock: Press the coding for key of the controller board twice, LED indicator light will h twice. After the light is on, press the needed coding for key of the remote control, the LED indicator light of the controller board will h three times continuously, then the coding is successful.
Clearing:
Controller wiring, power on, then clear code. Press the learning for key on the controller board 8 times continuously, it will automatically clear all learning codes of the remote control. After clearing, the remote control with the successful learning code before will not be controlled again.
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

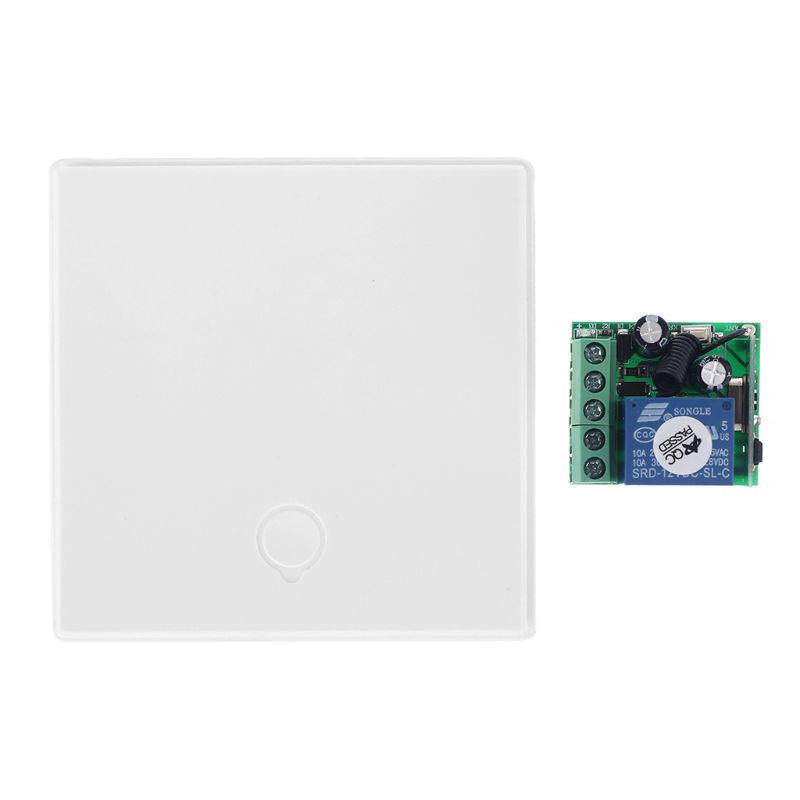

Package Includes:

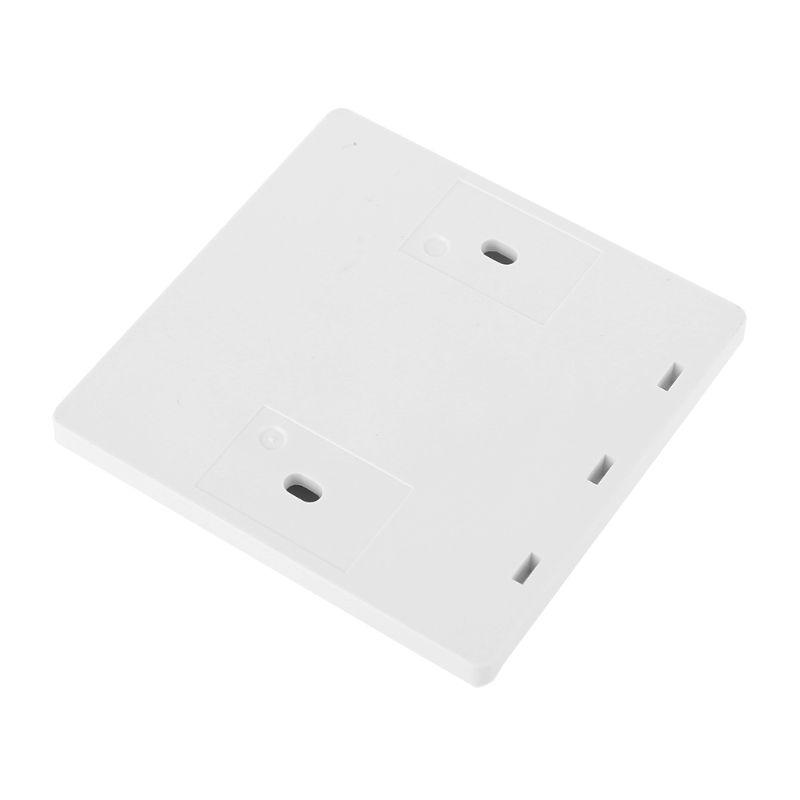

1 Wireless Controller

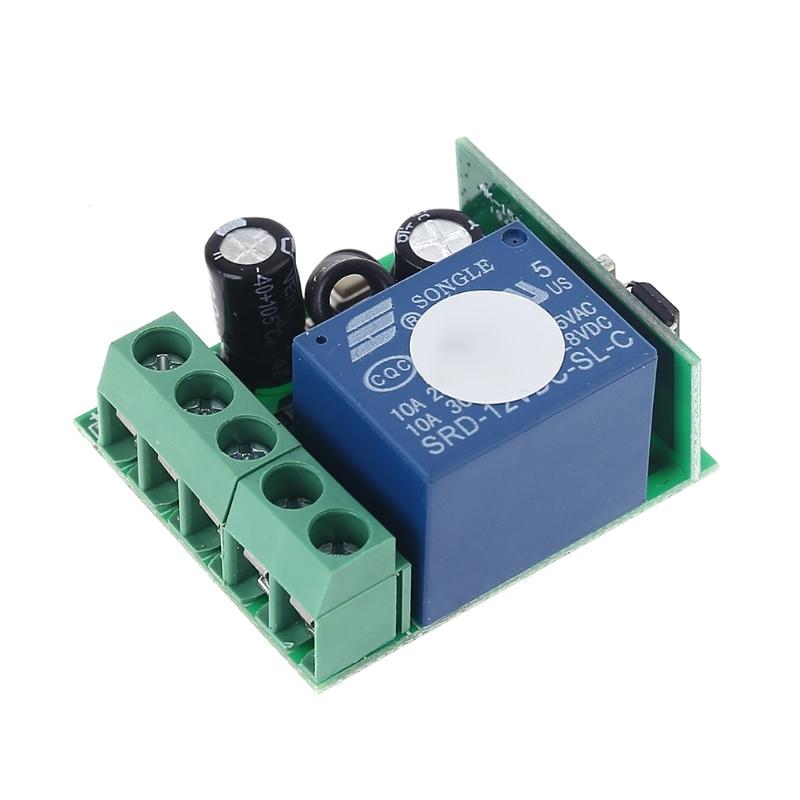

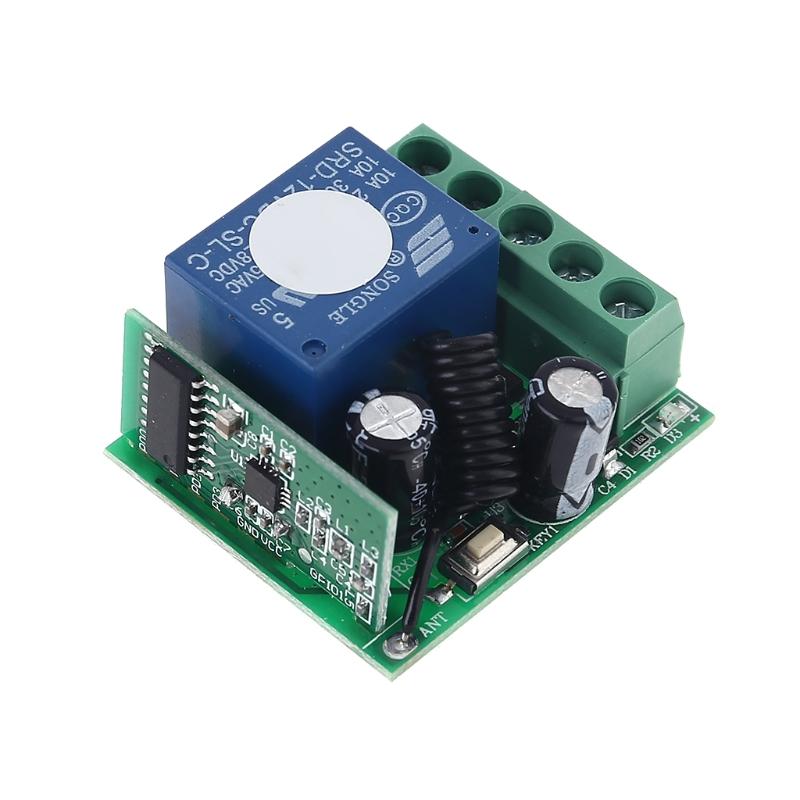

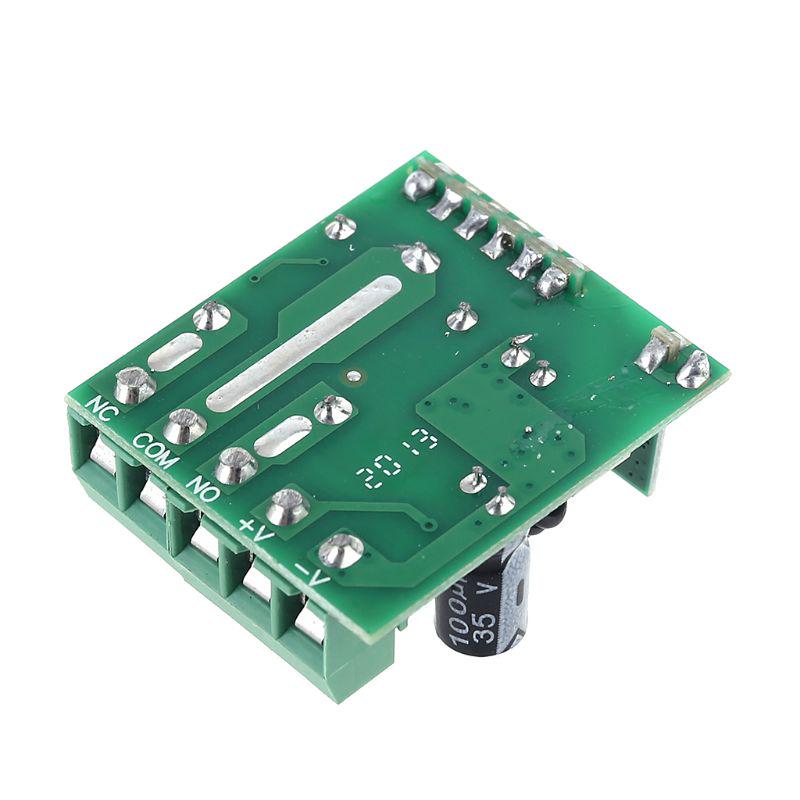

1 Receiver Module
