Feature:

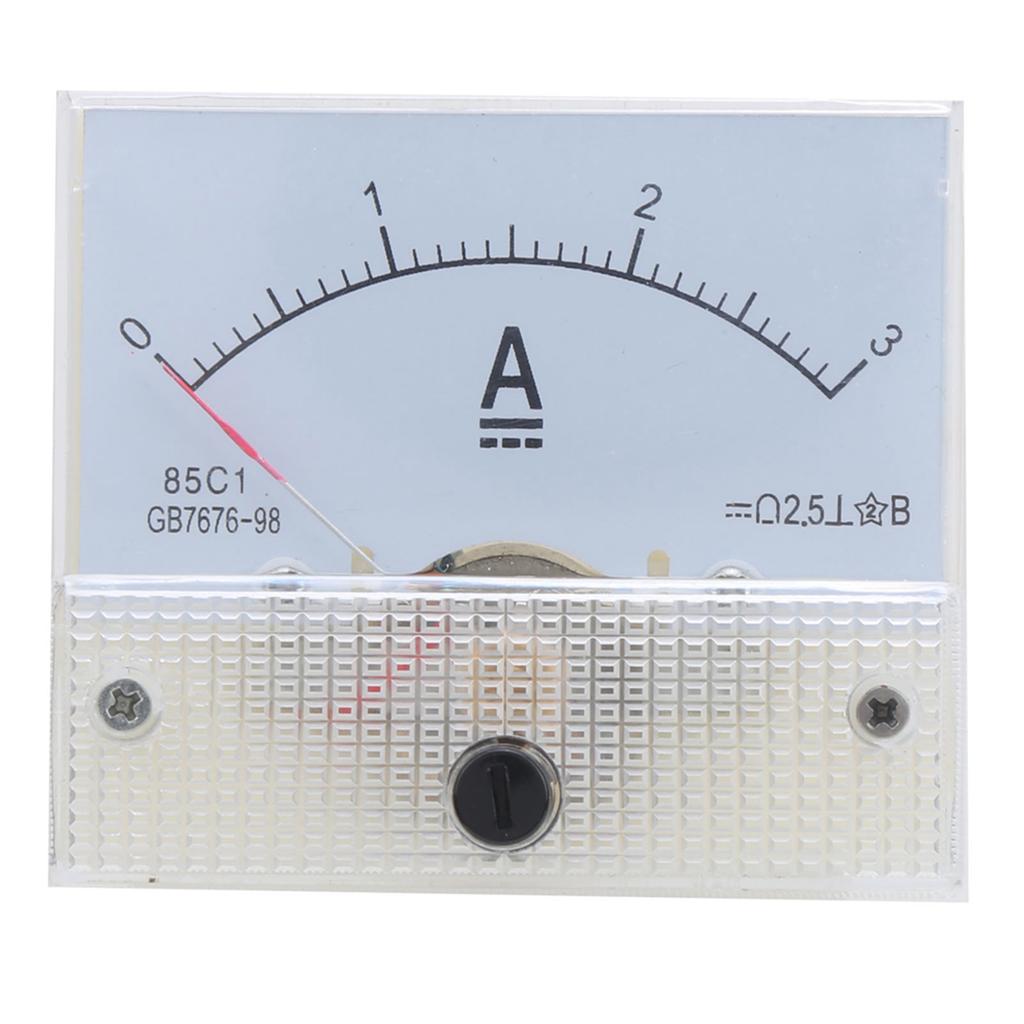

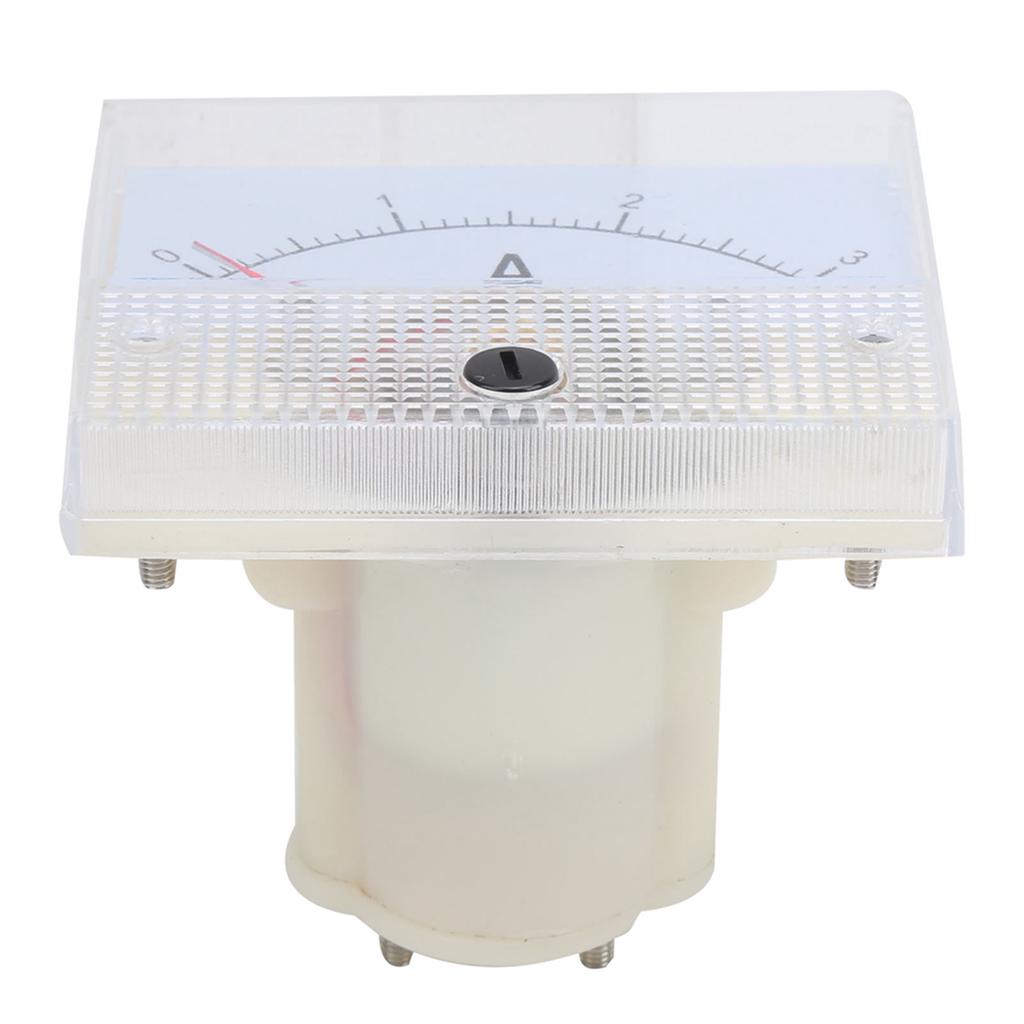

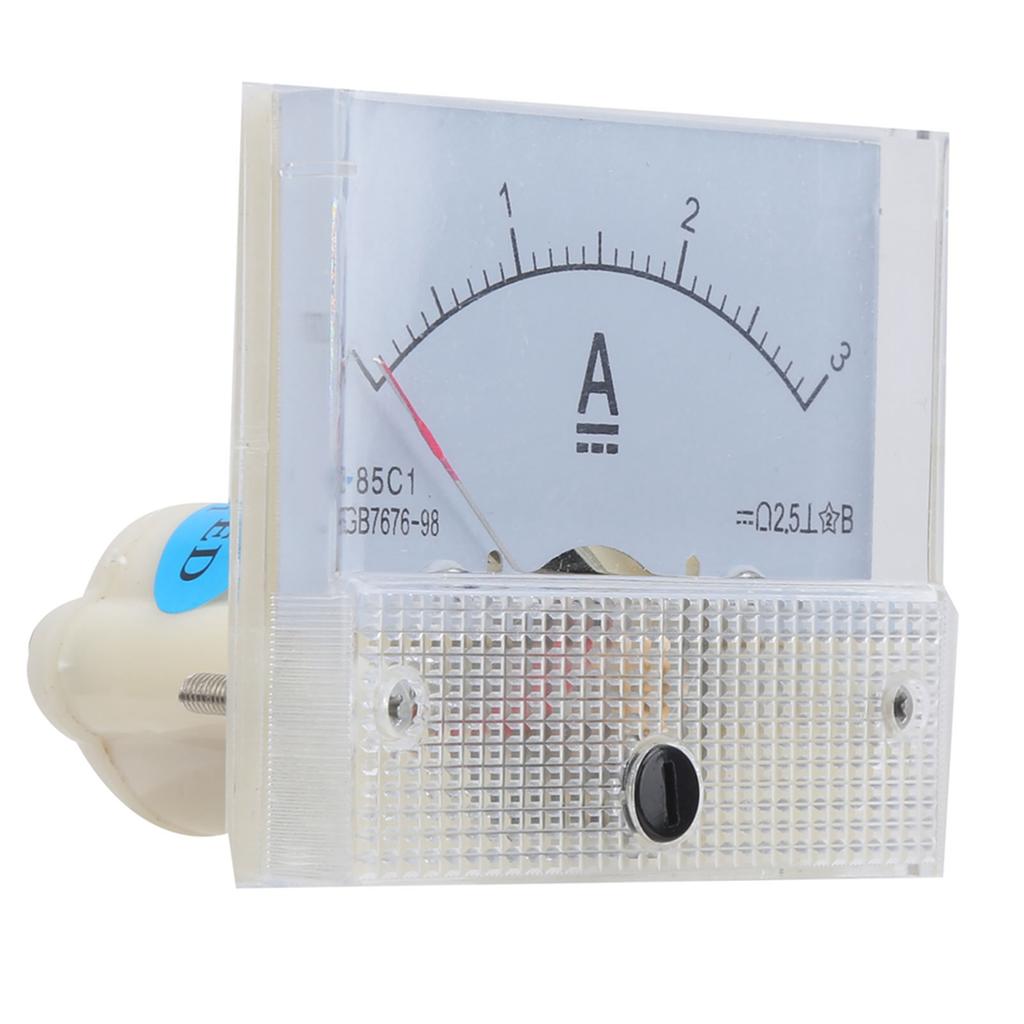

1. The scale is clear, the dial is silk?screened scale, black on a white background, and red pointer.
2. The wiring terminal is simple and convenient, mainly used to directly measure the current in the electrical circuit.
3. The structure is simple, and it can be used on some power equipment in the power transmission and distribution system.
4. Easy to install, with accessories required for installation, convenient and quick installation.
5. It adopts embedded way of concealing installation, can not see installation base, beautiful and generous.
Specification:
Item Type: DC Pointer Ammeter
Material: ABS
Product Total Size: Approx. 63 x 58 x 56mm2.5 x 2.3 x 2.2in
Model: 85C1A DC 0~3A
Accuracy Grade: +2.5percent
Insulation Resistance: >20M Ohm DC500V
Damping Time: <4S
Product Use: Measuring Circuit Current
Installation Method: Suitable for Vertical Installation (Except for Special Regulations)
Storage Temperature: 40 celsius ~70 celsius
Working Temperature: 20 celsius ~40 celsius , Relative Humidity less than 85percent
Insulation Strength: Can withstand voltage withstand voltage test of 50Hz sine wave AC 2kv voltage lasting 1min
Use Scenarios: Voltage Stabilizer, Power Distribution Cabinet, Test Bench
.
Package List:

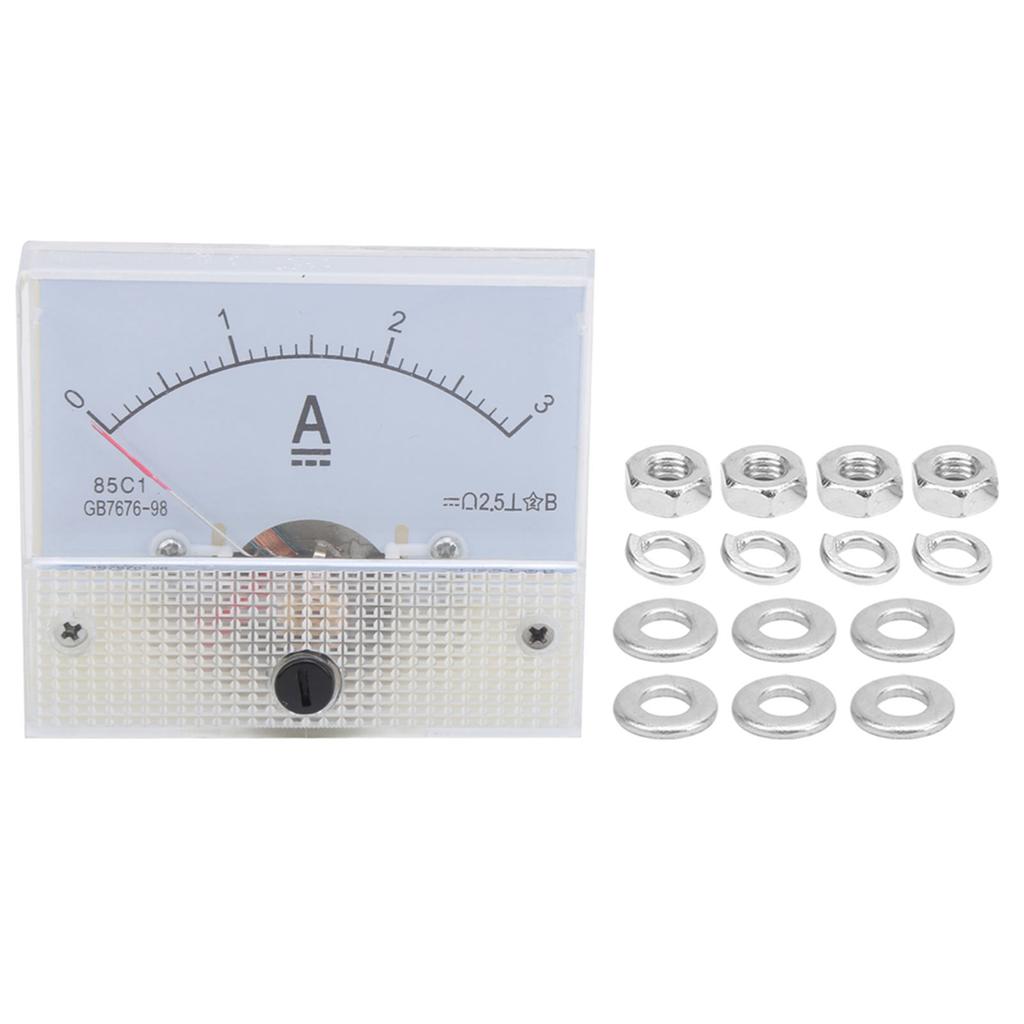

1 x DC Pointer Ammeter4 x Stainless Steel Nut 4 x Spring Washer6 x Flat WasherThe scale is clear, the dial is silk?screened scale, black on a white background, and red pointer.
The wiring terminal is simple and convenient, mainly used to directly measure the current in the electrical circuit.
The structure is simple, and it can be used on some power equipment in the power transmission and distribution system.
Easy to install, with accessories required for installation, convenient and quick installation.
It adopts embedded way of concealing installation, can not see installation base, beautiful and generous.
