Feature:
1. Accurate Intelligent Control: This temperature controller come with high speed microcontroller and accurate intelligent control
2. 3 Window Simultaneously Display: This is an intelligent digital display thermostat temperature controller, the upper and lower limit settings are displayed simultaneously in three window
3. Automatically Determine Mode: According to the set temperature, the relay can automatically determine the heating mode and cooling mode
4. ?9 To 99 celsius Range: Intelligent temperature control switch possess wide temperature range of ?9 to 99 celsius , support freely set
5. For Various Temperature Control: Suitable for various space"s temperature control, water temperature control, incubator, etc.
Specification:

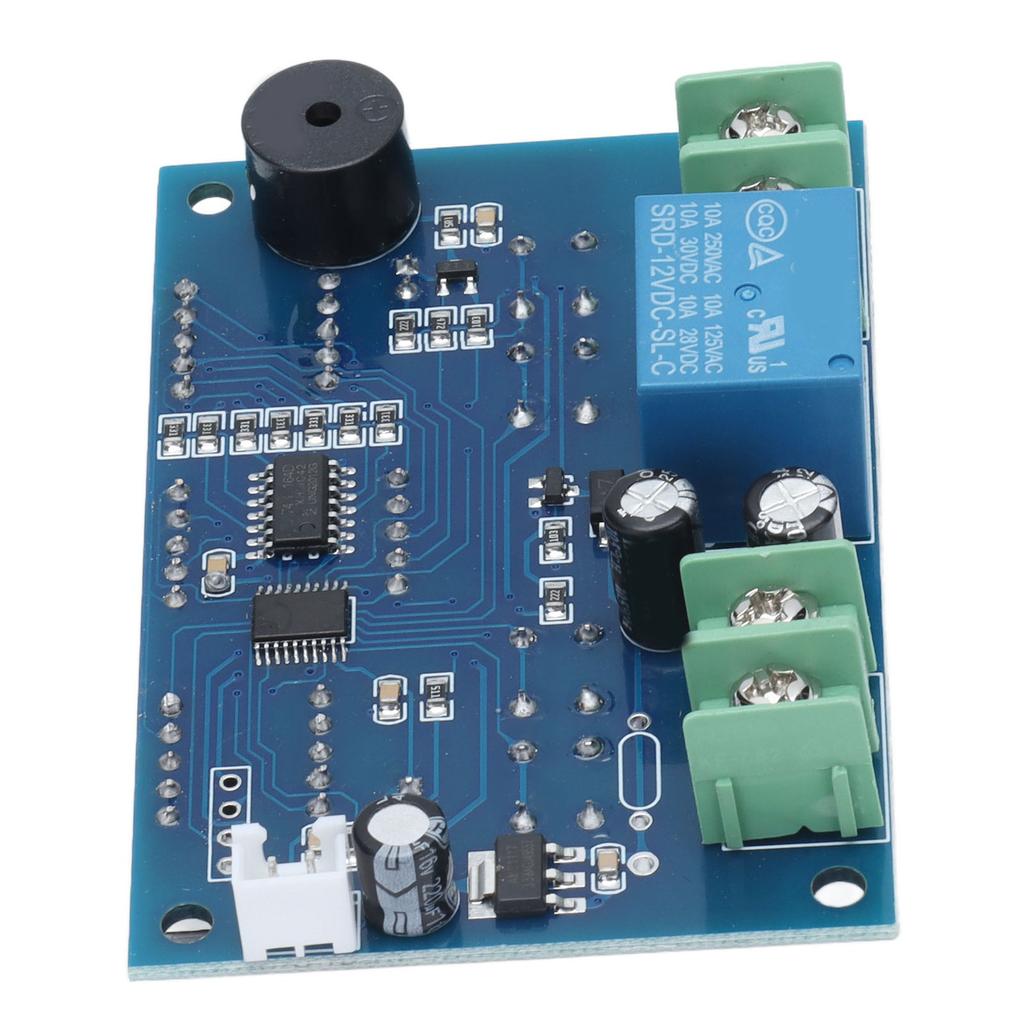

Item Type: Intelligent Temperature Controller
Temperature Range: 9 to 99 celsius
Temperature Accuracy: 1 celsius
Control Accuracy: 1 celsius
Setting Range: 9 to 99 celsius
Refresh Rate: 0.5s
Input Power: DC9 to 15V
Environmental Requirements: 10 to 60 celsius
Humidity Requirements: 20percent to 85percent
Size: Approx. 78 x 50mm 3.1 x 2in
Measurement Input: Waterproof temperature sensorNTC(395010K 1percent )

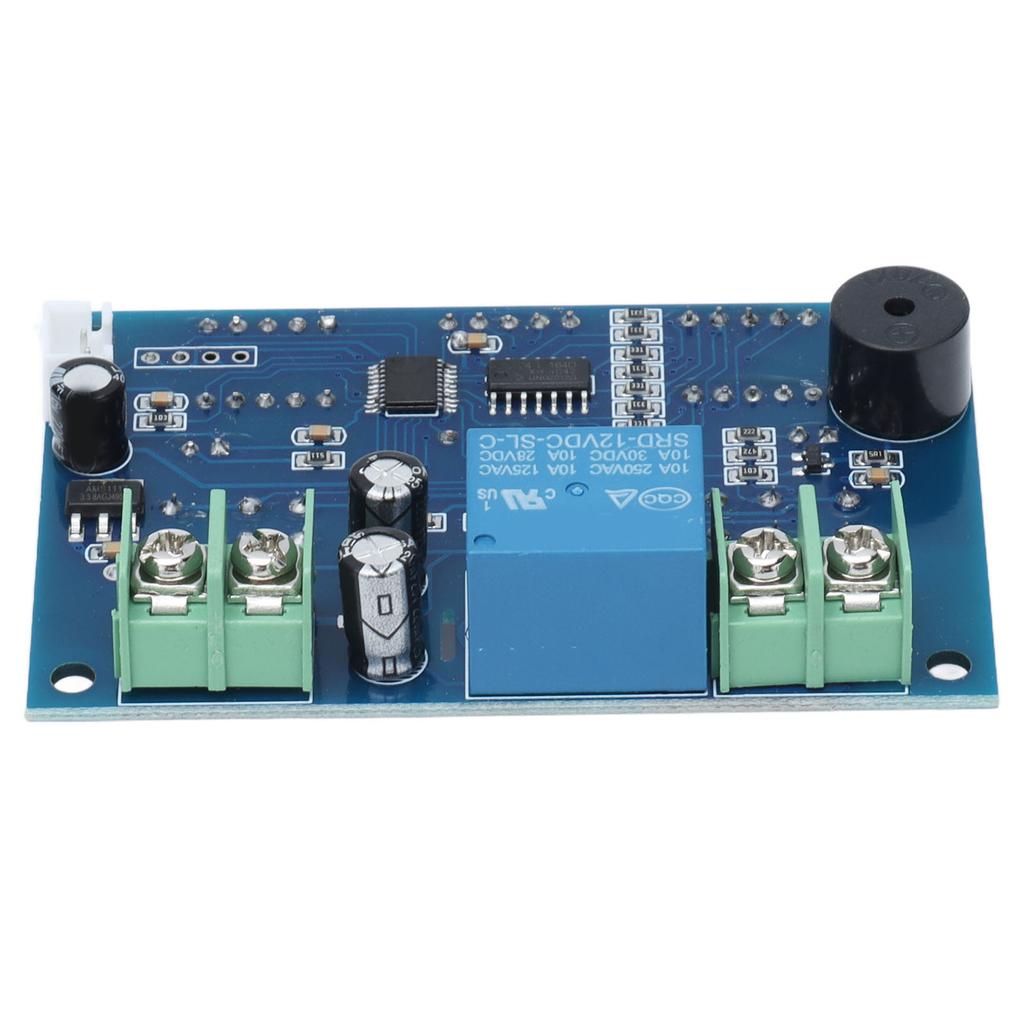

Output: Relay output, capacity 220V 10A 12V 10A

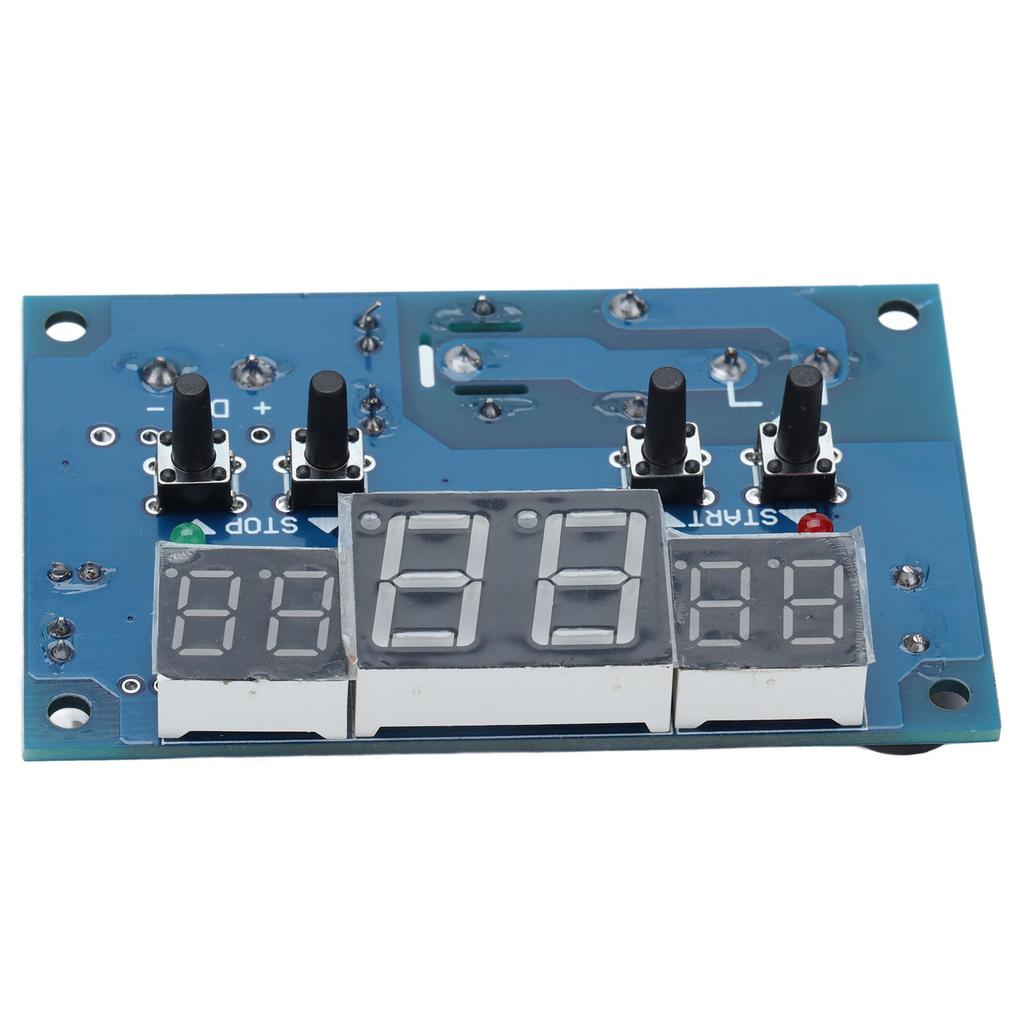

How to UseStart Indicator Light: START (red) indicator light is on, indicating that the relay is closed and the device starts to work
Stop Indicator Light: STOP (green) indicator light is on, indicating that the relay is disconnected and the device stops working
Digital Tube: The middle red digital tube displays the currently detected temperature,
The green digital tube on the left is the setting start temperature
The green digital tube on the right is the setting stop temperature
Button: START sets the starting temperature; STOP sets the stop temperature
1. High Temperature Start: Refrigeration Mode: When the setting start temperature value>stop temperature value, when the detected temperature more than the start temperature, the relay closes and the refrigeration equipment works; when the detected temperature less than the stop temperature, the relay opens and the refrigeration equipment stops working. For Example: Set the start temperature to 30 celsius and the stop temperature to 25 celsius . When the detected temperature value is more than 30 celsius , the relay is closed and the start indicator light (red) is on; when the detected temperature value is more than 25 celsius , the relay is disconnected and the stop indication light (green) is on.
2. Low Temperature Start: Heating Mode: When the setting start temperature value <stop temperature value, when the detected temperature less than the start temperature, the relay closes and the heating equipment works; when the detected temperature more than the stop temperature, the relay opens and the heating equipment stop working. For Example: Set the start temperature to 25 celsius , and the stop temperature to 30 celsius . When the detected temperature value is less than or equal to 25 celsius , the relay is closed and the start indicator light (red) is on; when the detected temperature value is greater than or equal to 30 celsius , the relay is disconnected and the stop indicating light (green) is on. .
Package List:
1 x Temperature Controller1 x ProbeAccurate Intelligent Control: This temperature controller come with high speed microcontroller and accurate intelligent control
