Feature:

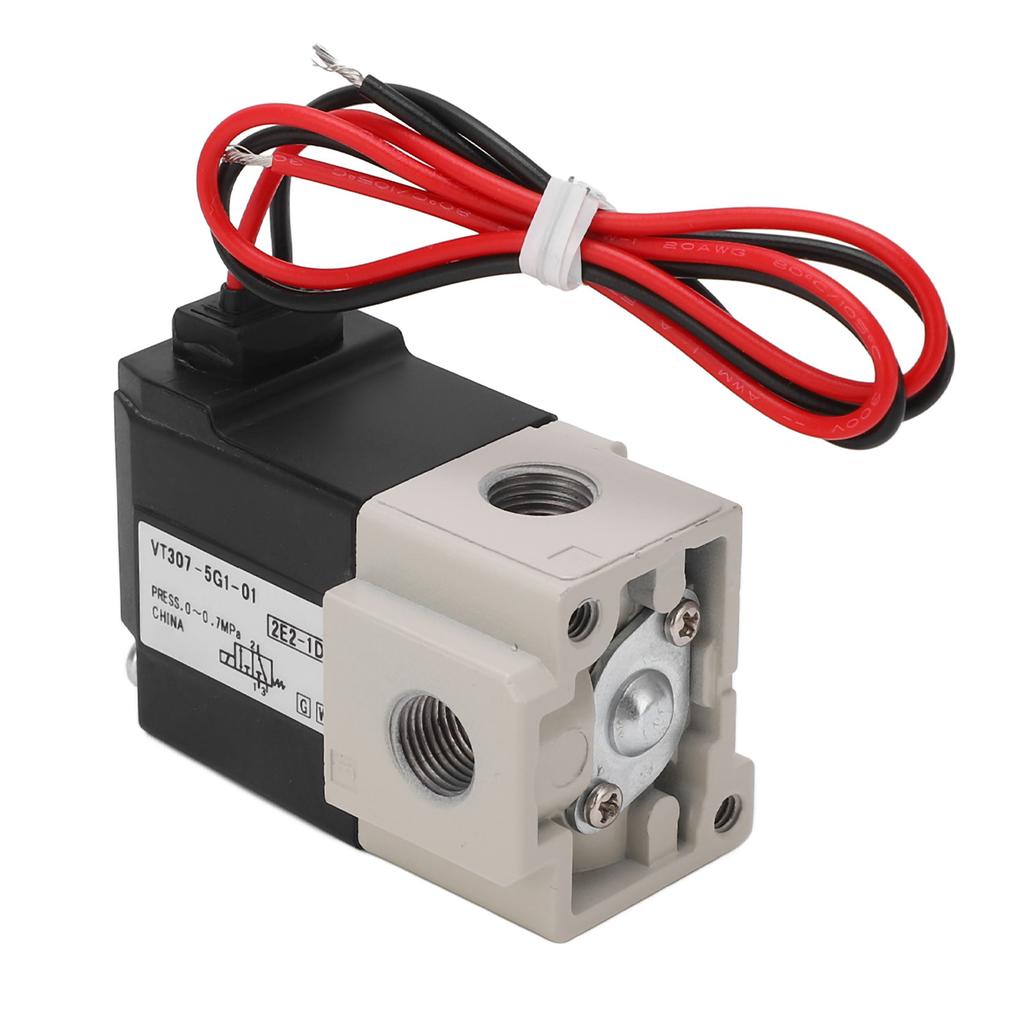

1. SPECIFICATIONS: SMC type vacuum electric solenoid valve, 2 position 3 way design, with direct acting 2 position single coil switching mode.
2. COPPER COIL: The solenoid valve adopts sufficient copper coils, which have good conductivity, not easy to burn, greatly extend the service life.
3. FINE PROCESSING: With fine polishing, the solenoid valve is glossy without burrs, the inner wall is finely polished to ensure no air leakage.
4. DIE CAST ALUMINUM: The valve body is made of die casting aluminum material, which is resistant to corrosion and impact, not easy to deform or wear.
5. GOOD SEALING: The pneumatic solenoid valve adopts excellent sealing ring to provide good dust protection, ensure stable and reliable in operation.
6. LOW FRICTION: There is softened oil between the moving parts inside the solenoid valve, effectively reducing the wear between the parts, work smoothly.
Specification:
Item Type: Solenoid Valve
Switching Mode: Direct Action 2 Position Single Coil
Working with Fluids: Air
Operating Pressure Range: 00.7MPa
Ambient and Fluid Temperature: 1050 celsius (unfrozen)
Response Time: Below 20ms (0.5MPa)
Maximum Action Frequency: 10Hz
Oil Feeding: Not required (if necessary, one type of turbine oil ISOVG32 is used for oil feeding)
Manual Operation: Non Locking Push Type
Installation Method: Free
Impact Resistance: 150ms2
Vibration Resistance: 50ms2
Protection Class: Dustproof
Out Method: Direct out, DIN socket type
Power Consumption: 4W
.
Package List:
1 x Solenoid ValveSPECIFICATIONS: SMC type vacuum electric solenoid valve, 2 position 3 way design, with direct acting 2 position single coil switching mode.
COPPER COIL: The solenoid valve adopts sufficient copper coils, which have good conductivity, not easy to burn, greatly extend the service life.
FINE PROCESSING: With fine polishing, the solenoid valve is glossy without burrs, the inner wall is finely polished to ensure no air leakage.
DIE CAST ALUMINUM: The valve body is made of die casting aluminum material, which is resistant to corrosion and impact, not easy to deform or wear.
GOOD SEALING: The pneumatic solenoid valve adopts excellent sealing ring to provide good dust protection, ensure stable and reliable in operation.
