Feature:
1. DIGITAL ELECTRONIC EYEPIECE: Built in 16MP HD camera picture sensor, 2K video recording, making observation easier and more fun. The eyepiece interface(adapter) is designed for microscopes or telescopes. The upper mouth is a USB or HD port connected to your computer or monitor, and the lower mouth is 31.7mm inserted directly into a microscope or telescope
2. COMPUTER SOFTWARE SUPPORT SYSTEM: The software is completely free and support for Windows XP, 7, 8, 10, 11 systems. When connecting an electron microscope to a computer, simply plug in a USB cable for connection, and the USB output will be stored in the computer. Can adjust the software operation white balance, exposure and color adjustment, support photography and video, accurate measurement, computer hard disk storage data, grid lines, easy to operate
3. MORE FEATURES: Digital electronic eyepiece support adding layers, watermarks, mosaics, tiles; Adjust color balance, exposure, saturation, contrast, and orientation; Change resolution, histogram, granulation, diffusion; Transform the image by edge detection and digital image distortion; Measurement of single, parallel or vertical lines as well as rectangular, oval and irregular regions; Add comments, measurements, text, arrows, labels, and more using custom text of different sizes and colors; Measurements are made in microns, millimeters, centimeters, inches, feet, etc. at any magnification with the required tolerances
4. FOR TELESCOPES: The telescope digital eyepiece is specifically designed for the hassles that plague traditional telescope users. Connect to a traditional telescope to instantly unbind your eyes and turn a traditional telescope into an electronic telescope. Has the characteristics of simple installation, strong versatility, rich functions and easy to use. The body color is classic black, and the exterior design is light
5. APPLICATION FIELD: Microscopic digital eyepiece can be used in industrial viewing, viewing inspection, microscopes, astronomical telescopes, intelligent terminal devices, face recognition, advertising machines, vegetable recognition, smart vending machines, electronic weighing object recognition, USB cameras, scan code cameras, etc.
Specification:
Item Type: Digital Electronic Eyepiece
Remote Control Battery: 1 x CR2025 150mAh button battery
Microscope camera parameters with screen
Optical Format: 1 2.9in
Pixel Size: 2.85μmx2.85μm
Interface: HD interface (Class A)
Image: 16MP
Video Resolution: 2K, 60FPS, 1080p, 60FPS
High Definition Multimedia Interface Resolution: 1920 x 1080p
High Definition Multimedia Interface Ratio: Support 4:3, 16:9 screen
Small Memory Card: Up to 64GB(not include)
AWB: Color correction, automatic, manual
R.G.B Value: Set independently
Exposure: Automatic, manual. The AE value can be set
Cross Line: You can set 8 lines, color, width, and position
Scale Line: 2 Lines
Dotted Line: You can set two lines, color, width, and position
Sharpness Contrast Color Gain: Supported
Mono Negative: Supported
Mirrors: Horizontal and vertical mirrors
Language: English, Simplified Chinese, French, Spanish, Japanese German and other languages
Digital Zoom: Supported
Remote Control: Supported
Lens Interface: C or CS port.

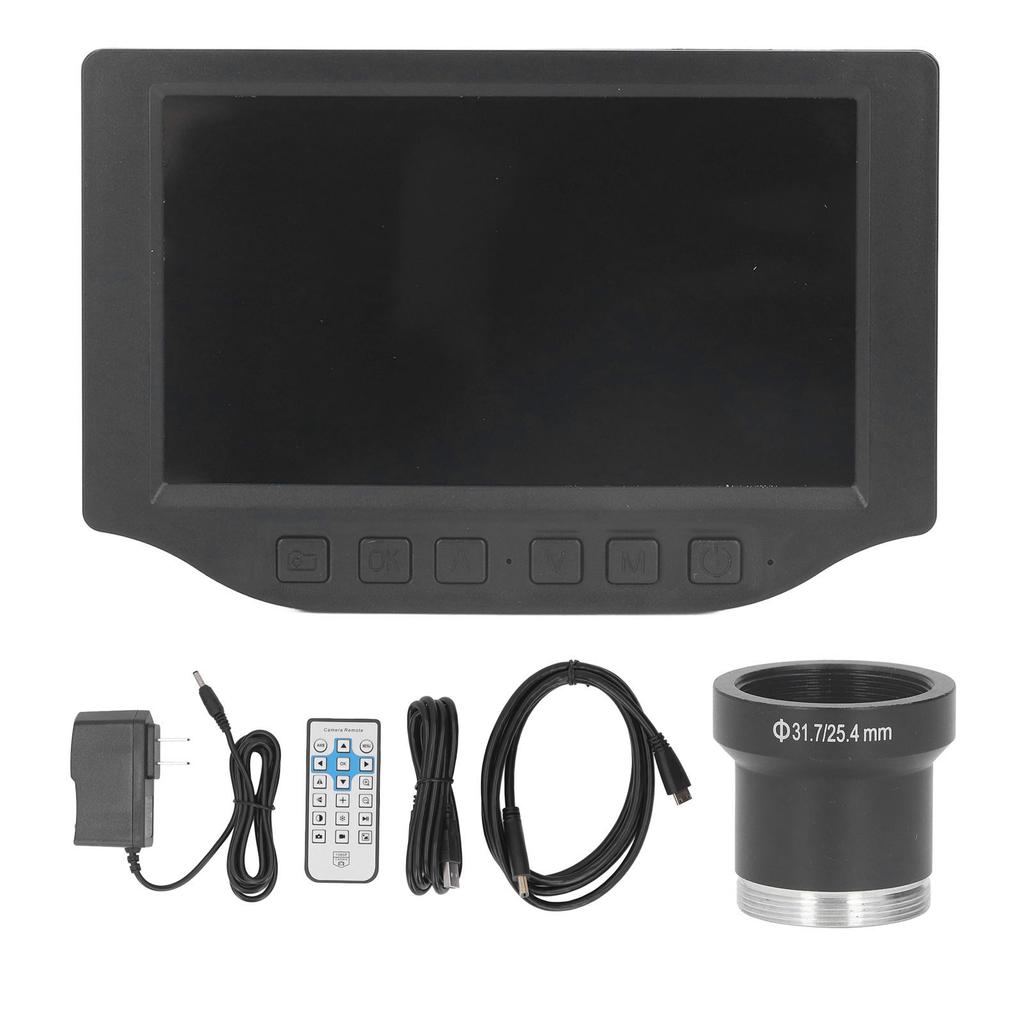

Package List:
1 x Main Unit
1 x Lens Adapter
1 x HD Cable
1 x USB Cable
1 x Power Adapter
1 x Remote Control
1 x User Manual
Note:
Please make sure there is no memory card in the camera, memory card storage is only used for HD multimedia interface output.
