【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------
High Efficiency and Precision: With 40,000 vibrations per second (40 kHz) and up to 30 W of power, this ultrasonic cutter smoothly cuts through materials and allows precise control of cutting depth and reach. The ultrasonic cutter is vibration-free and silent during startup.
No Stand Required, Easy to Carry: Weighing just 120g, the ultrasonic knife is lighter than conventional products and does not require a stand, allowing for more flexible use. It does not come with a stand, so you can use it directly with a power adapter or mobile power source. It comes with 40 replacement blades, making blade replacement easy.
A Must-Have for DIY Enthusiasts: This ultrasonic cutter can cut a wide range of materials, including paper, cardboard, carbon fiber boards, plastic pipes, plastic cases, corrugated cardboard, leather, wood, acrylic, PVC foam boards, and data cables. When cutting plastic, the 40kHz high-frequency vibrations of the ultrasonic blade and the heat generated by friction can melt it. For best results, we recommend cutting at a 30° angle and using low power mode.

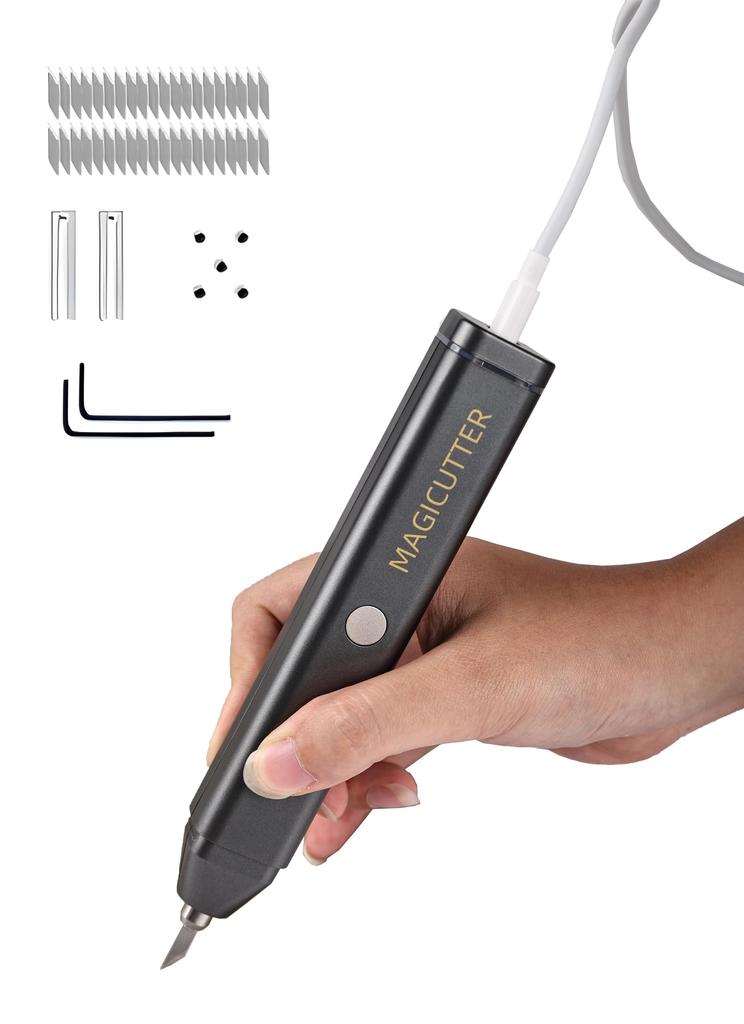

Package contents: 1 x ultrasonic cutter, 1 x dual Type-C power cable, 1 x adapter, 40 replacement blades, 2 x blade holders, 3 x hex wrenches, 5 x fixing screws, 1 x instruction manual, 1 x quick start guide
WARNING: Always read the instructions before use, wear protective gloves, and keep out of reach of children as the ultrasonic cutter is sharp.
[Product Specifications]

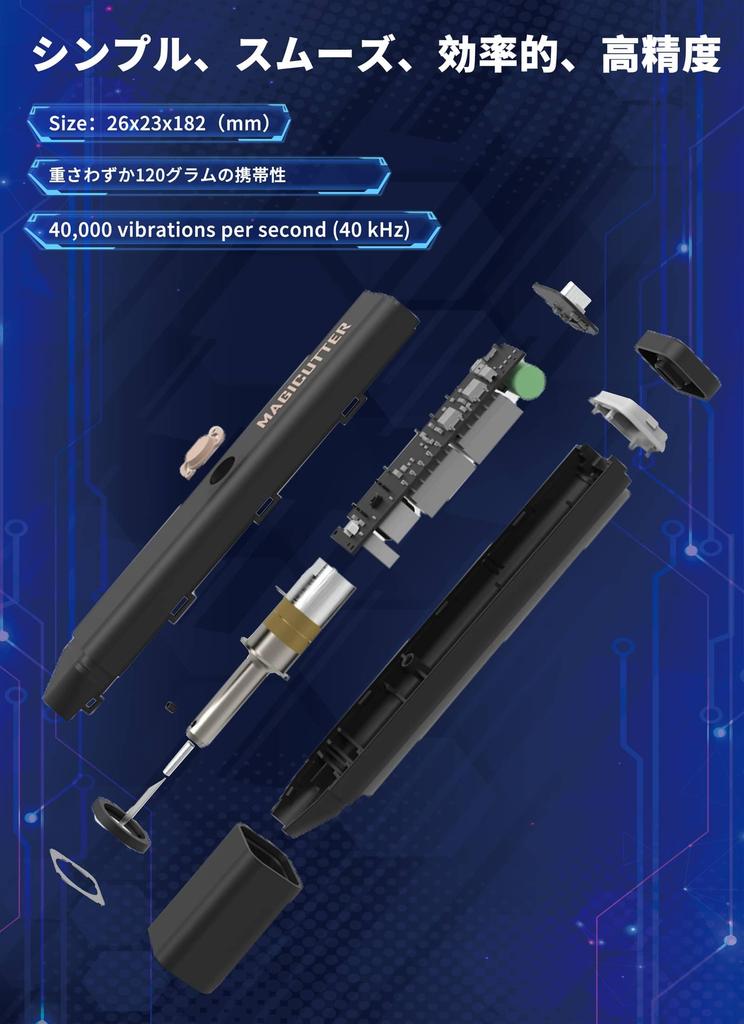

1. Ultrasonic vibration frequency: 40kHz
2. Product dimensions (unit: inches): 1.02 x 0.91 x 7.17
3. Weight: 4.23 oz (approx. 120 g, excluding power cord)
4. Maximum output: 30W
5. What's in the box:

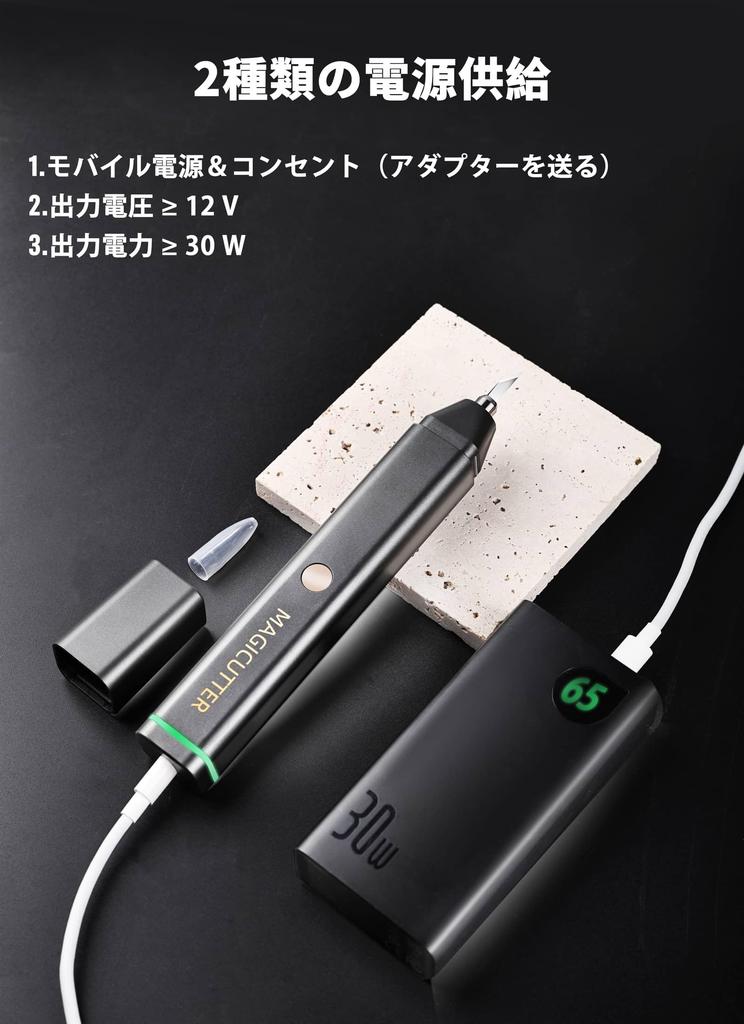

・Local standard PD 3.0 charger (compatible with 12V/15V)
- USB-C to USB-C power cable
* PD 3.0 compatible mobile devices (12V/15V output) can also be used (* Mobile devices are not included)
6. Operating environment: Temperature 5 to 35°C, humidity 20 to 70% (no condensation)

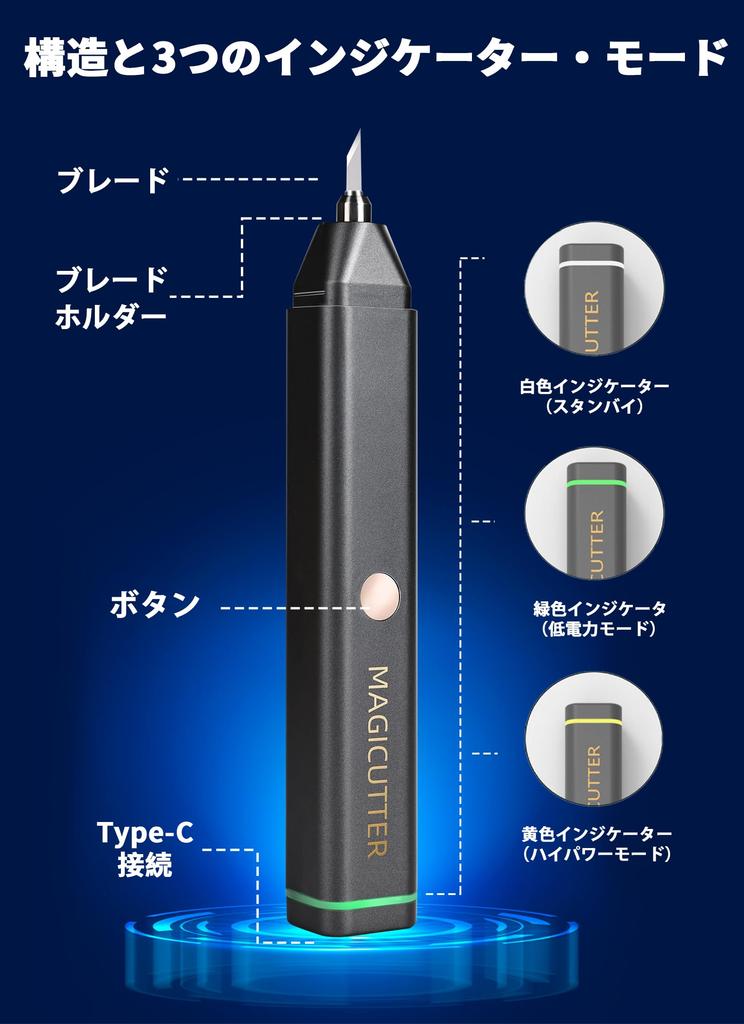

7. Power-on behavior:
A power protocol check will be performed and the indicator lights will illuminate in the following order:
White → Blue → Green → Yellow → Purple → White
When a compatible PD 12V/15V power source is detected, the light will turn white (standby).
Short press the power button: Green light → "Standard power mode" activated
Short press again: White light returns to standby mode
Press and hold: Yellow light turns on → "High power mode" activated
