Label:Yes

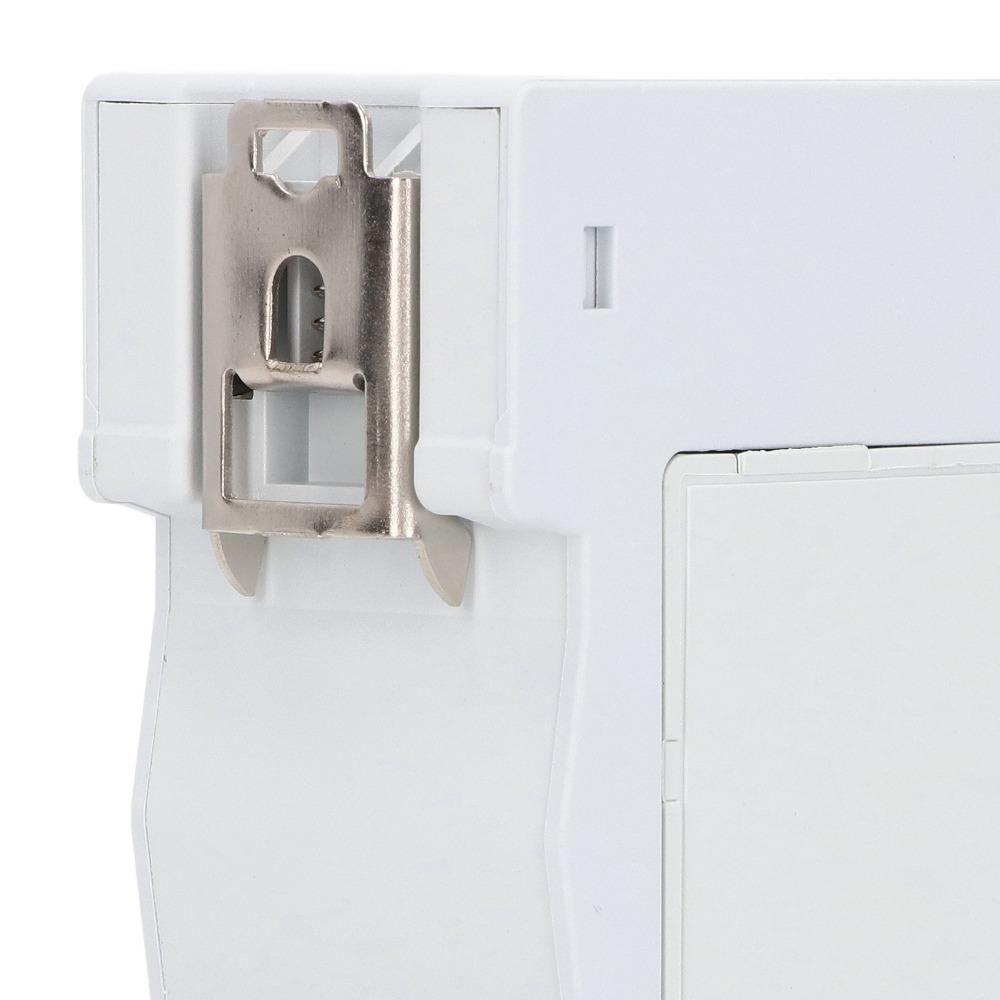

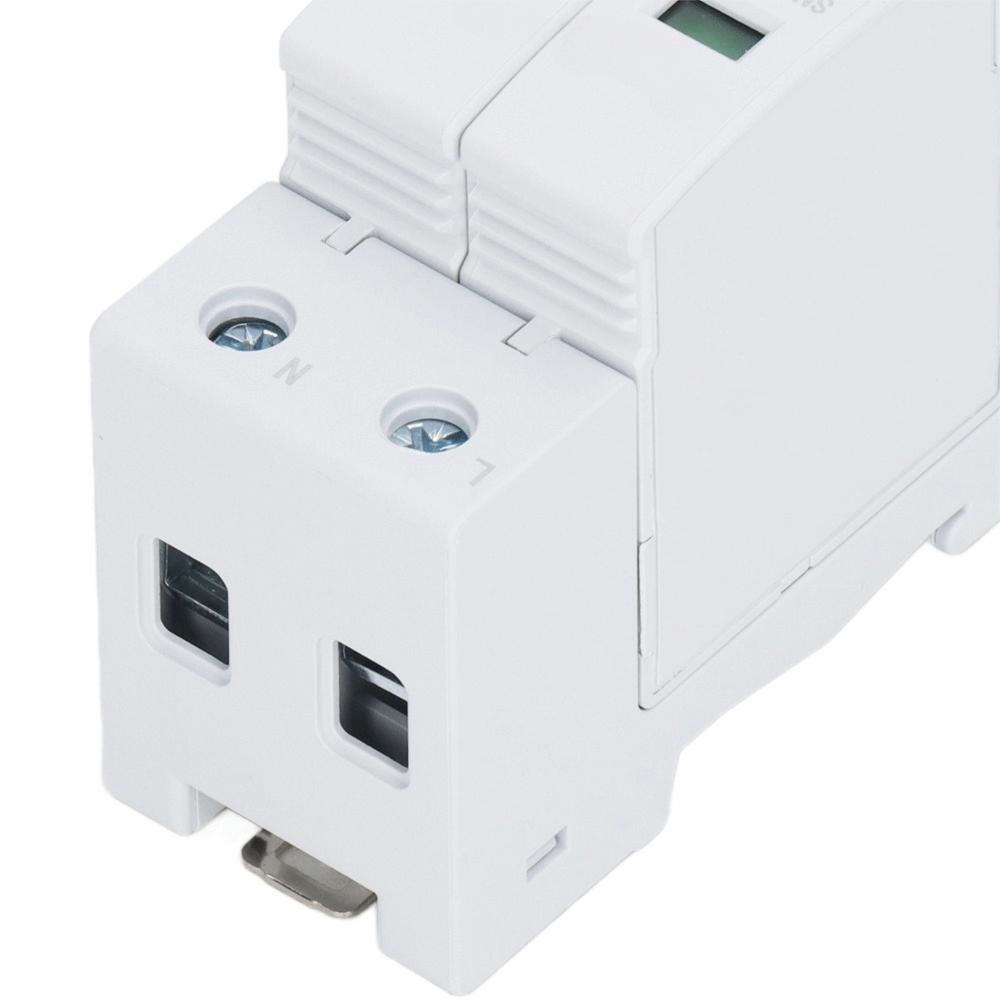

-Rail Installation: This protector is modular designed, supports 35mm(1.38in) electrical guide rail installation, easy to mount.
-High Performance: Adopt insulation wiring terminal, more reliable and safe, with quick response speed and strong carrying capacity, avoid household power grid from excessive impact.

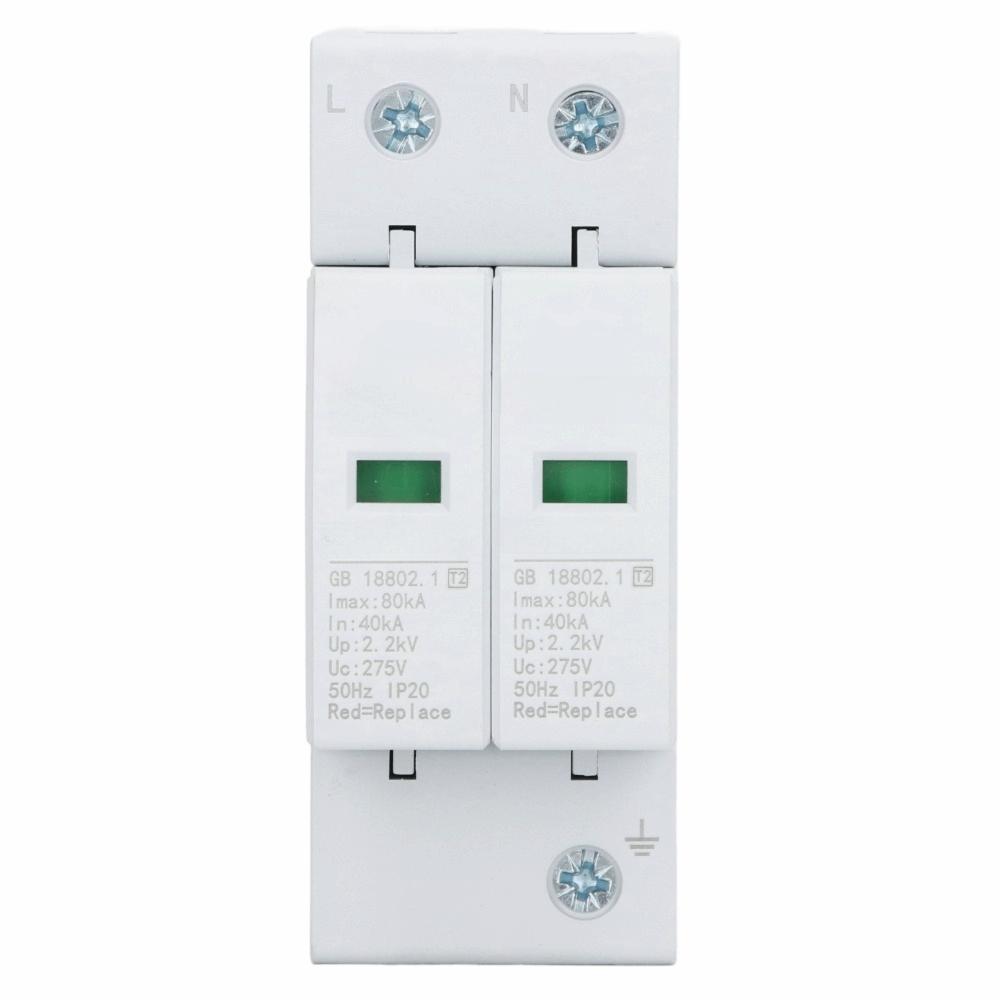

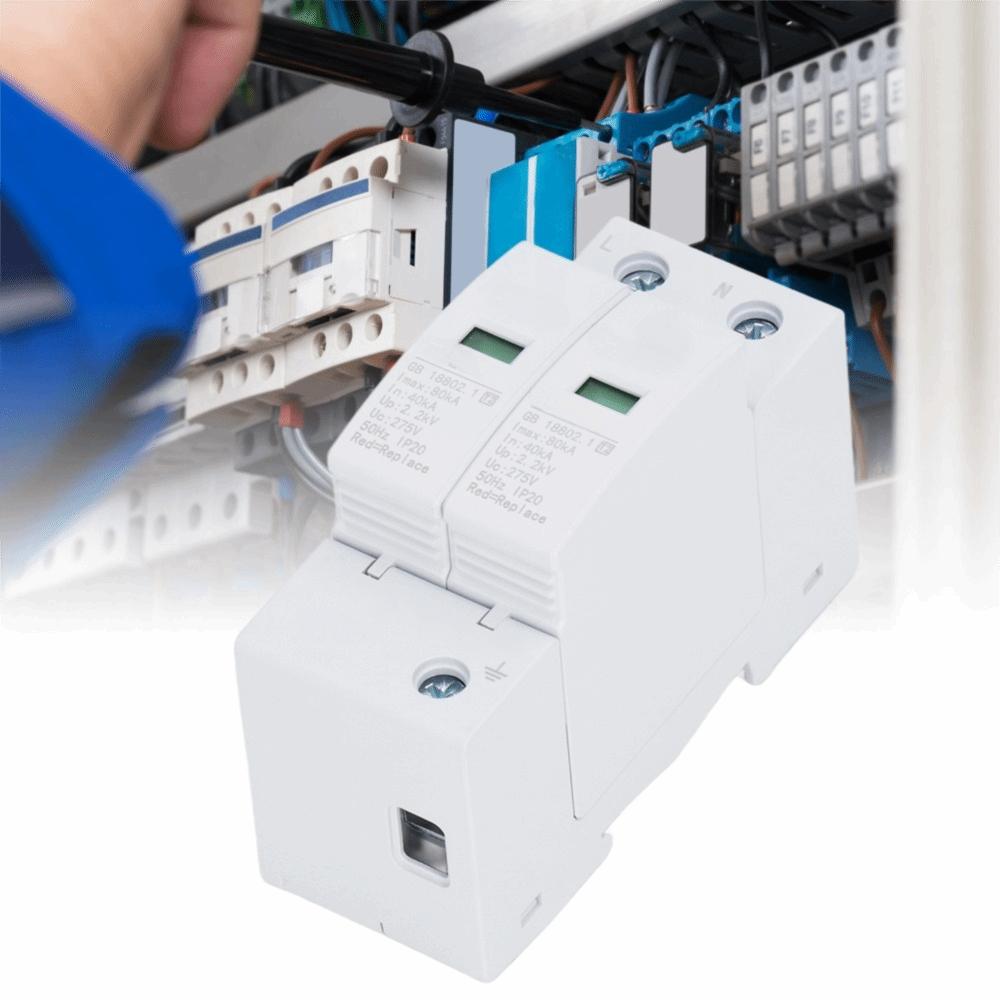

-Fault Indication: Designed with indication window, which effectively reflect the working status of the device, green color means normal, red color means fault, convenient for timely maintenance.
-High Safety: This protector is fireproof, supports hot line manipulate and is easy to use.
-Main Function: Using this device to secure your house electrical equipment, which will turn on quickly within nanoseconds when there is a overvoltage, and introduce the overvoltage into ground.
Specification:
Item Type: Protective Device
Material: PC
Color: White

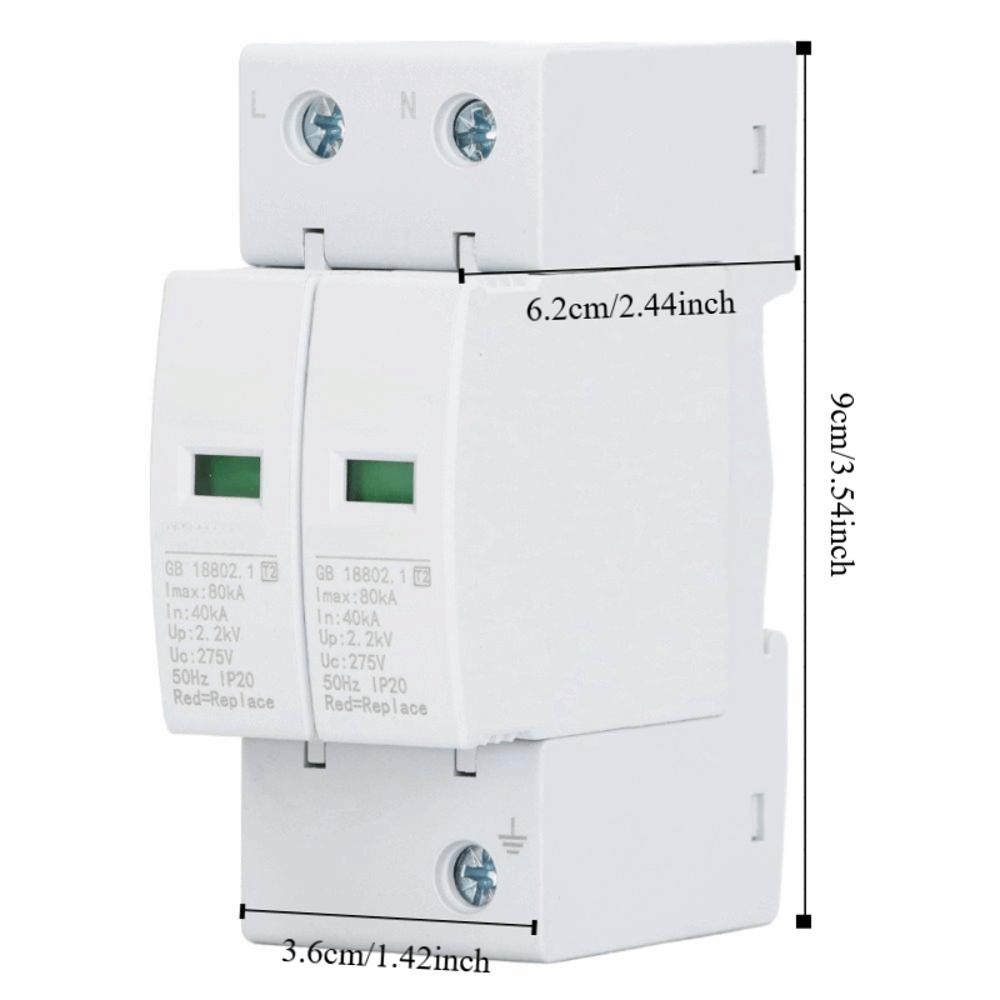

Size:9*6.2*3.6cm(3.54*2.44*1.42in)
Maximum Discharge Current (Imaximum): 80KA
Nominal Discharge Current (In): 40KA
Protection Level (Up): 2.2KV
Protection Grade: IP20
Response Time: ≤ 25ns
Maximum Wire Diameter: 35 hard wire or stranded wire (mm²)
Recommended Connection: 4-25 (mm²)

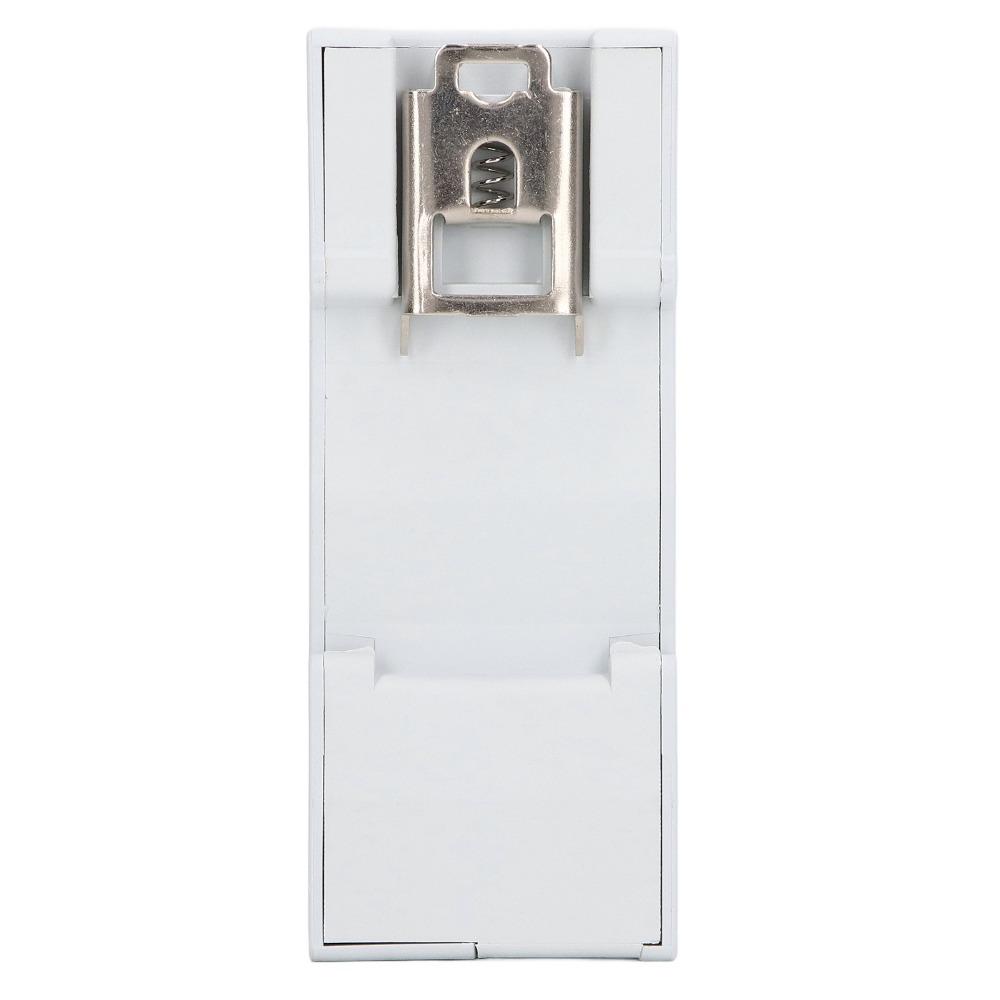

Installation Method: 35mm(1.38in) electrical guide rail installation
Ambient Temperature: -40℃ to +80℃
Main Structure and Working Principle:
In a three phase four wire system, protectors are connected between three phase wires and one neutral wire to ground. Under normal circumstances, the protector is in a high resistance state, when the power grid deals with overvoltage due to lightning strike or other reasons, the protector will turn on quickly within nanoseconds, and introduces the voltage overvoltage into the ground, thus protecting the electrical equipment on power grid. When the voltage passes through the protector and disappears, the protector changes to a high resistance state again, so as not to affect the normal working of the power grid.
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
Package List:
1 x Protective Device
