Specifications:

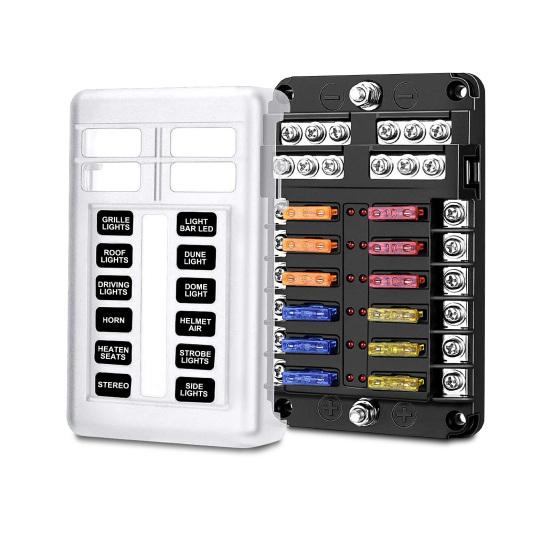

Safe Fuse Box: 12-way fuse box is manufactured from PBT for mechanically strong, insulated, inflaming retarding, high and low temperature resistant performance. This fuse box meets all the standards of an ideal fuse box, which is hardly lead to break, deformation, combustion or short-circuit. All busbars and fuse clips are made of nickel-clad copper for corrosion resistance and excellent electrical conductivity.
Easy Installation: With stainless steel fasteners, input and output terminals fixed with tightening screws, the installation of this fuse box is more convenient. And the fuse box is fixed with tapping screws for maximum stability and safety.

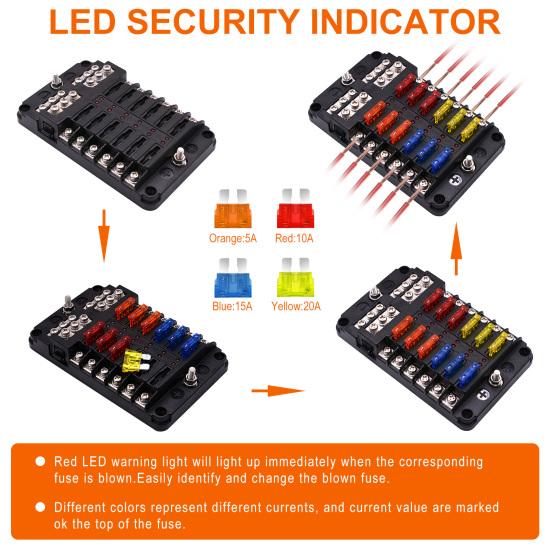

LED Warning Indicator: Red LED indicator will light up immediately when the corresponding fuse is blown. It will indicate exactly which fuse has disconnected, which helps you identify and replace blown fuses immediately.

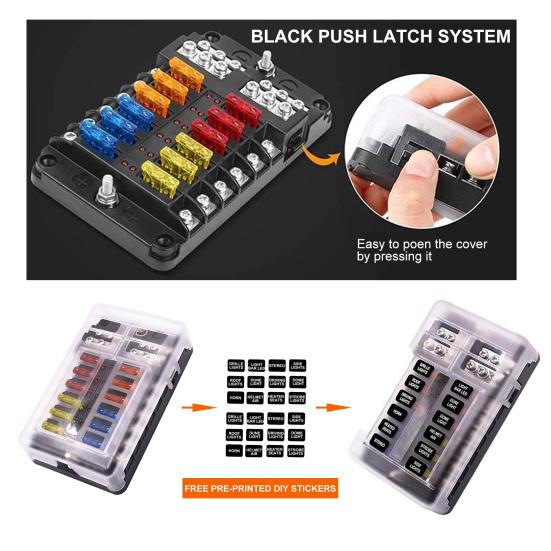

Appliance Name Labels: Labeling stickers equipped makes repair and examination convenient, you can easily identify which appliance is going wrong according to the name on the sticker.
Extra Fuses Included: If the fuse is blown, you can immediately replace it from the 24pcs spare fuses. These spare fuses include multiple amp, so you can choose the corresponding fuse according to the current appliances.
Item Name: Fuse Box
Material: PBT, PC, Nickel-Clad Copper, PPX40
Color: Black
Type: Car Fuse Replacement
Indicator Color: Red

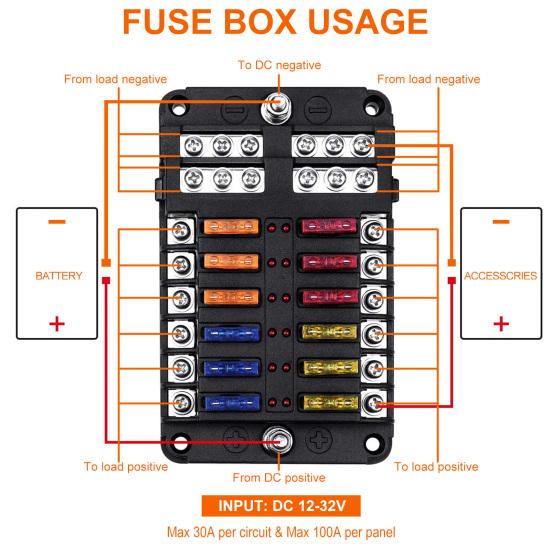

Input Rated Voltage: 32V
Input Rated Current: 100A
Main Line Conductor: #4-6
Single Line Conductor: #12-16
Main Line Terminal: M5 Threaded Stud
Single Line Terminal: M4 Threaded Stud
Maximum Output Current: 30A per Circuit

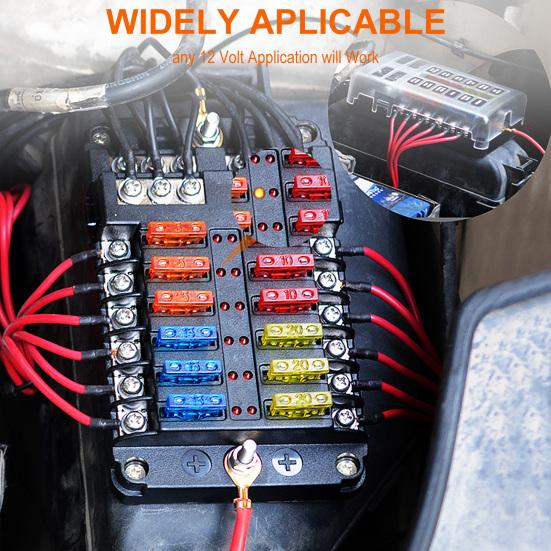

Installation Scope: Sedans, Cars, Off-Road Vehicles, RVs, Buses, Yachts, Boats
Applicable Range: Any Electrical Appliances on Car/Ship, Such as Car Roof Lights, Car Headlights, Wide Light, Fog Light, Caution Light, Car Refrigerator, Car Charger, Car Fan, Car TV
Features: Safe Protection, Organized Wiring, Wide Application, Optimal Conductivity

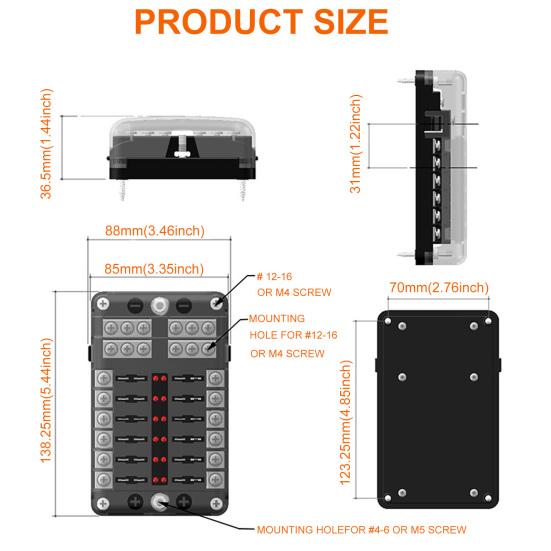

Fuse Box Size: 138.25mm x 85mm x 36.5mm/5.44" x 3.35" x 1.44" (Approx.)
Screwdriver Size: 16cm x 2.2cm(Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Indicator Function:
When the red LED light is on, it indicates that the fuse has been disconnected, and the fuse needs to be replaced in time to continue operation
Fuse Function:
When the circuit is faulty or abnormal, the current will continue to rise, and the rising current may damage some important or valuable components in the circuit, or it may burn the circuit or even cause a fire. The fuse protects the electronic equipment from overcurrent damage, and can also avoid serious damage caused by the internal failure of the electronic equipment. Each fuse has a rated specification, and the fuse will blow when the current exceeds the rated specification. If the fuse is correctly installed in the circuit, the fuse will fuse and cut off the current when the current abnormally rises to the upper limit height and upper limit temperature, thereby protecting the operation of the circuit.

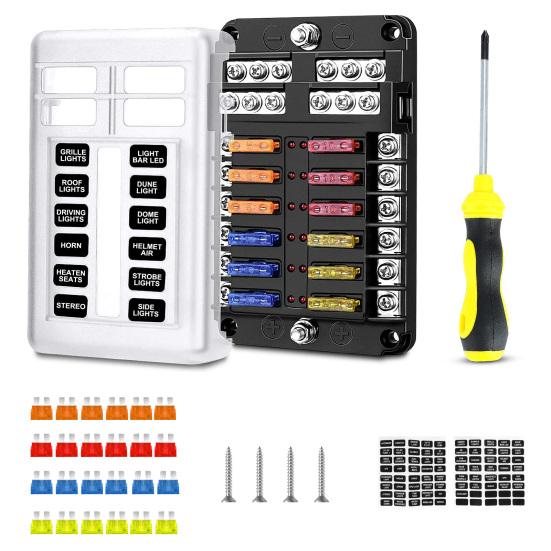

Package Includes:
1 x Fuse Box
1 x 3-inch Screwdriver
2 x Stickers
4 x Tapping Screws
6 x 20A Fuses
6 x 15A Fuses
6 x 10A Fuses
6 x 5A Fuses
