Features:
--The upgraded version of the new MARK4, the motor protection seat is made of mold injection parts, which is beautiful and durable, light in weight and high in strength.
--Mark4 fancy rack, lighter, better performance and more convenient to install.
--The H-shaped structure does not affect the flight experience at all. On the contrary, the arm is shorter and lighter than the X-shaped structure. At the same time, the strength of the arm is higher.
--The installation size of the FPV lens is 19mm width, which is suitable for micro lenses.
--The cabin also reserves 30.5 x 30.5 and 20 x 20 hole control positions for flight control. It is suitable for installation of various flight control equipment.
--The corners of the whole machine have been chamfered and polished. The workmanship is fine and the structure is reasonable.
Description:
Name: MARK4 5inch FPV Carbon Fiber Frame
Propeller: 5 inch
Weight: 128g (with protection kit)
Motor to moto: 225MM
Size: 145 x 172MM
Arms plate: 5MM
Top plate: 2.5MM
Bottom plate: 2.5MM
Side plate: 2.5MM
Camera mount size:19mm
Motor mount hole: 16 x 19MM
Recom mended configuration:
Flight Controller: RF/Kiss/F3/F4/F7
Motors: 2205/2206/2207/2305/2306
ESC: 30A-60A
Propeller: 5 inch
Battry: 4S 1500mAh- 6s 1150mAh
Tips: All products are shipped in loose parts, and you need to assemble them yourself

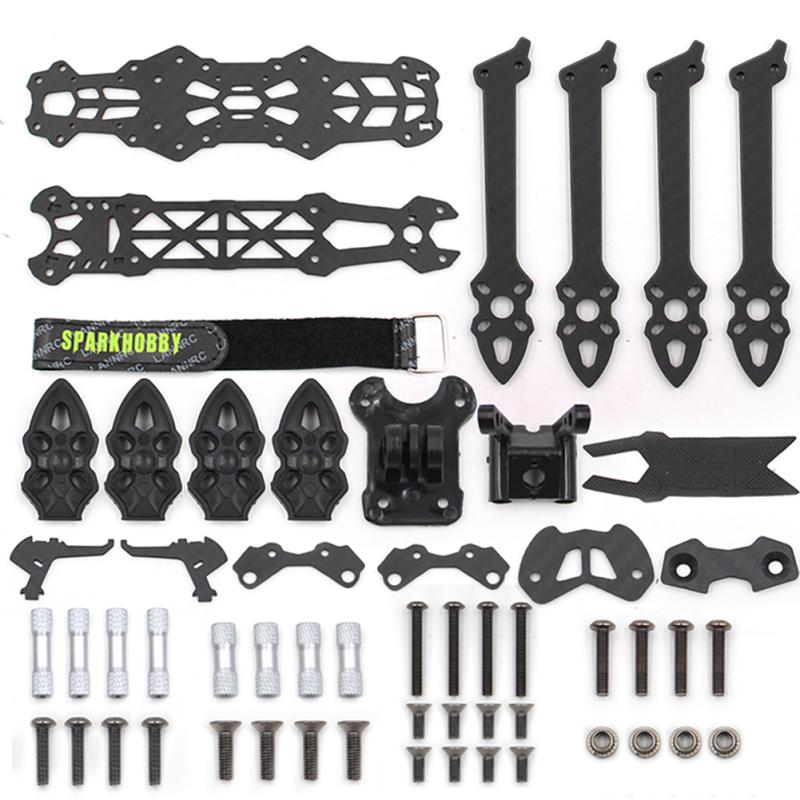

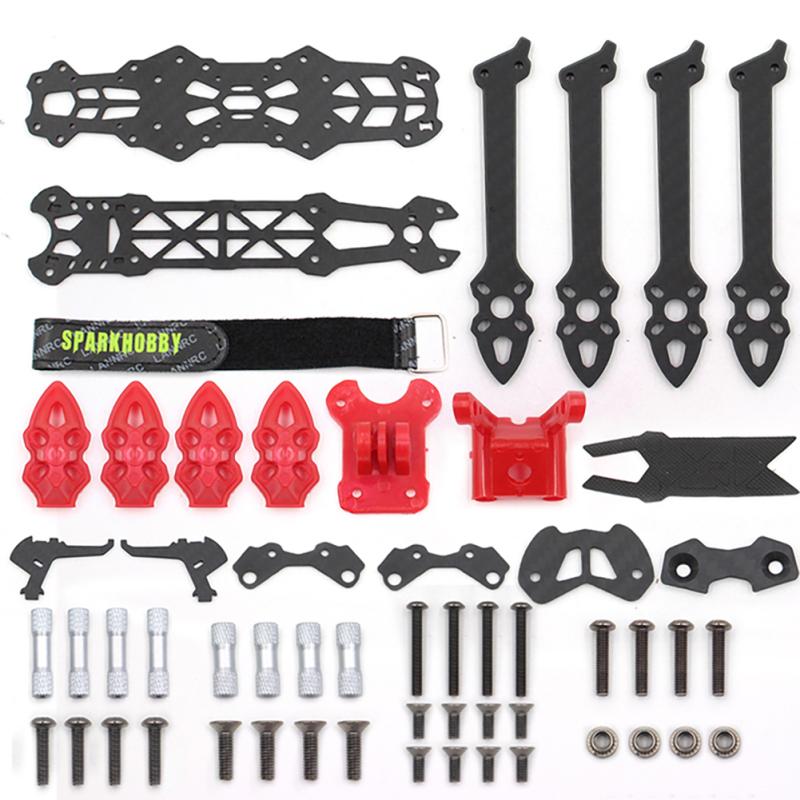

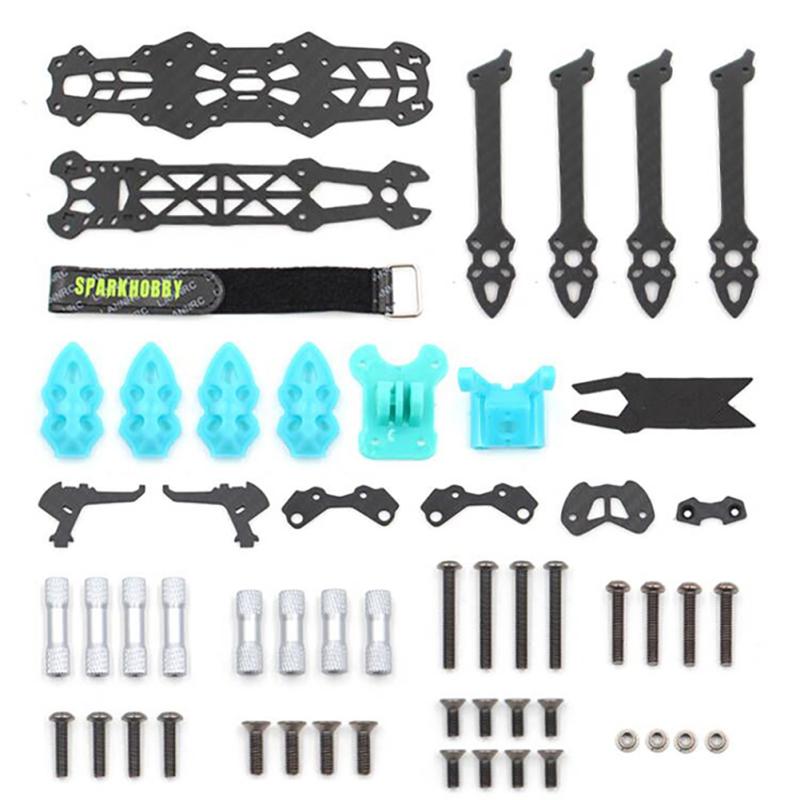

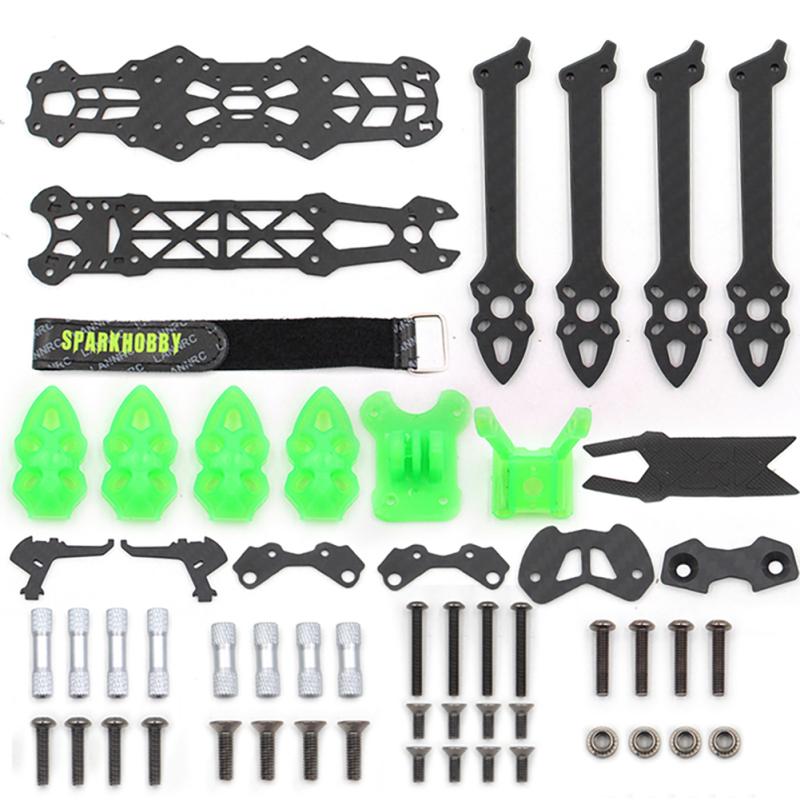

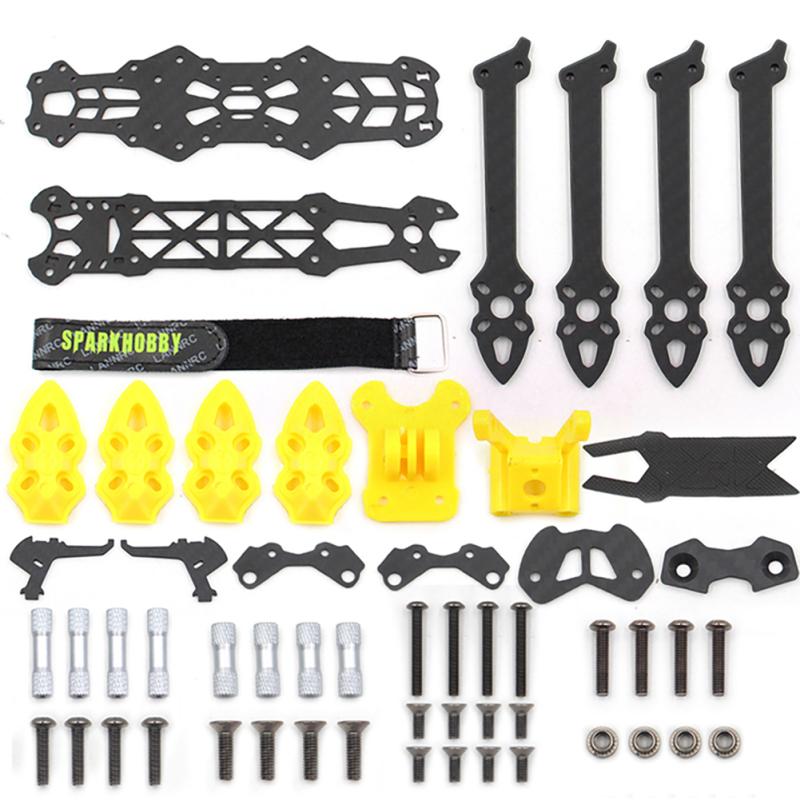

Packing list: As shown
Note:
Due to manual measurement, please allow 1-3 cm error, thank you
Due to screen and other objective reasons, there may be a certain color difference, please understand.
