2S 3S 4S Type-C To 8.4V 12.6V 16.8V Step-Up Boost LiPo Polymer Li-Ion Charger 1A 2A 4A LiPo Polymer Li-Ion Charger Protection Board Overvoltage Protection LED Indicator 18650 Lithium Battery
Feature:
1. Versatile Selection:This Type-C to 8.4V/12.6V/16.8V step-up boost lipo polymer li-ion charger is available in 2S, 3S, and 4S configurations, allowing you to choose the voltage option that suits your specific needs.
2. Wide Range Applications:With its versatile design, this charging boost module can be used in various applications such as RC toys, drones, power banks, portable devices, and more. It provides a reliable power source for your electronic devices.
3. High Safety Performance:The step-up power module is equipped with advanced safety features to ensure high-level protection. It includes overvoltage protection, preventing any potential damage or hazards caused by excessive voltage.
4. Simple and User-Friendly Operation:The boost converter power module is designed for simplicity and ease of use. With clear markings and a straightforward interface, it is easy to understand and operate, even for those without technical expertise.
5. Battery Overvoltage Protection:This lipo polymer li-ion charger protection board incorporates battery overvoltage protection, which actively monitors and prevents the battery from reaching unsafe voltage levels. This feature enhances the longevity and overall performance of your lithium batteries.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: Step-Up Boost LiPo Polymer Li-Ion Charger
scope:

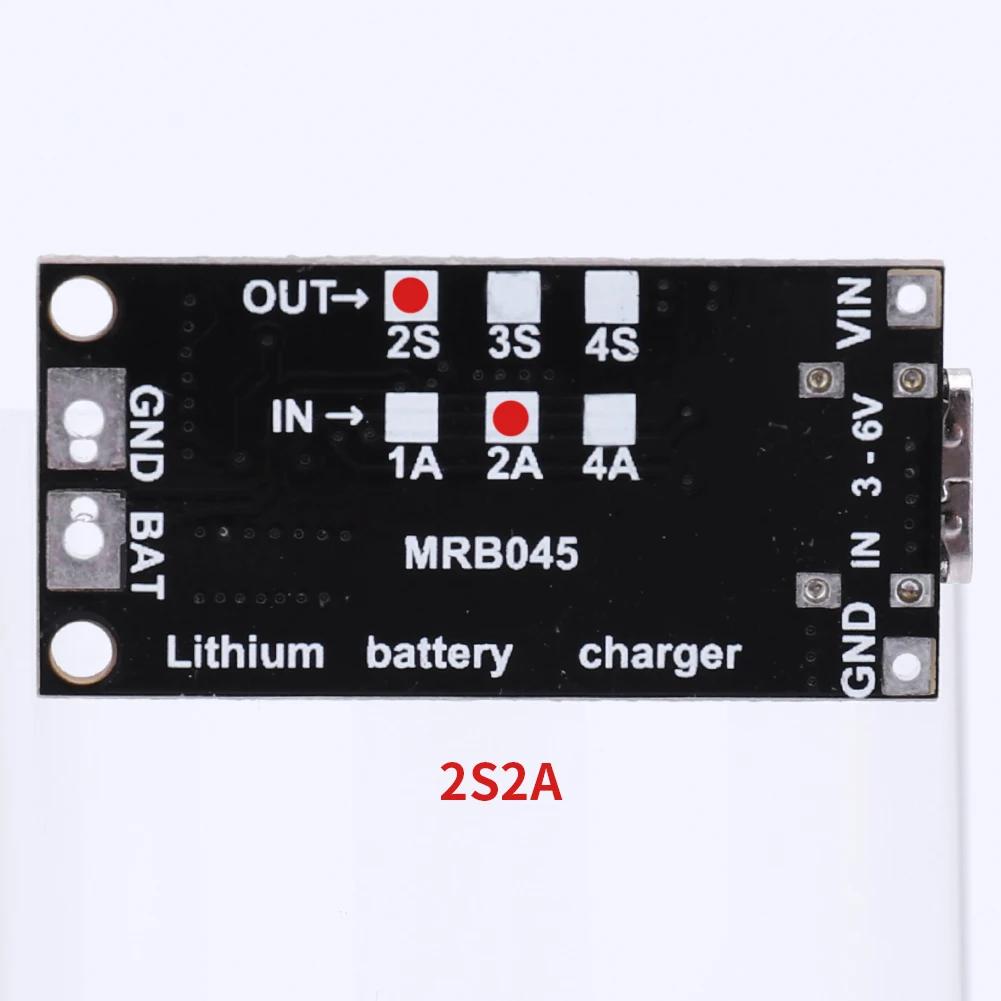

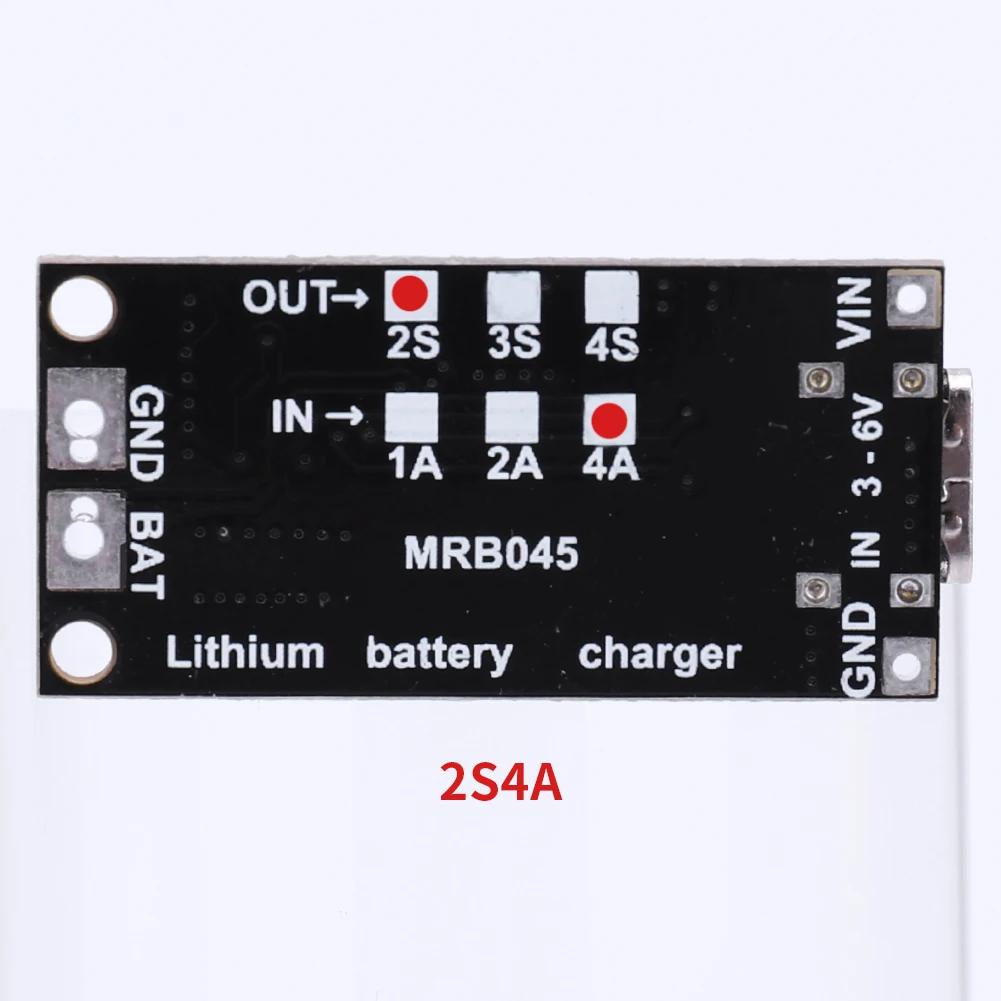

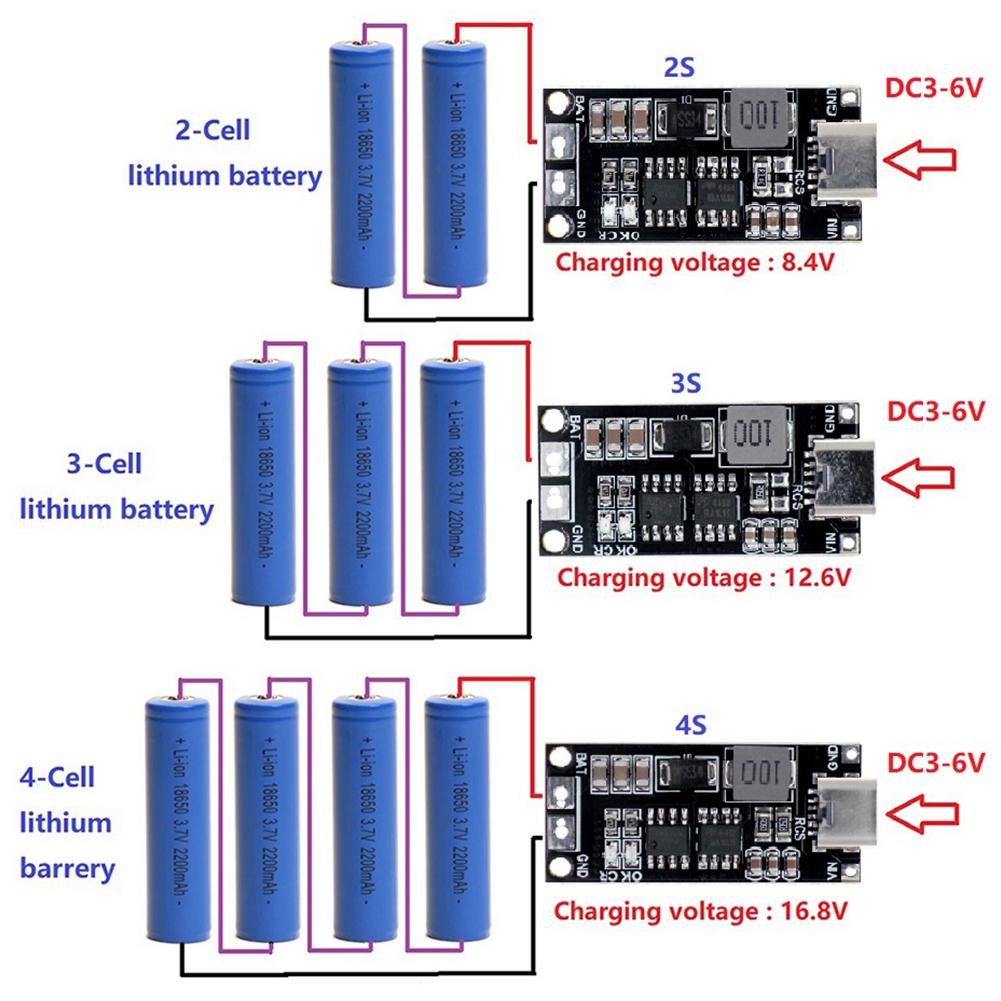

2-Cell(2S) 8.4V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage: 8.4V
Charging current: 0.55A(1A Version);1.1A(2A Version);2.2A(4A Version)

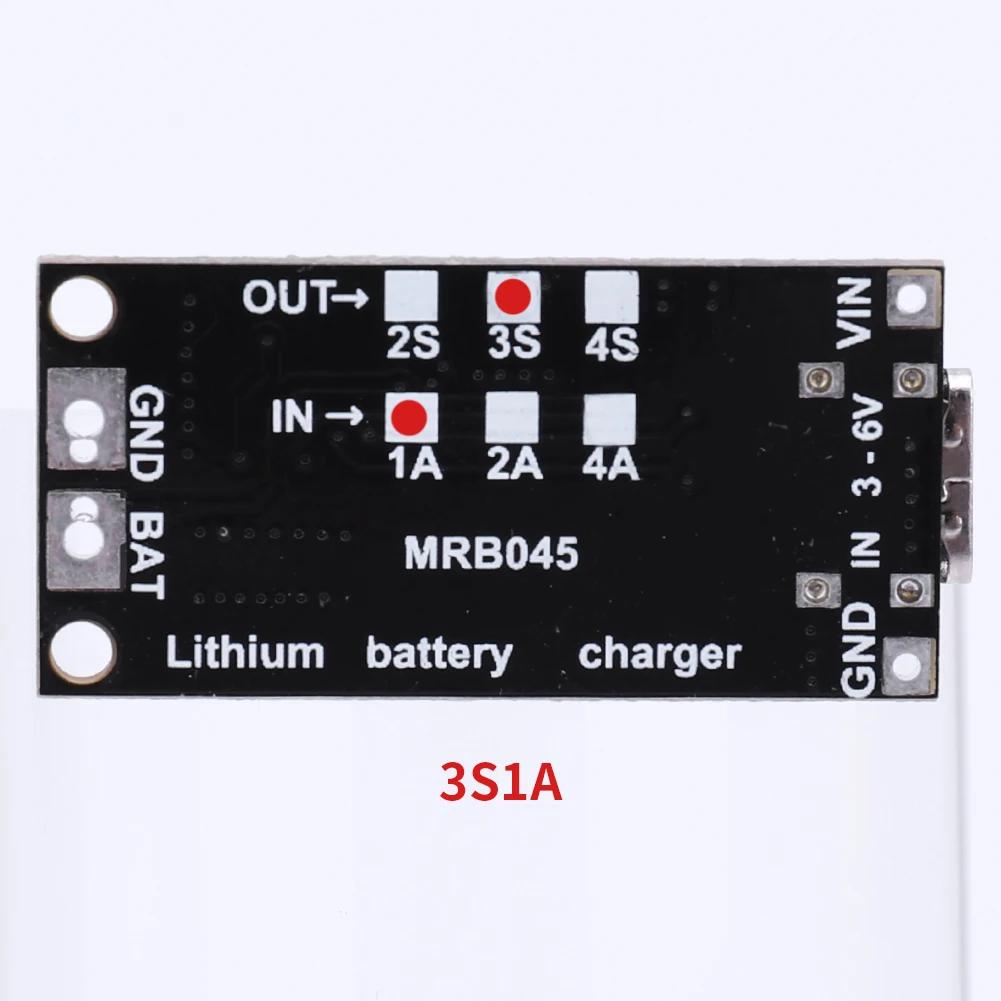

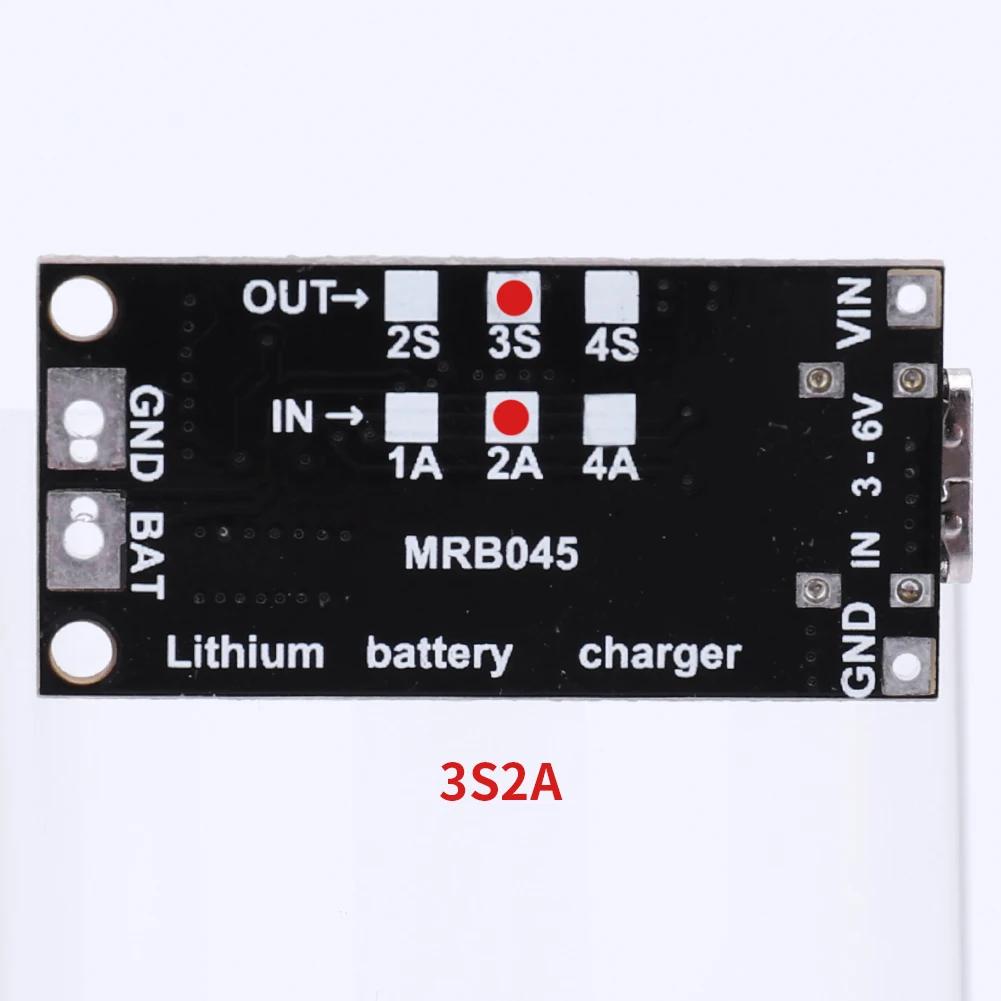

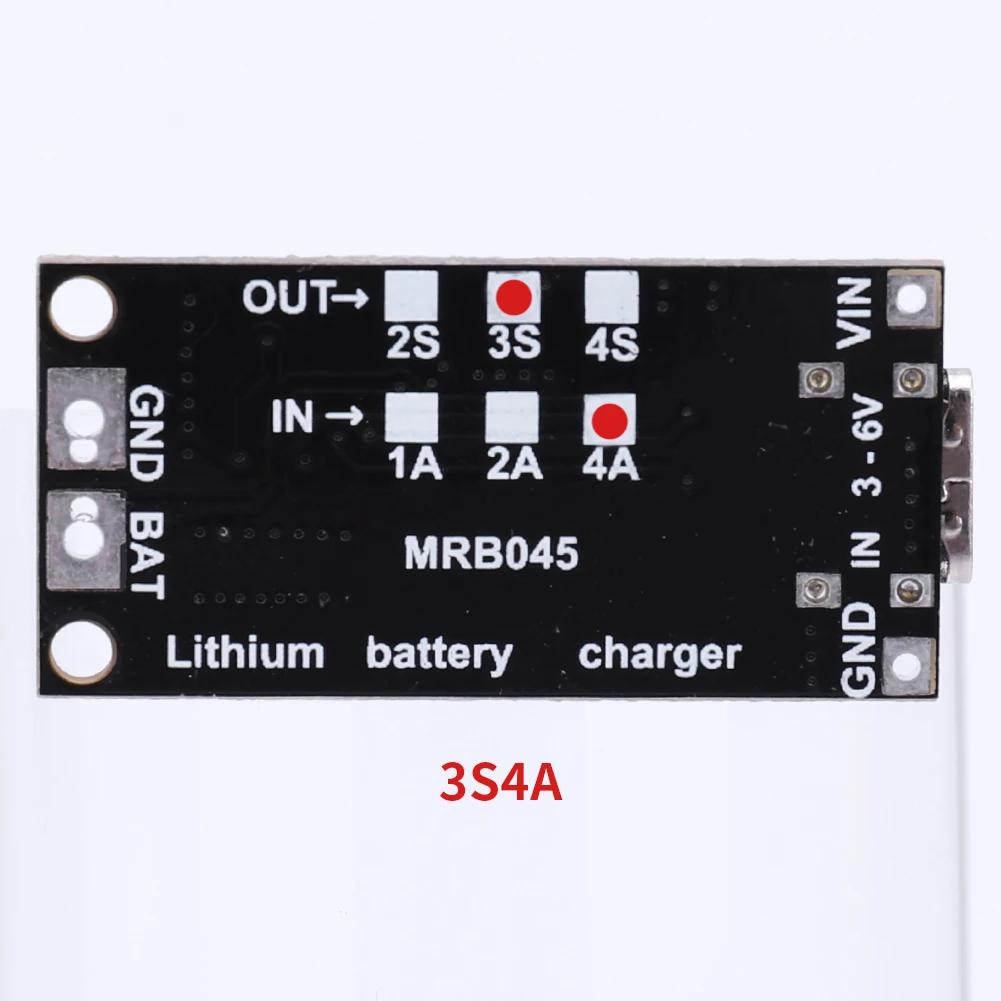

3-Cell(3S) 12.6V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage: 12.6V
Charging current: 0.37A(1A Version);0.74A(2A Version);1.48A(4A Version)

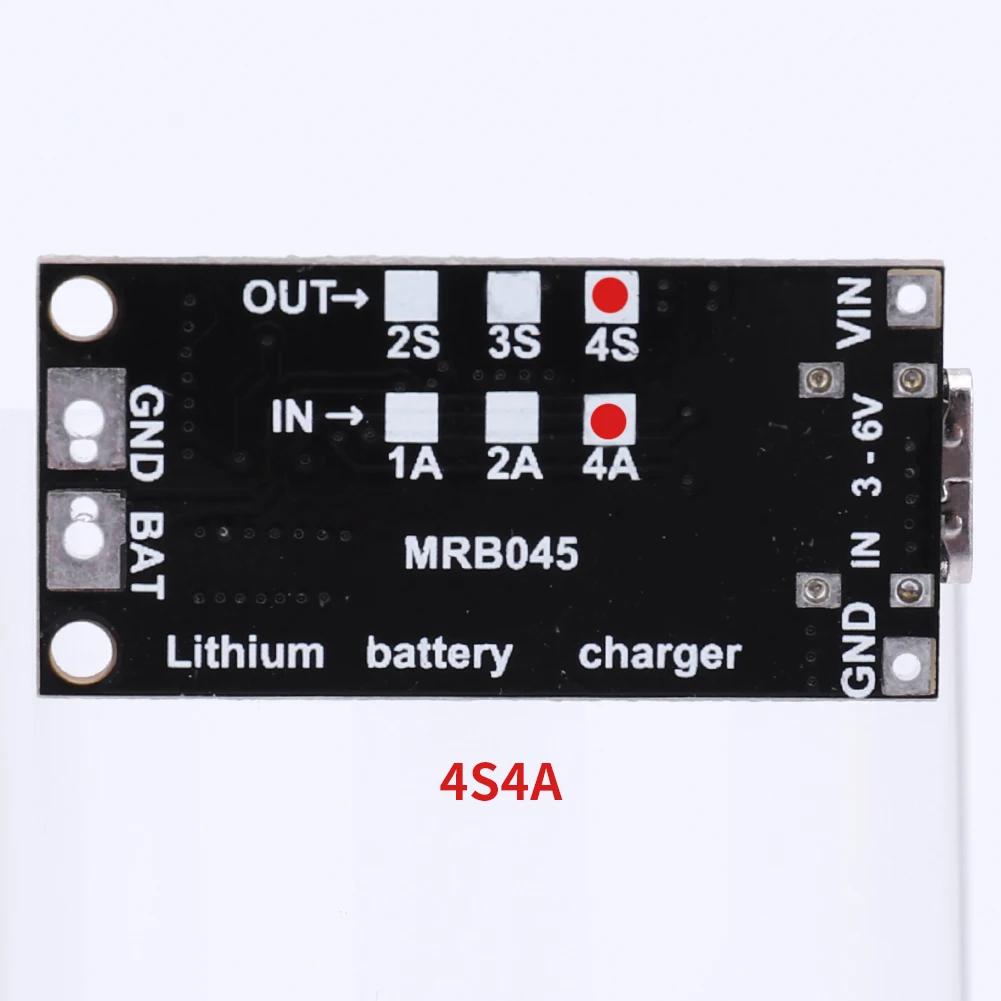

4-Cell(4S) 16.8V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage: 16.8V
Charging current: 0.28A(1A Version);0.56A(2A Version);1.12A(4A Version)
Battery Overvoltage Protection
LED indicator: ''CR'' LED is charging status indication; ''OK'' LED is fully charged or constant voltage mode
Working environment temperature -40°C to +85°C

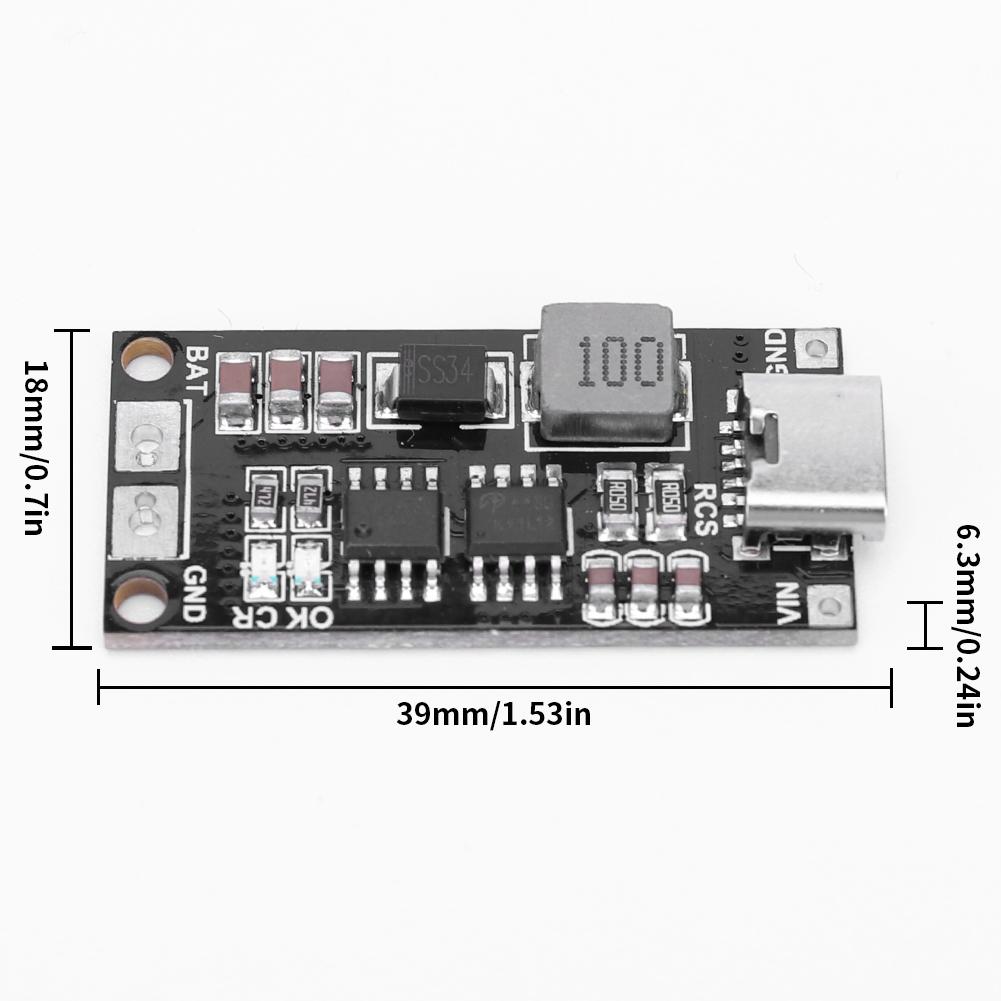

Size: 39x18x6.3mm/15.35x7.09x2.48inch
Weight: 5g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Step-Up Boost LiPo Polymer Li-Ion Charger
