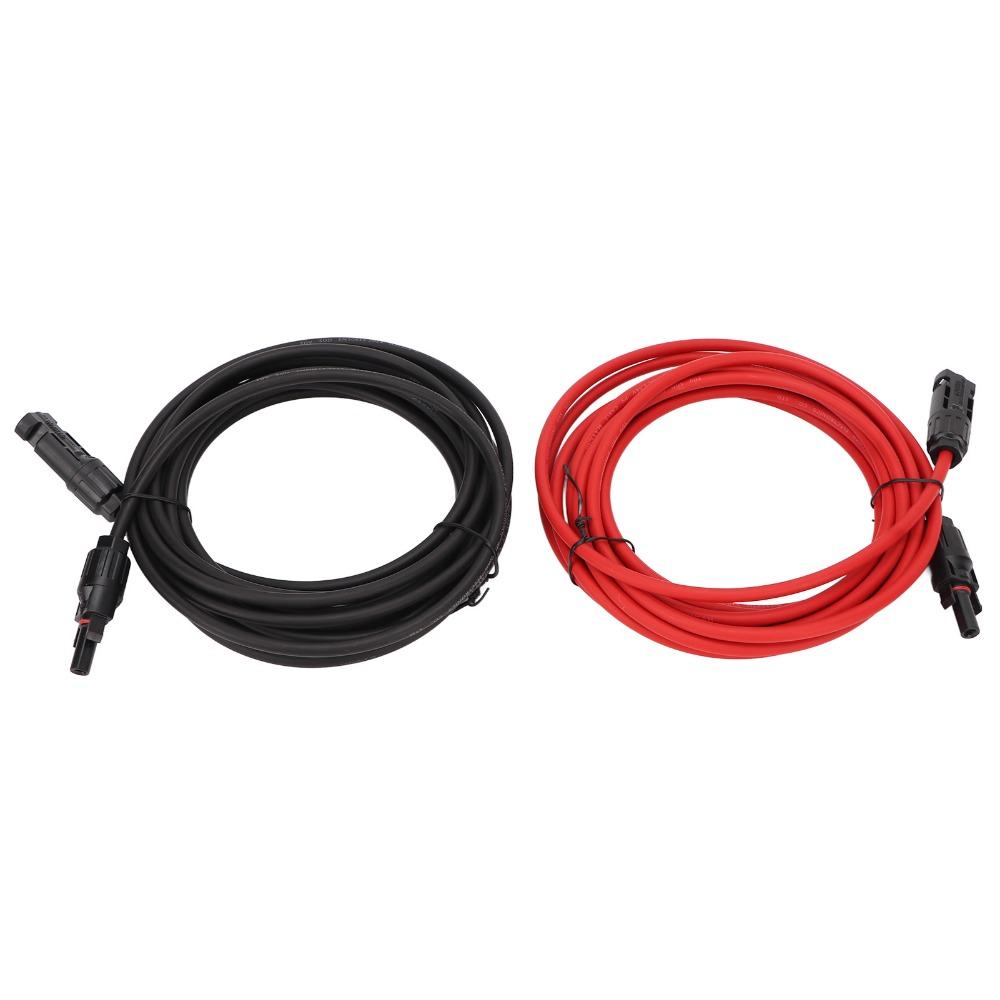

12AWG Wire Solar Panel Wire Photovoltaic System Cable Solar Energy System

Label:Yes -Main Purpose: Adopting strict production standards, this photovoltaic cable is widely used for the connection between solar panel modules and inverters (or batteries). -Excellent Material: Made of environmental PPE and high purity without oxygen copper, ultra low resistance, double layer insulation, erosion and high voltage proof. -Applicable Scenes: USuitable for PV power station systems with a rated voltage of 1500V, the cable delivers high power generation efficiency and is extensively applied in residential and RV solar photovoltaic systems. -With Connector: One end of the extension cable is equipped with a connector for seamless connection to solar panels, while the other end is stripped for direct wiring to solar charge controllers. -Safe Manipulate: With exquisite workmanship, it ensures low eccentricity and uniform thickness of the wire, effectively avoiding current breakdown and fire, ensuring safe manipulate.

Specification: Item Type: Solar Panel Wire Material: PPE, Copper Working Current: 30A Withstand Voltage: DC1000V Wire Diameter: 12AWG (4mm²) Contacts Resistance: ≤0.35mohm Insulation Resistance: >500mohm Ambient Temperature: -40-90℃ Guard Class: IP68 Insertion Force: ≤50n Pull Out Force: ≥50n Total length of the line:6 meter/19.7ft (Black 3 Meter + Red 3 Meter) Color:Red.Black

Note: Manual measurement, the actual size shall prevail.

Package List 2 x Solar Wires
