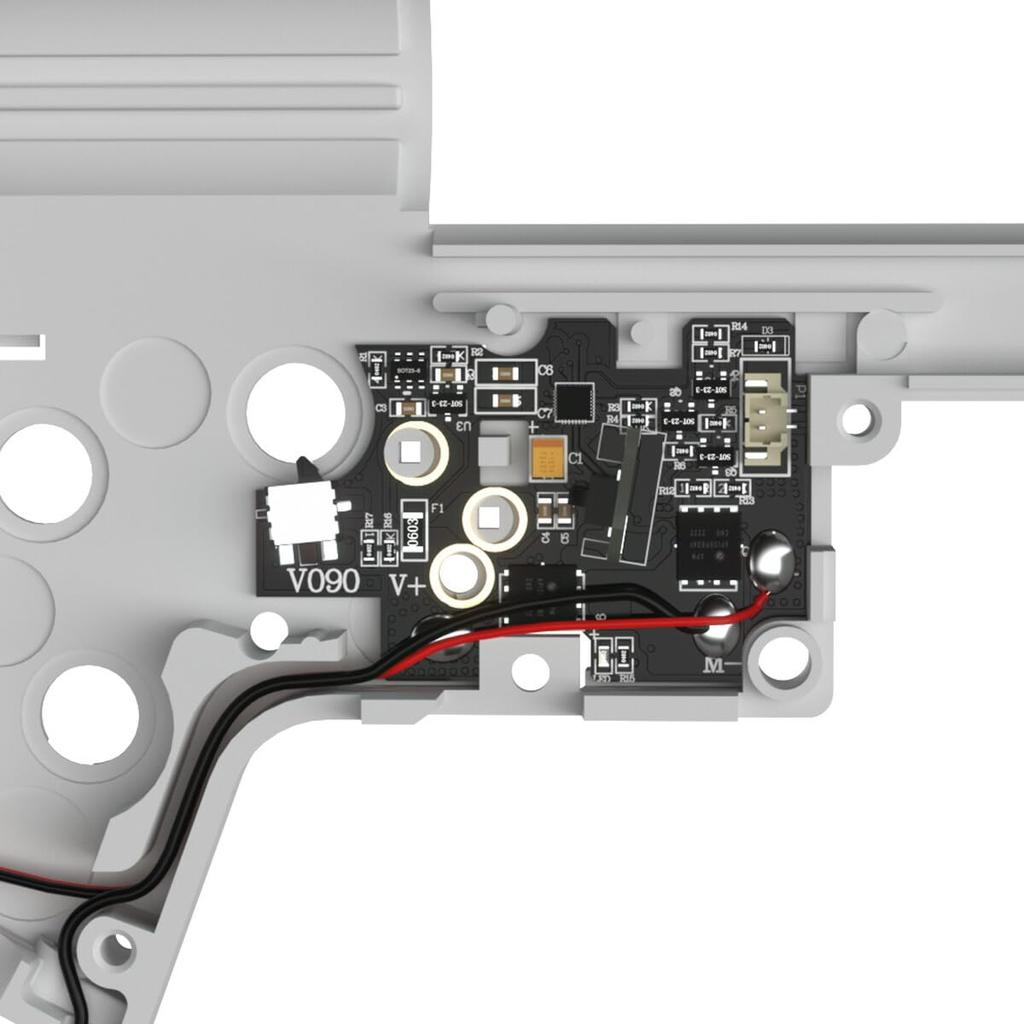

Eshooter Kestrel V2 BASIC Electric Gun with Electronic Trigger Ver. 2 (Official Japanese Product/Rear Wiring) ETU Pre-cocked Kestrel V2

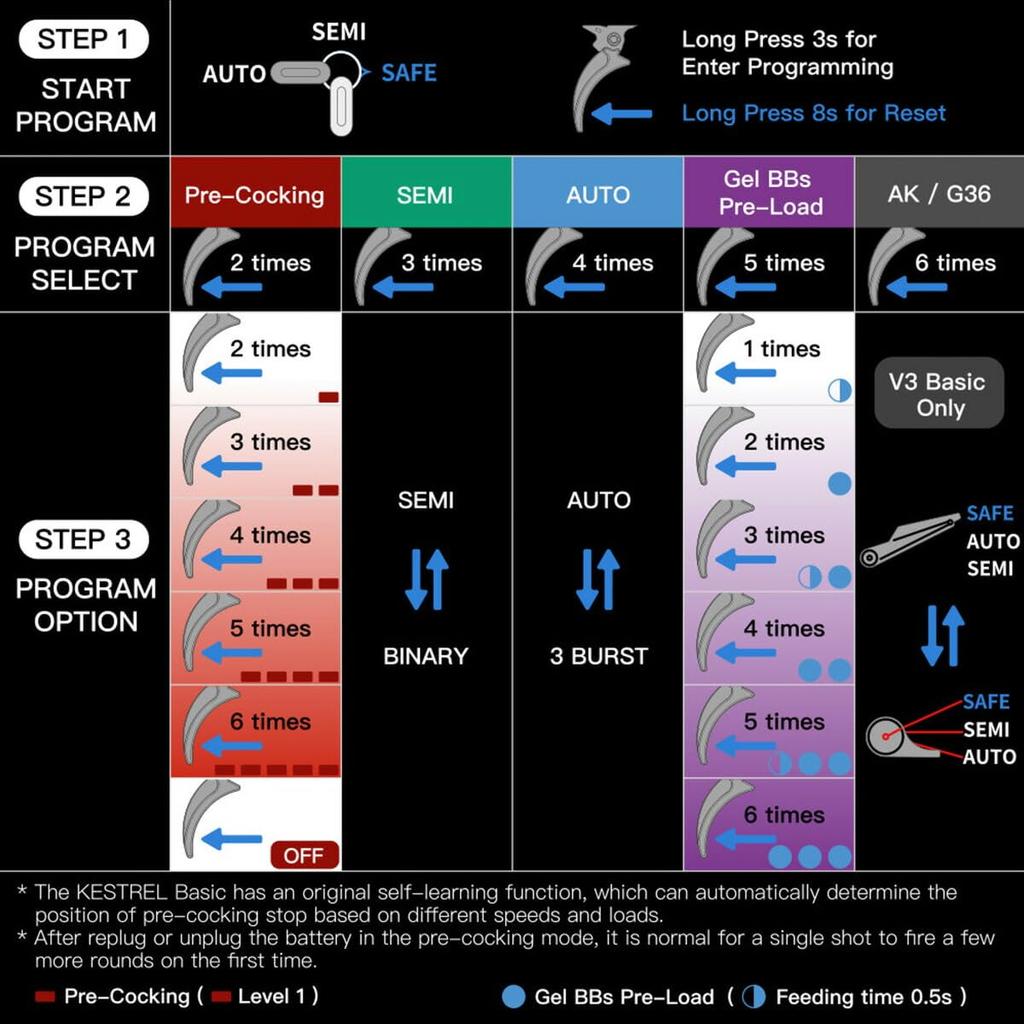

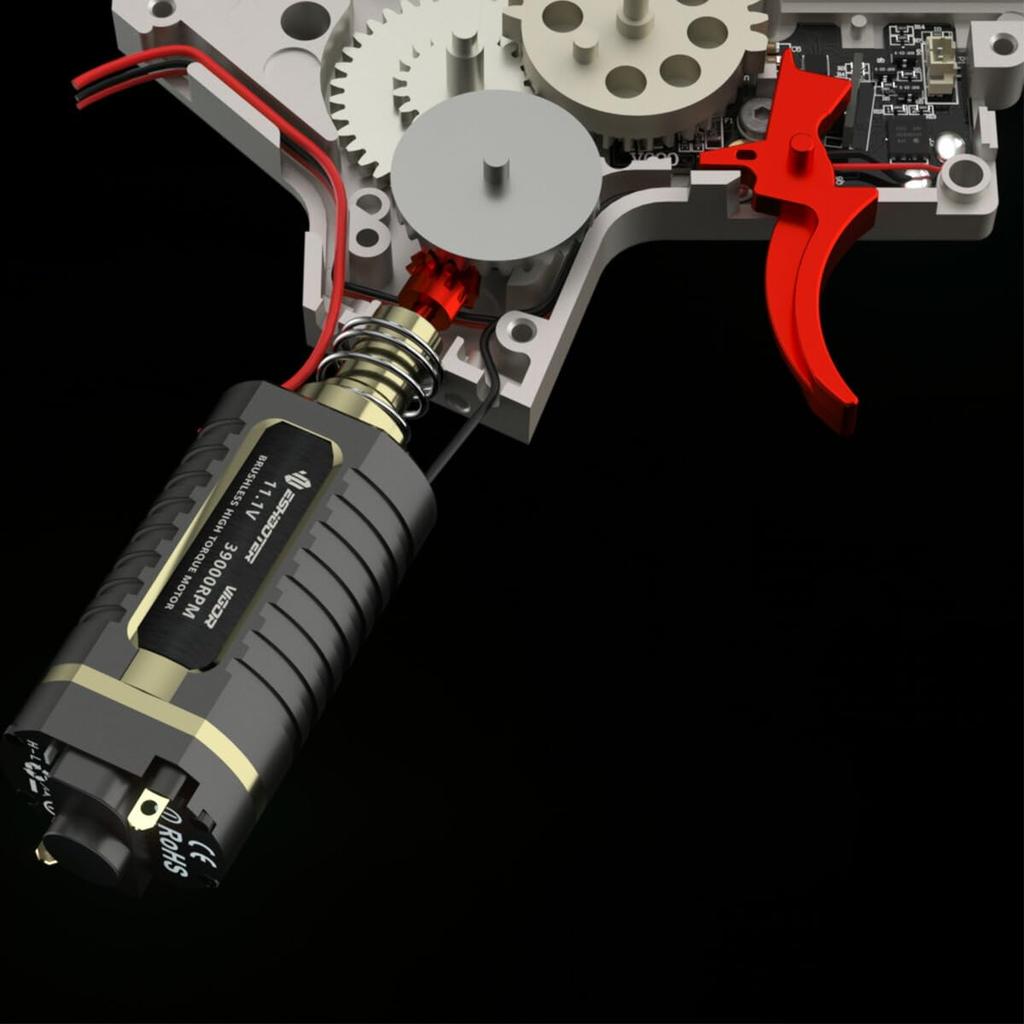

It features the latest layout for airsoft gun tuning. While the cut-off switch is mechanical, it is cleverly positioned, allowing detection and pre-cocking settings that are compatible with high-cycle and DSG engines. The pre-cocking level can be set to five levels, for a total of six if the release position is added, and it features a unique learning function that automatically adjusts the pre-cocking position according to speed and load. Switching between semi-auto and binary trigger (pulling the trigger to fire one shot, releasing it to fire one shot), and full-auto with 3-round burst can be set. It is equipped with the automatic active brake also featured in the high-performance Kestrel V2, and is natively compatible with brushless motors, allowing for further customization and tuning.

-Kestrel V2 Basic Feature Overview-

- 5-Level Adjustable Pre-cocking - Automatic Pre-cocking Compensation - Active Brake - Sleep Mode - Low Voltage Warning - Battery Protection - Cycle Detection - Sensor Calibration - MOSFET - Brushless Motor Compatible - T-Plug Connector

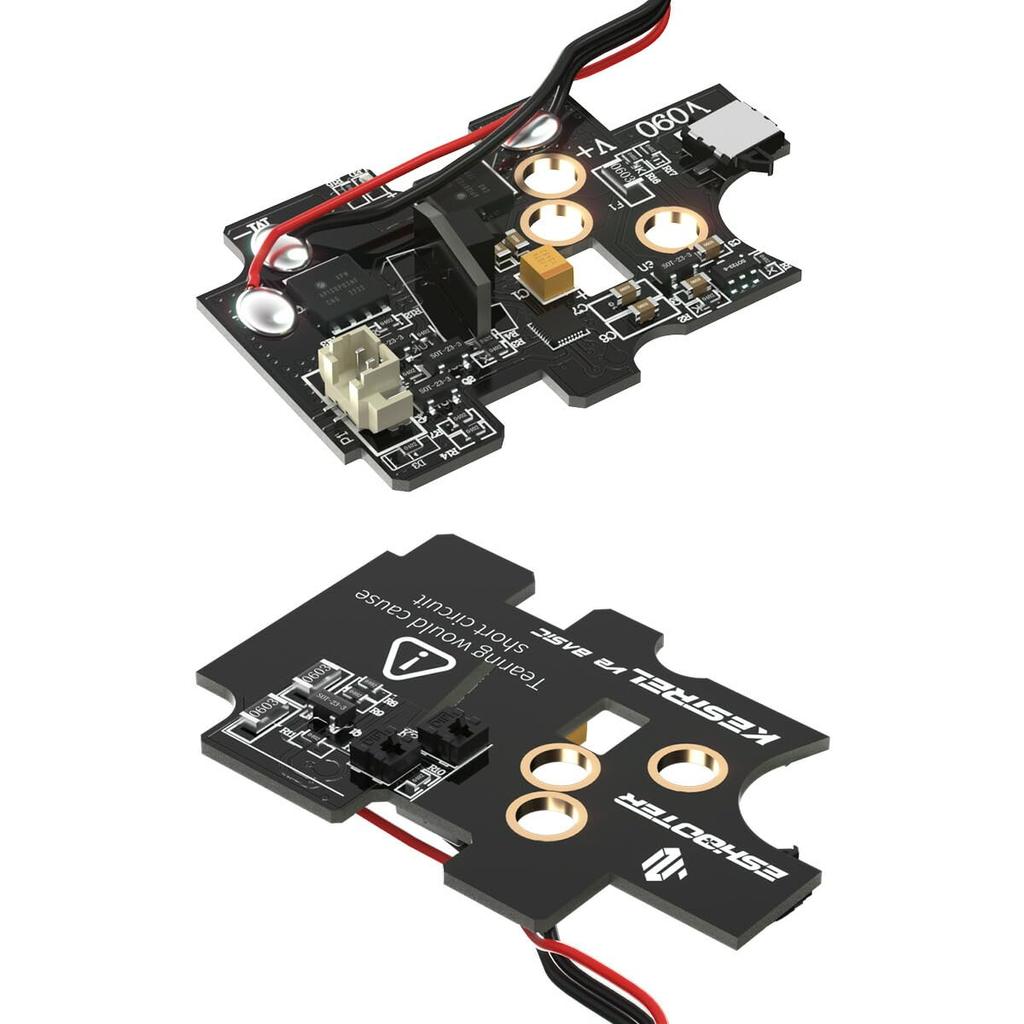

-Kestrel V2 Specifications- - Compatible Voltage Range: 3.75-17V - Current Draw: 20mA - Dimensions: 47.4 x 28.7 x 1mm - Operating Temperature: -15 to 100°C - Humidity: ≤80%

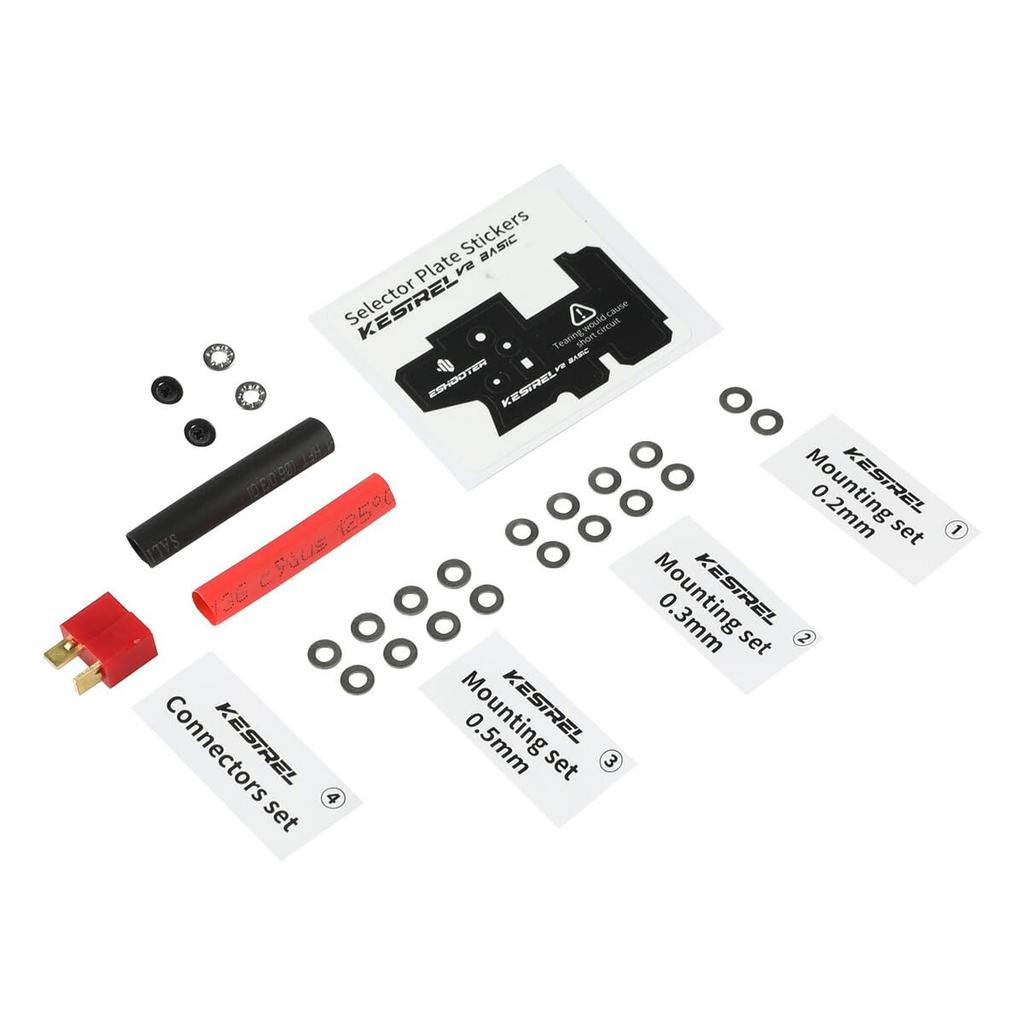

★Product Contents Eshooter Kestrel V2 BASIC Unit (1) - Shim Washer - Lock Washer - Screws - Heat Shrink Tubing - T-Plug Connector (Female) - Spare Sticker - Installation Instructions (English)

*Installation requires disassembly of the electric gun. *The warranty does not cover damage caused by incorrect installation, water exposure, reverse connection, short circuits, or customer modifications. *Please note that the electronic circuit board is designed for use with Li-Po batteries and is not compatible with nickel-metal hydride batteries. *Please remove the battery when not in use. Leaving the battery connected will continue to energize the electronic circuit board, leading to malfunction. *Please be sure to read the Eshooter website carefully before use. ◆Product Features: This is the latest electronic trigger unit, a more affordable version of the high-performance Kestrel V2 with reduced functionality. It features an updated layout for tuning electric guns. While the cut-off switch is mechanical, it is cleverly positioned, allowing for detection and pre-cocking settings compatible with high-cycle and DSG guns. ◆Details: The pre-cocking level can be set to six levels, including the release position, in five stages. Its unique learning function automatically adjusts the pre-cocking position based on speed and load. It can be set to semi-auto, binary trigger (pulling the trigger to fire one shot, releasing it to fire one shot), or full-auto with three-round burst. It features the automatic active brake also featured in the high-performance Kestrel V2, and native compatibility with brushless motors allows for further customization and tuning. ◆Kestrel V2 Basic Feature Summary: ・5-Level Pre-cocking, Automatic Pre-cocking Compensation, Active Brake, Sleep Mode, Low Voltage Warning, Battery Protection, Cycle Detection, Sensor Calibration, MOSFET, Brushless Motor Compatible, T-Plug Connector ◆Basic Specifications: ・Compatible Voltage Range: 3.75-17V, Current Draw: 20mA, Size: 47.4 x 28.7 x 1mm, Operating Temperature: -15 to 100°C ★Micro Trigger Switch: The trigger switch is mechanical and responds with minute strokes, allowing for tuning to create a hair trigger. ★High-Efficiency Wiring: High-efficiency wiring and a T-Plug connector are standard for improved power transmission efficiency. ★Safety Features: After approximately one hour of idle time, the motor enters sleep mode to prevent battery over-discharge and resumes operation upon reconnection. The motor vibrates to indicate low battery levels. (Under 6V, it vibrates for two seconds; under 8.5V, it vibrates five times every three seconds.) ★Self-Test Function: LEDs indicate the status of each switch, making troubleshooting easy. Compatible Models: Developed based on the standard Ver. 2 gearbox, it is compatible with Ver. 2 gearboxes from Tokyo Marui and other manufacturers both in Japan and overseas (modifications may be required). Simply installing the Kestrel V2 will dramatically improve the performance of your AEG, giving you a clear advantage in airsoft games.
