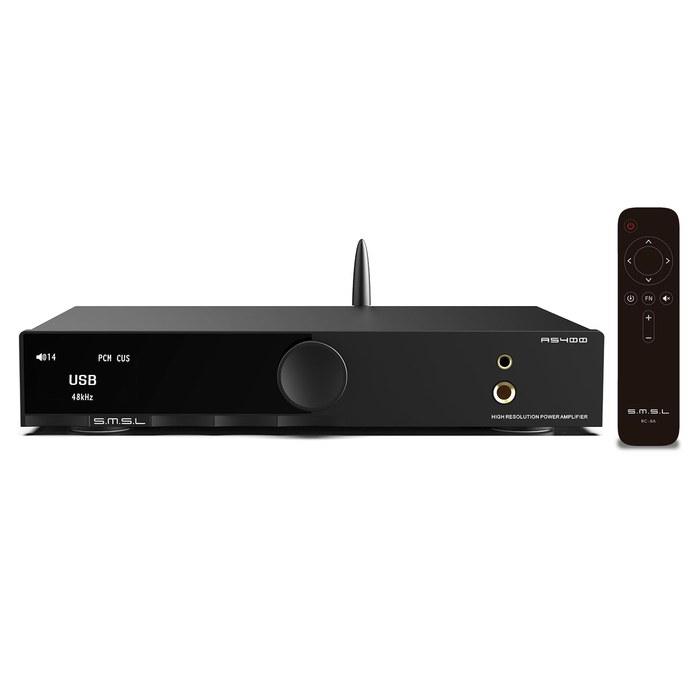

SMSL AS400 165W X2 Power Amplifier & MQA DAC & Headphone Amplifier with IC MA5332MS & IC CS43131 2.1ch, Subwoofer Output, Digital Stereo

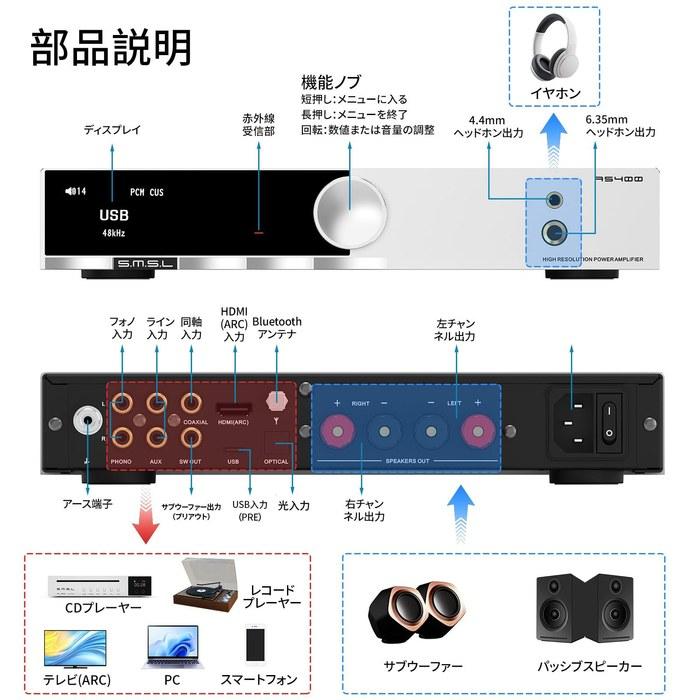

【Product Specifications】: Input Terminals: RCA/Bluetooth/USB/Optical/Coaxial/PHONO/HDMI (ARC) THD+N: 0.003% SNR: 107dB Channel Separation: 98dB Input Sensitivity/Input Impedance: 280mW/22kΩ Output Power: Stereo 165W x 2 (4Ω) / 85W x 2 (8Ω) USB Transmission: USB 2.0 (Asynchronous Transfer) USB Compatibility: Windows 7/8/8.1/10/11, Mac OSX, Linux MOA Decoder: USB/Optical/Coaxial MQA-CD Decoder: Optical/Coaxial Bit Depth: USB: 1bit 16-32bit, Optical/Coaxial: 1bit 16-24bit Sampling Rate - USB: PCM: 44.1-768kHz, DSD: 2.8224-11.2896MHz Sampling Rate - Optical/Coaxial: PCM: 44.1-192kHz, DSD: DSD64 (DoP) Power Consumption: 40W (at standard volume) Dimensions: 210.4 x 46 x 254mm (Width x Height x Depth) Weight: 1.568kg

・【All-in-One Hi-Fi Perfection】The [SMSL] AS400 is an innovative Hi-Fi device integrating a power amplifier, DAC, headphone amplifier, and MM phono amplifier. It generously incorporates world-class components such as the latest MA5332MS high-power amplifier chip from German Infineon, the CS43131 DAC from Cirrus Logic, and the high-precision volume chip NJW1194 from Japanese JRC. It also fully decodes MQA and MQA-CD, faithfully reproducing the artist’s original intent – truly an ideal unit for enjoying “original sound.” ・【Immersive 2.1ch Sound】With a powerful stereo output of 165W x 2 plus a SW subwoofer output, the AS400 delivers excellent performance as a 2.1ch system. This system is meticulously designed to provide ample low-frequency response and rich sound quality. Bluetooth 5.1 supports high-quality codecs including LDAC, APTX/HD, SBC, and AAC, offering high-quality audio playback and control. ・【High-Resolution Playback with the Latest XMOS XU-316, Revealing Every Nuance】Supporting PCM up to 32bit/768kHz and DSD up to DSD256, it guarantees high-quality audio playback from USB-connected devices. The AS400 features eight EQ audio modes (DirectSuper Bass, Tone, Rock, SDB, Soft, Bass, Clear) and five filters, allowing you to tailor the audio output to your personal preferences and the genre of music, providing a rich and immersive listening experience. ・【Versatile Input/Output Terminals Compatible with a Wide Range of Devices】The AS400 is equipped with a wealth of input options including USB, Optical, Coaxial, Bluetooth, HDMI (ARC), RCA, and PHONO, allowing seamless connection with diverse devices such as smartphones, TVs (ARC), CD players, DACs, passive speakers, and MM records. Furthermore, 4.4mm and 6.35mm headphone amplifier outputs unlock its full potential for headphone audio. ・【Excellent Compatibility with TVs via HDMI (ARC)】Equipped with an HDMI (ARC) terminal, connecting to your TV is extremely easy. It achieves perfect synchronization of audio and video, allowing you to enjoy movies and live footage more realistically. It also supports remote control operation, providing smart and convenient usability in a home theater environment. The AS400 can be the centerpiece of your living room. ・【Built-in MM Phono Amplifier, Preserving the Warmth of Analog】The built-in low-noise MM phono amplifier carefully amplifies the delicate analog signal from records. While suppressing noise, it allows you to enjoy the soft and warm sound quality unique to vinyl. You can create both digital and analog playback environments with a single unit.

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device's requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
