Features:
1. Intelligent Automatic Scanning Digital Multimeter: This pocket-sized 35/6-digit RMS automatic scanning digital multimeter requires no for dialselection. It automatically identifies and measures input voltage/current/resistance.
2. Multifunctional: This series of instruments can automatically identify AC/DC voltage, AC/DC current, and resistance without any switching operations; it also allows manual switching to measure parameters such as capacitance, diodes, and continuity tests, making it a high-performance tool and instrument.

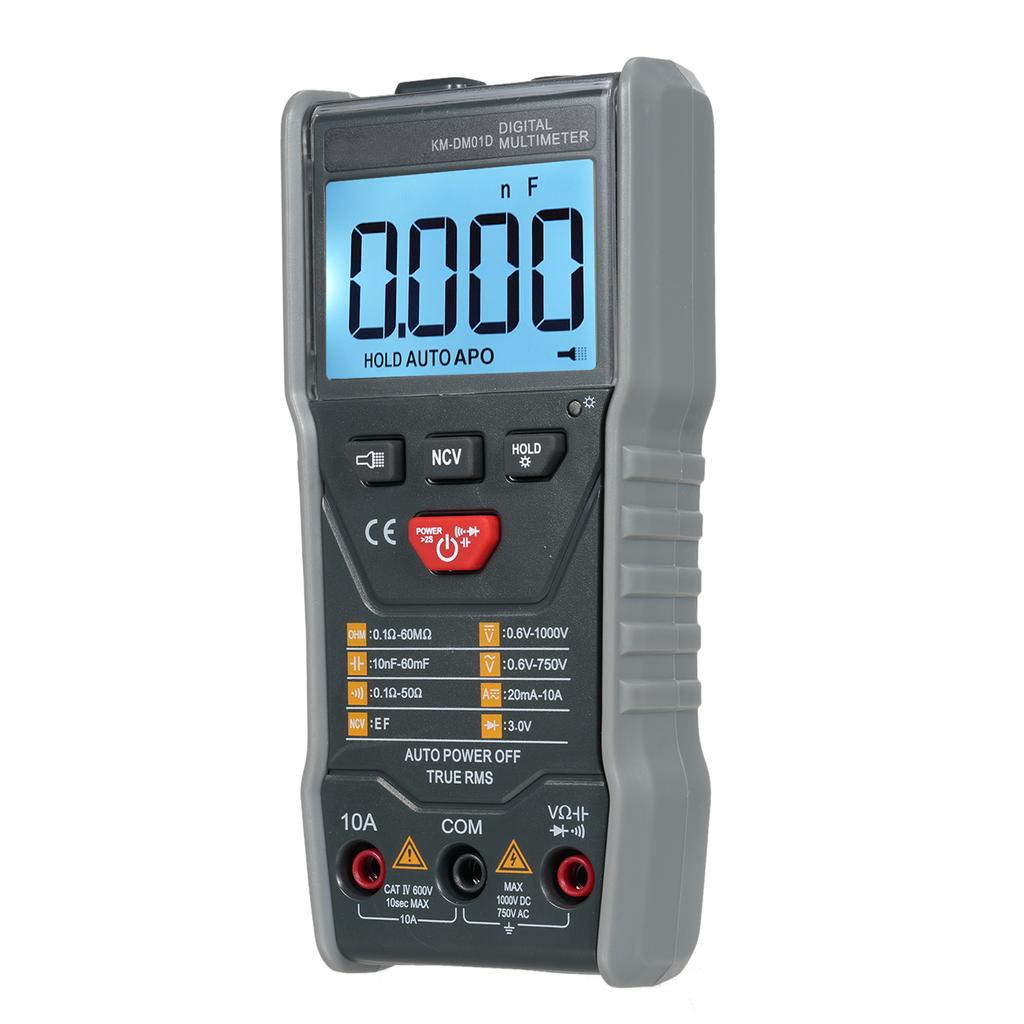

3. Large LCD Display: This instrument features a large LCD display with 6000 characters, clear handwriting, no parallax, and backlighting, making it easy for users to read measurement values in dark environments.
4. NCV Voltage Sensing Detection: When set to the NCV range, an alarm will sound when nearby AC voltage is detected.
5. Test Jacks: Finely crafted and rationally designed, test insert smoothly and securely, and include a maximum input value indicator.

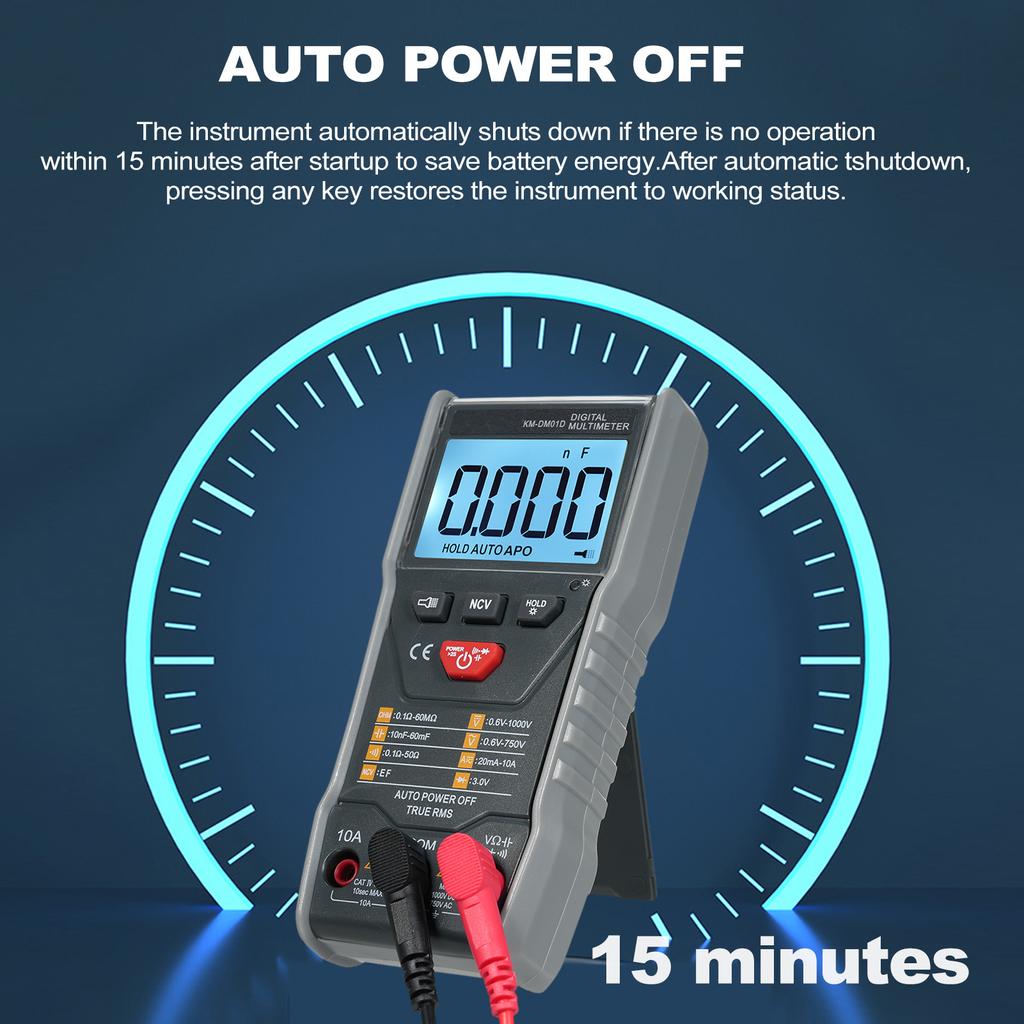

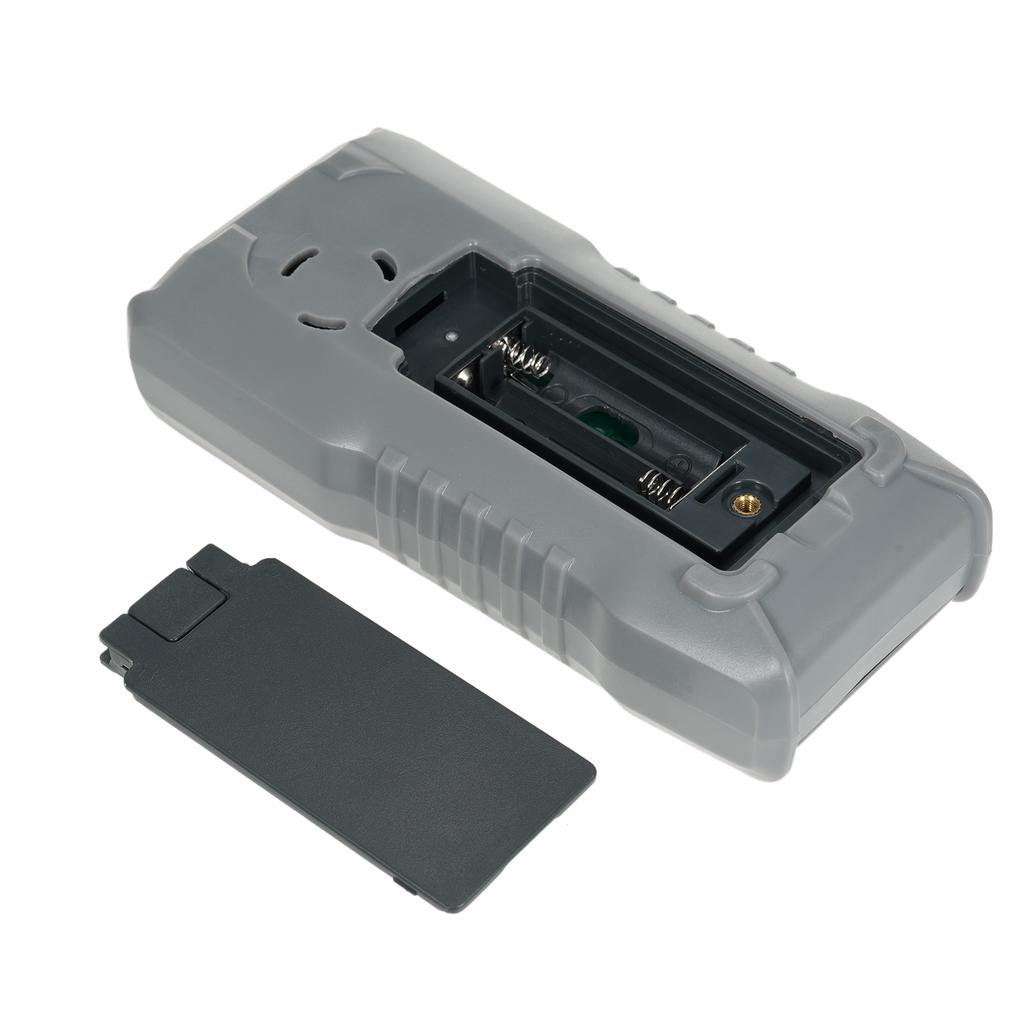

6. Automatic Power Off: Powered by AAA batteries, the product automatically shuts off and enters sleep mode after approximately 15 minutes of inactivity. It can be restarted by pressing any button in automatic power-off mode.
7. Data Hold: One-button pause function continuously displays measurement data for easy data recording.
8. High-Quality Shell: Made of high-quality ABS material with a soft silicone protective case, it is shock-resistant, drop-resistant, and comfortable to hold.
9. Compact and Precise: Compact in size, similar to a mobile phone, it is easy to use and carry. Built-in high-performance chip ensures measurement accuracy.

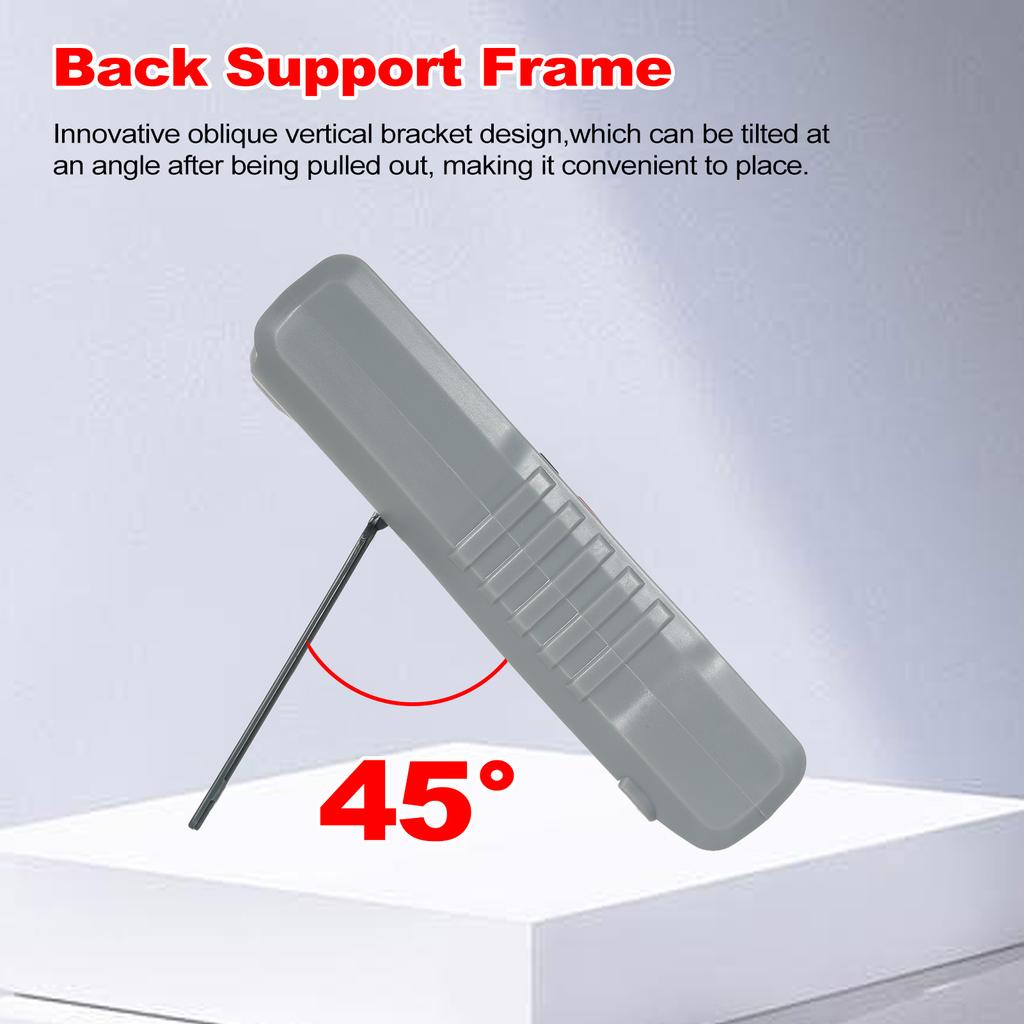

10. Back Support: Innovative tilting stand design; when pulled out, it can be tilted at a certain angle for easy placement.
Specifications:

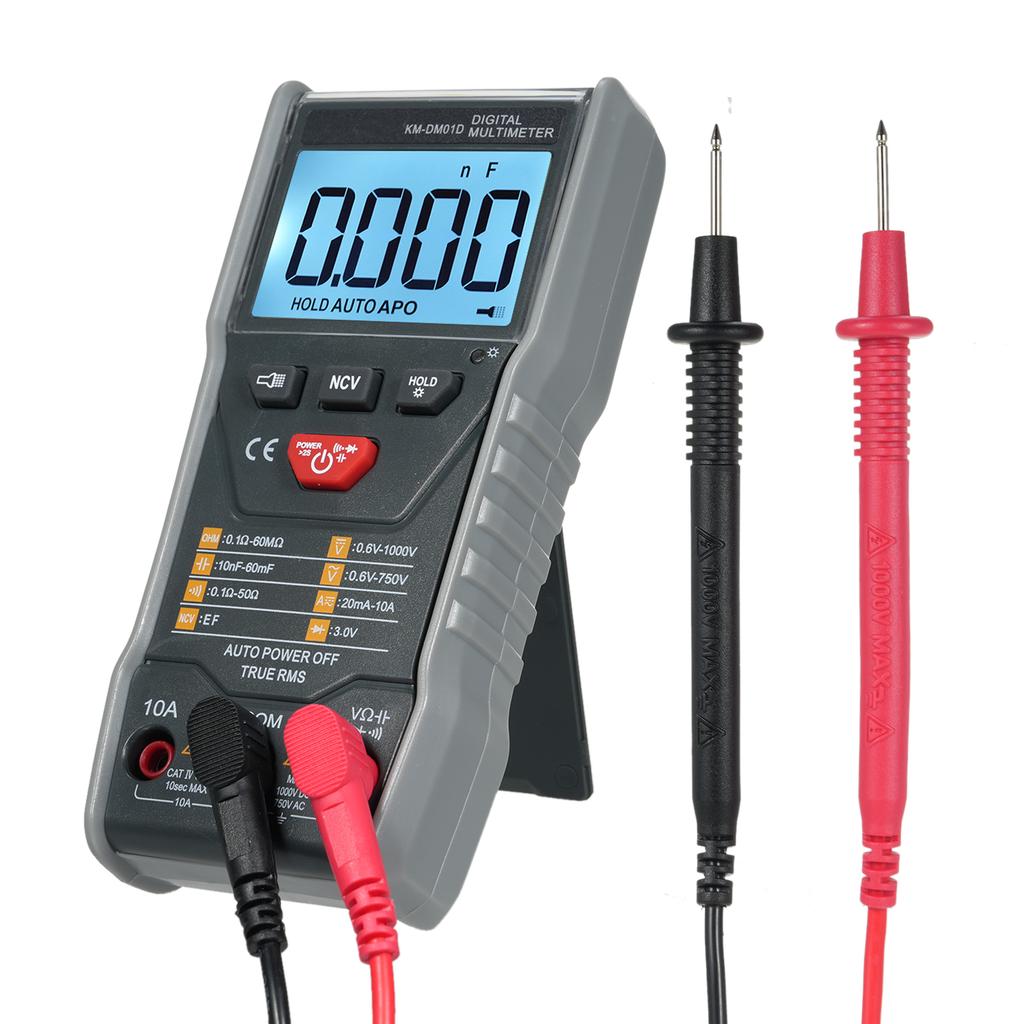

Part Name: KM-DM01D Multimeter
Material: ABS
Color: Black
Size: 142 * 70 * 32 mm / 5.59 * 2.75 * 1.26 inches
DC Voltage: 6V / 60V / 600V / 1000V
AC Voltage: 6V / 60V / 600V / 750V
DC Current: 600uA / 6000uA / 60mA / 600mA / 10A
AC Current: 600uA / 6000uA / 60mA / 600mA / 10A
Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
Capacitor: 10nF / 100nF / 1uF / 10uF 100uF / 1mF / 10mF / 60mF
Duty Cycle: 0.1%-99%
Display: LCD
Maximum Display: 5999 (3 5/6) digits, Auto Polarity Display
Measurement: Dual-Integral A/D Conversion
Sampling Rate: Approx. 3 times/second
Overrange Display: Highest Significant Digit is "0L"
Operating Environment: 0~40℃, Relative Humidity <80%
Package Contents:
1*Multimeter
2*Test
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
