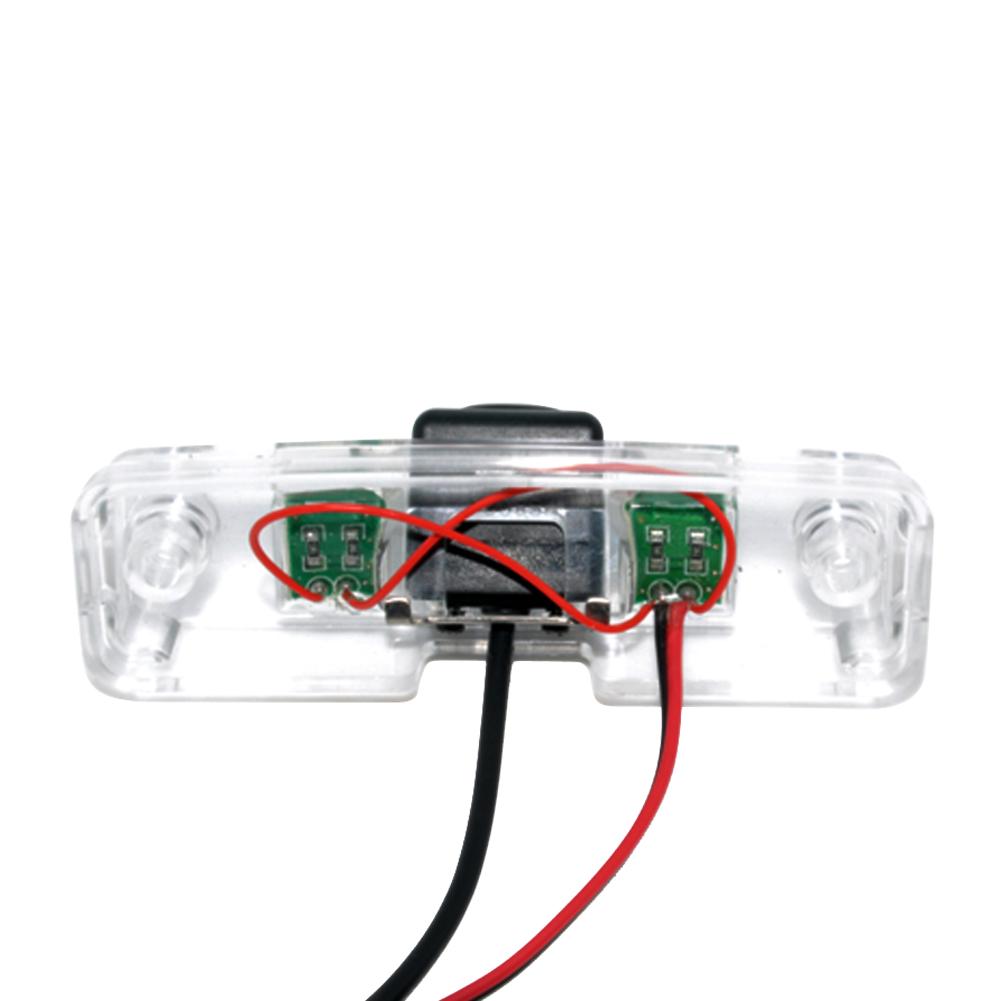

HD CCD Car Camera Rearview Reversing Parking System Camera for Subaru Forester Outback Impreza Sedan

All our car cameras will be tested 100% before sending to you.

Specification: Image sensors: 1/4" color CCD TV System: NTSC & PAL Minimum illumination: <0.1 AGC: Auto BLC: Auto White Balance: Auto Video Color: Colorful Effective Pixels : 728x512 Resolution : 480TV lines Video Output: 1.0Vp-p,75ohm Electronic Shutter: 1/60(NTSC)-1/10000S, 1/50(PAL)-1/10000S S/N ratio: Better Than 48db Lens Angle: 170 Degree Waterproof Class:Ip 68 Operation Temperature: -20°C+80°C RH95% Storage Temperature: -30°C+80°C Working Power (DCV): 12 Current consumption: 90mA Max

About the TV systems of the car rear view camera. Please check that if your monitors can support NTSC or PAL .If your monitor only can support NTSC or PAL ,Please leave us the message which TV system do you need in one business day after you make the payment . Please check your device size before ordering Default with guide lines，if you want it removed，please contact us

How to install : Fix the camera to a special design hole in your car. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative. Connect the video cable of the camera to the extension cord. Connect the extension cord to your car monitor. You will see the images when your car is in reverse shift.

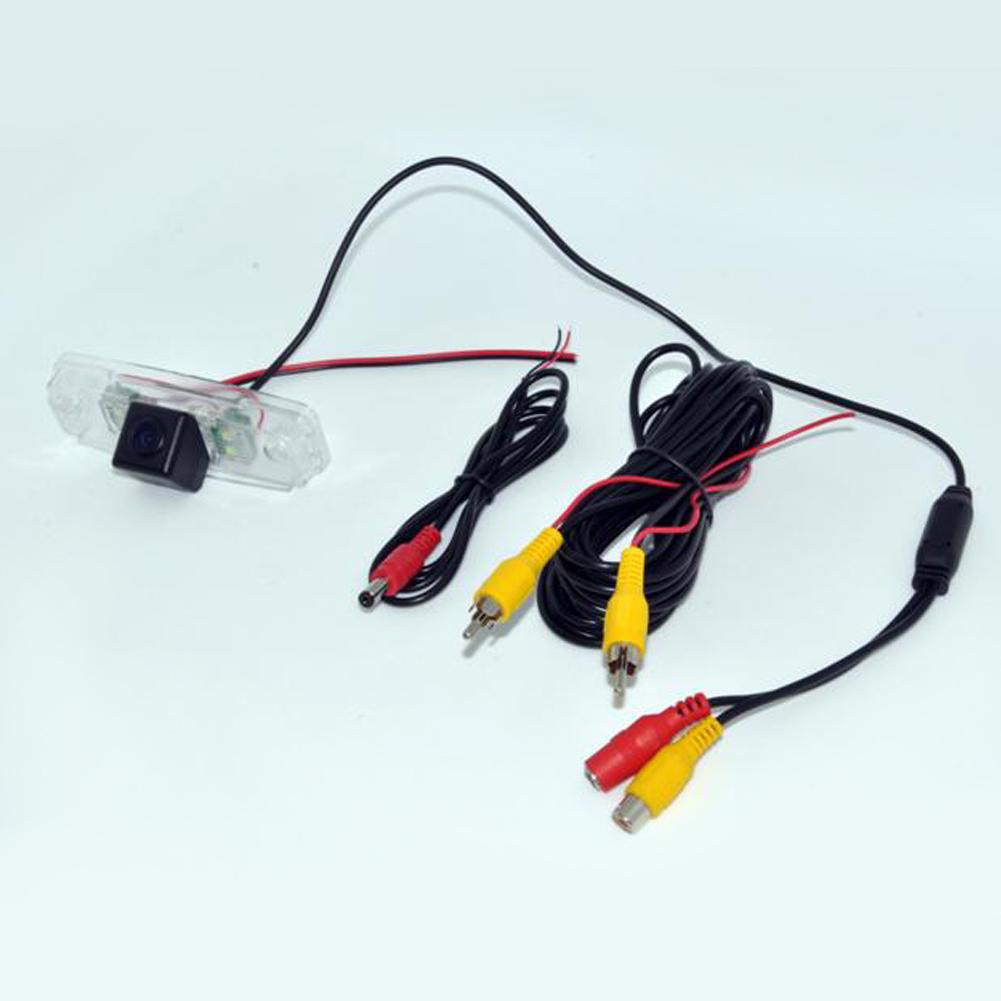

Package include : 1 x CCD CHIP Car Rear View Camera 1 x 6M video cable 1 x power supply cable 1 x user manual
