[Product certified with the Japan Technical Standards TELEC Mark, certification number: 020-170179] There are many illegal products in circulation that ignore the Radio Law, but this product has been certified with the Japan Technical Standards TELEC Mark, which complies with the Radio Law in Japan, so using it will not violate the Radio Law.

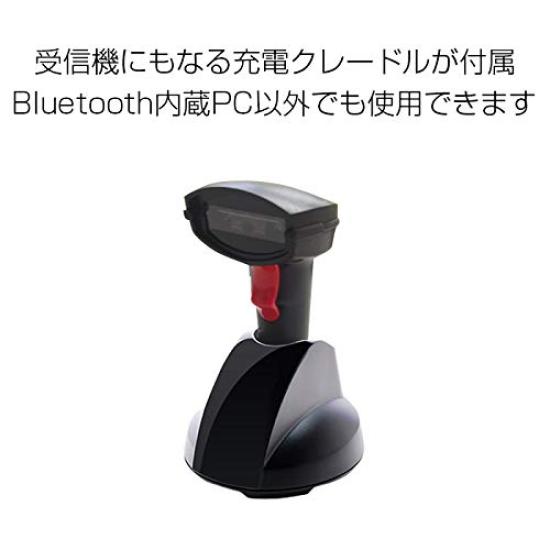

Supports QR code sending! QR codes containing Japanese characters can be sent without a driver (Compatible with Shift-JIS or UTF-8) (Windows OS only)! It also connects to phones, iPads, Android devices, and even Bluetooth-enabled Windows PCs! The cradle (stand) can be used not only for charging but also as a receiver for Windows PCs without built-in Bluetooth.
"Storage mode" that can store barcode data internally and send it to a PC or smartphone terminal. "Out-of-range storage mode" is equipped, which stores and sends data read by the barcode reader when out of range or when communication is disconnected. Data can be stored for approximately 30,000 pieces of data, each about 13 digits long.
It can read barcodes and QR codes displayed on the LCD screen. *Depending on the LCD screen or its film, some codes may not be readable.
Both HID and SPP connections are possible. *For SPP connections, the software must be compatible.
◆Performance:
Light source: 625nm red LED
Reading depth: 300mm @ 20mil/0.5mm, PCS 90%, CODE 39
Scan rate: 120 scans/sec in 1D mode, 60 images/sec in 2D mode
Resolution: 4mil/0.1mm PCS 90% CODE39
Indicators: Beep and LED
Interface: USB (HID or VCOM), Bluetooth (HID/SPP)
◆Dimensions and weight:

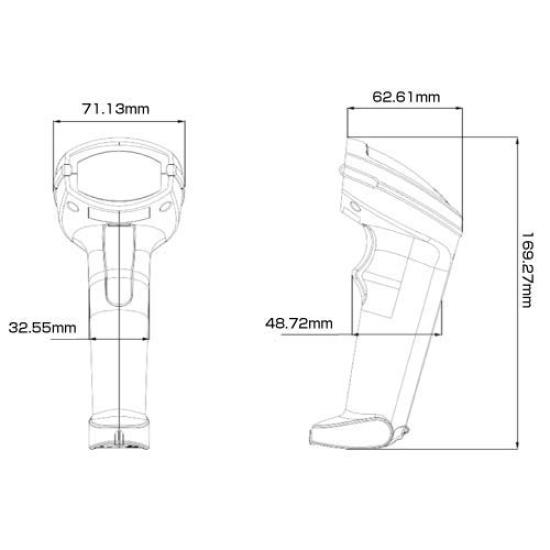

External dimensions (width x height x depth)
71.13 x 62.61 x 169.27mm (scanner)

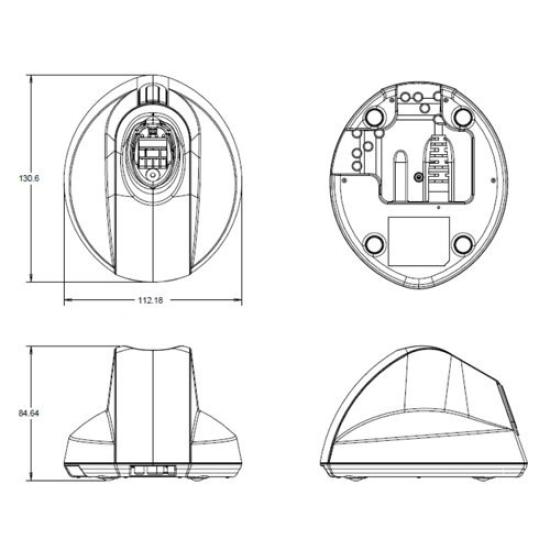

112.18x84.64x130.6mm (cradle)
Weight:
Scanner: Approx. 182 grams (including)
Cradle: Approx. 150g
◆Power:
Input voltage: DC 5V ±5%
Operating current: Scanner 330mA, Cradle 70mA
Standby current: Scanner 310mA, Cradle 55mA, Sleep 6mA
◆Radio characteristics:
Bluetooth model: Supports both Bluetooth 2.1 HID and SPP Class 1
: Lithium-ion 3.7V, 2600mAh
Charging time: Approx. 5 hours
Number of reads: 20,000 scans in continuous reading
Wireless transmission range: 100 meters (line of sight)
◆Others:
Ambient light: 100,000 Lux Max.
Operating temperature: 0°C ~ 50°C
Storage temperature: -20°C to 70°C
Relative humidity: 20% to 95% (non-condensing)
Drop resistance: Dropped from a height of 1.5m
Support barcode (1D): GS1 DataBar, UPC /JAN , ISBN, Code 39, EAN128,Full ASCII, Code128, Inteleave 25, Martrix 25,CODABAR / NW7, Code11, MSI /PLESSEY, Code93,China Postage, Code 32 / Italian Phammacy
(2D): Data Matrix (normal, inverted), PDF417, Micro PDF417, Maxicode, QR Code (normal, inverted), Aztec (normal, inverted), MicroQR code, EAN.UCC composite
Protection: IP42 waterproof and dustproof
[About the easy Japanese QR code sending function (no driver required)]
We support simple (driver-free) transmission of 2-byte characters (Japanese characters such as hiragana, katakana, and kanji) via QR Code.
*Only QR codes created in Shift-JIS or UTF-8 are supported.
In Windows XP to 10, you can send data by simply reading the setting code, without having to run any software.
*Not compatible with operating systems other than Windows.
Note:
The QR code contains control codes or special characters (such as old kanji characters),
If the data is more than 100 characters, we may not be able to process it.
Depending on the input software (Word, etc.) or the method of creating the QR code, it may not be compatible.
By using the dedicated software (distributed free of charge on our website "POS Shopping Store")
It is also compatible with input software that is not supported (Word, etc.).
Compatible OS (included software): Windows XP (SP3 or later), Vista, 7, 8, 8.1, 10
*The software must be configured to run in the background and when it starts up on Windows.
