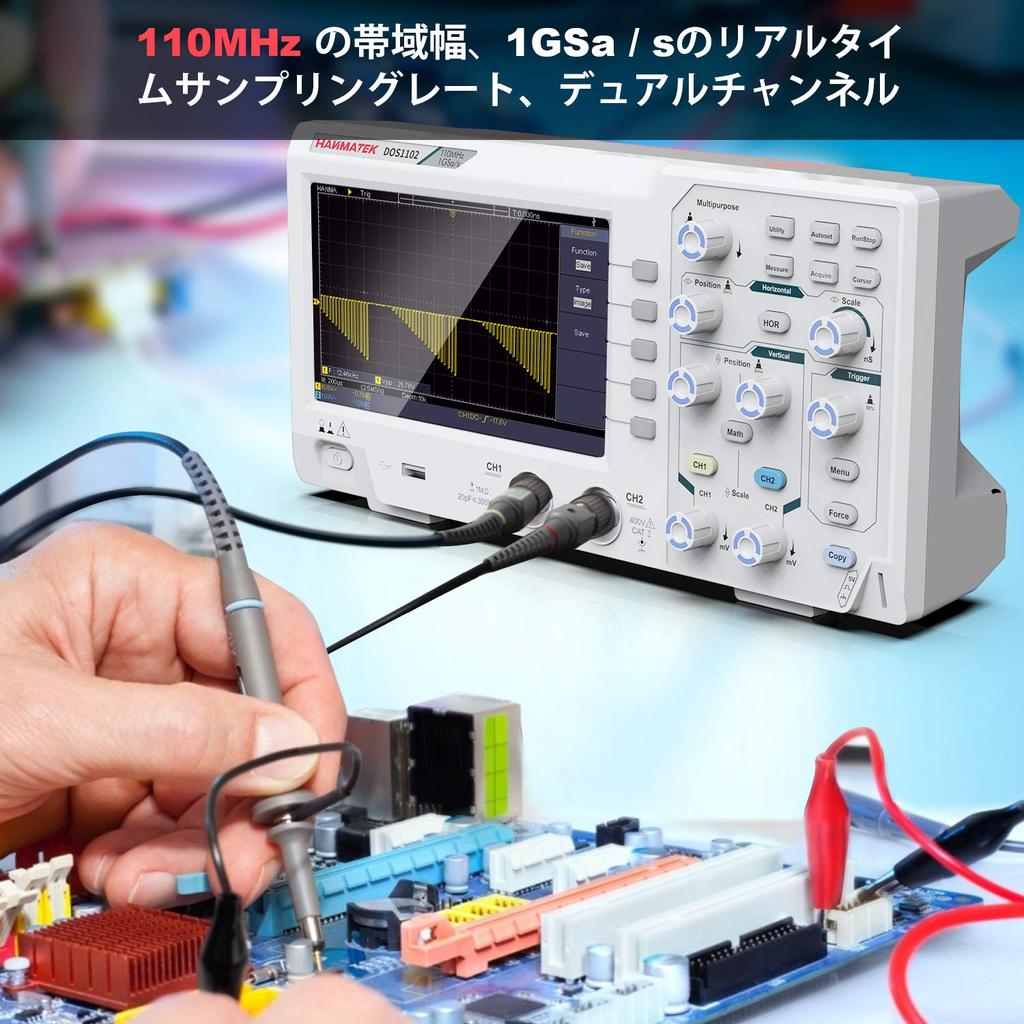

Hanmatek Digital Oscilloscope Portable professional 110 MHz 2 screen 7 sampling rate DOS1102 oscilloscope, bandwidth, channels, inch/18 cm, TFT-LCD

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ★ 1: 100 MHz bandwidth, 1 GS/s real-time sampling rate, 2 channels, 2 ns/Div ~ 1000s/Div time base range; 5 mV/div~5 V/div vertical scale, storage depth (recording length of each acquired waveform) is more than 20K sampling points. One or more stores Store 16 groups of waveforms, U disk storage function, USB device, host interface. ★ 2: 7 inch TFT LCD screen (true color), 65535 colors, resolution 800 x 480 pixels. Supports cursor measurement. There are four cursor modes: voltage difference (△V), time difference (△T), time difference and voltage difference (△V), and automatic cursor. ★ 3: With auto-ranging function, supports horizontal, vertical, single waveform/multiple waveform tracking. Probe attenuation multiple: 1X, 10X, 100X, 1000X. ★ 4: Built-in 6-digit hardware frequency meter, capable of measuring 2Hz~20MHz; with current measurement function, measurement range: 100.0mA/V ~ 1kA/V; with U disk storage function; USB device and host interface; host software download address: tinyurl dot com/2peldgne; ★ 5: Equipped with 30 types of automatic measurement functions, customizable measurement menus Supports waveform capture function, LABVIEW communication, supports secondary development, and complies with SCPI specifications. DC power supply. ★ 1: 100 MHz bandwidth, 1 GS/s real-time sampling rate, 2 channels, 2 ns/Div ~ 1000s/Div time base range; 5 mV/div~5 V/div vertical scale, storage depth (recording length of each acquired waveform) is more than 20K sampling points. One or more stores Store 16 groups of waveforms, U disk storage function, USB device, host interface.
