Tamiya Fun Craft Series No. 189 Mini Motor Low-Speed Gearbox, 4-Speed, 70189

[Product Infomation]

Brand : TAMIYA Category : Hobby Materials : Plastic

[Product Description]

Product Model Number: 70189-000 Product Dimensions: 3.05 x 10.67 x 15.75 cm Product Weight: 68.04 g

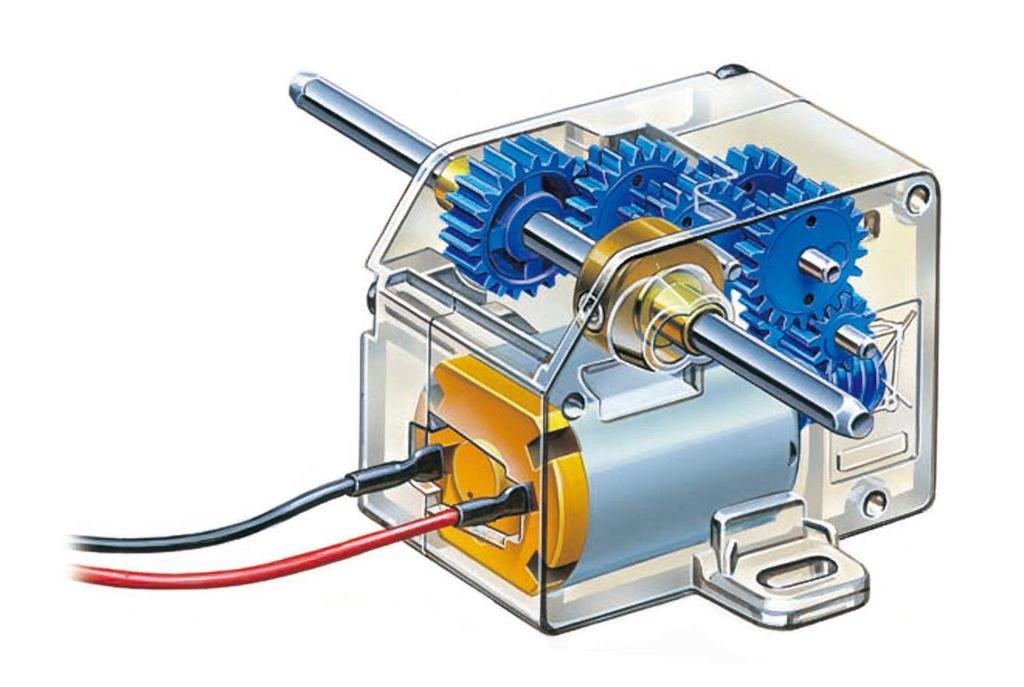

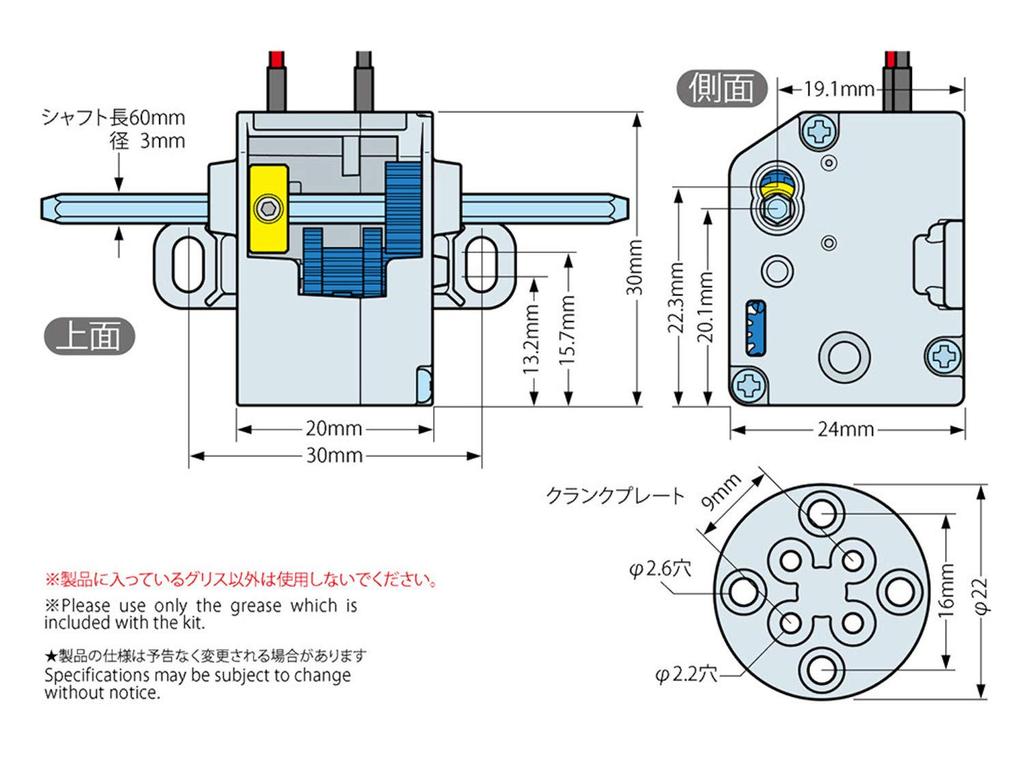

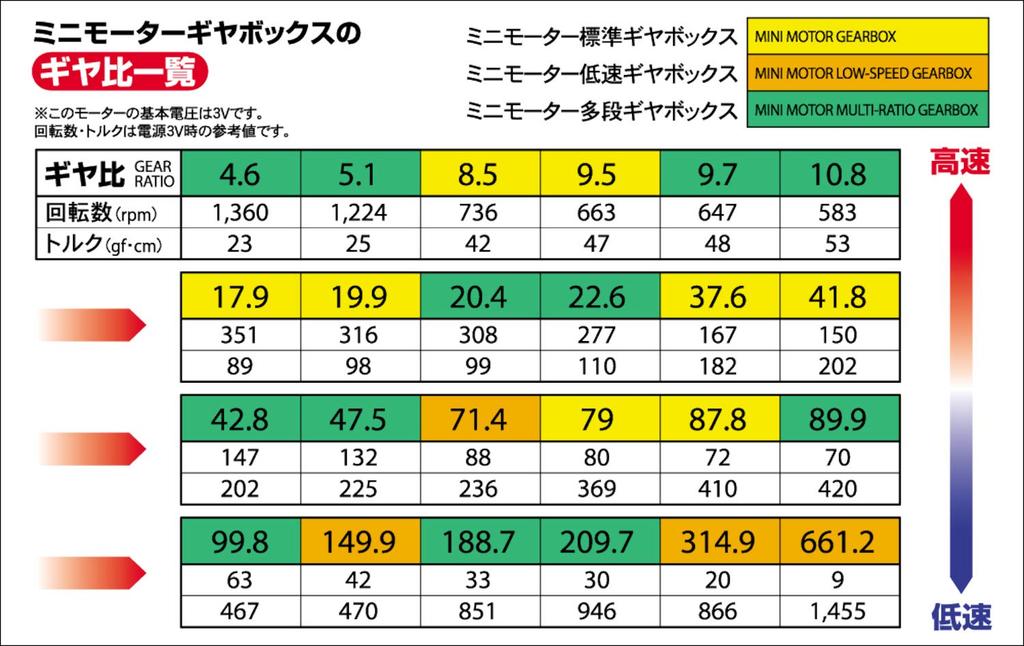

This compact gearbox uses a mini motor and can be mounted on 1/35 scale tanks as well as 1/48 scale heavy and medium tanks. Its low power consumption and low noise make it ideal for a wide range of applications, including R/C conversions, sensor-based projects, and robotics. The low-speed gearbox features a slow speed thanks to a large reduction ratio using a worm gear. Four gear ratios are available: 71.4:1, 149.9:1, 314.9:1, and 661.2:1. The case and gears are made of high-precision plastic, while the 3mm hex output shaft is made of durable metal. It also includes a crank plate for added dynamic range. The gear case features a clear finish for a mechanical look. The gearbox measures approximately 20mm wide, 24mm high, and 30mm long. *The base voltage of this motor is 3V.
